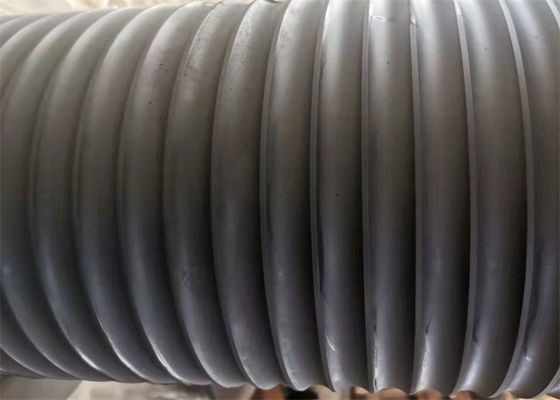

Q355b Grooved Cable Drum Multi Layer Winding Not Disorderly Winding Lebus

Q355b Grooved Cable Drum Multi Layer Winding Not Disorderly Winding Lebus
Q355b Grooved Cable Drum Multi Layer Winding Not Disorderly Winding Lebus Q355b Grooved Cable Drum Multi Layer Winding Not Disorderly Winding Lebus Q355b Grooved Cable Drum Multi Layer Winding Not Disorderly Winding Lebus

Large Image :  Q355b Grooved Cable Drum Multi Layer Winding Not Disorderly Winding Lebus

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Groove Multi Cable Drum Material: Q355B Steel
Groove Type: Lebus Grooves Product Type: Lebus Drum
Connection Type With Drum: Bolted Dia.of Rope: 4~80mm
Layers: 3~60 Layers Grooving Machining: CNC Machining
Dia. Of Drum: 500mm Drum Quatity: Four Or More
High Light:

multi layer winding grooved cable drum

,

q355b grooved cable drum

,

not disorderly winding grooved winch drum

Multi-Layer Winding Not Disorderly Winding LEBUS Groove Multi Cable Drum



Multi drum winch

In order to meet the requirements of drilling technology and transportation, the winch is usually designed as a multi-shaft drive and separate transportation, which not only makes the system complex, but also increases the cost and installation workload. To this end, the transmission scheme of the winch, power input mode and the structure of the winch frame have done pioneering work, my company designed a multi drums winch. The winch is mainly composed of base, winch frame, roller shaft, sand drum shaft, shaft drive boxes, disc brake, crash-proof crown device, main brake mechanism and automatic driller, etc, and power shift between the input shaft and the shaft adopts mechanical transmission, drive shaft and roller shifting between adopts pneumatic clutch to shift, with four are blocked, reverse gear. Finite element software was used to simulate and analyze the drum shaft and check its strength and stiffness. The analysis and check results show that the design of the drum and frame of the winch is reasonable and meets the practical work requirements.



LEBUS DRUMS

In the winch, the wire rope plays an irreplaceable effect, so how can we do to avoid the phenomenon of wire rope there is disorderly rope? As a winch, it also makes some methods to avoid wire rope chaos, its drum has more obvious groove, double drum winch, these grooves can be better fixed wire rope.



Operation method

First, the wire rope is not sorted out before hoisting, and the wire rope is checked by itself, and the wire rope with a higher proportion of broken rope should be replaced in time. Second, do a good job of fixing the winch, the base of the winch is unstable, and the winch is prone to displacement when lifting. Show ropes. Third, when lifting, adhere to the wire rope and drum into a 90 degree Angle. The above is to avoid the method of small winch wire rope chaos. There are many parts on the winch. The effect of different parts is different, and the fault response method will be different



Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
The LeBus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.



Required Parameters

1.Wire rope diameter or cable diameter(mm)
2.Inner diameter D1(mm)
3.Outer diameter D2(mm)
4.Width between the flanges L(mm)
5.Rope capacity(m)
6.Material:
7.Rotation direction:left or right?



types of structure

Winch drum with groove mainly has the following three types of structure

1, splicing type. In this structure, the rope groove body is first made into 4 pieces of tile, and then the 4 pieces of tile groove and light drum body are spliced and welded together

2, integral, is the rope groove is directly located on the drum body, rope groove and drum body as one.

3. Plug welding type, make the rope groove into a cylinder body, and then cut it into 2 pieces of tiles, and plug welding on the drum body.



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



Product Application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc


Our company

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment
