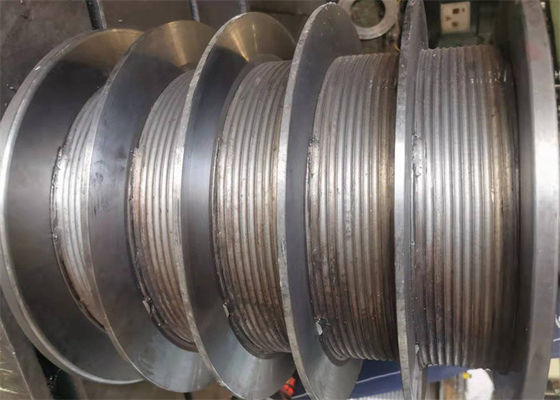

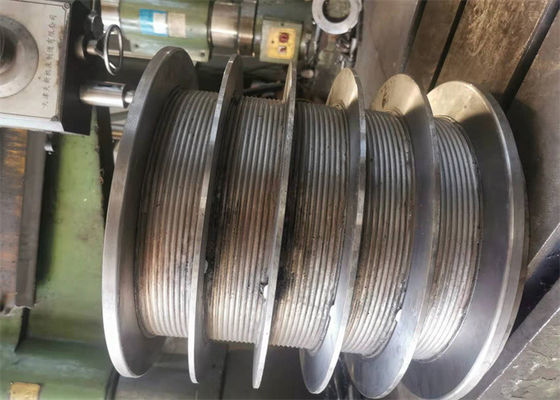

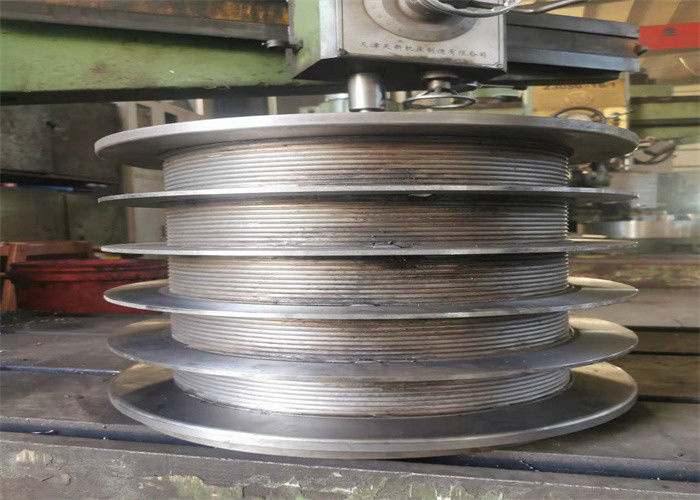

Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved

Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved
Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved

Large Image :  Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Multiple Lebus Grooved Drums Drum Quantity: Four Or More
Drum Design: Lebus Grooved Material: Q355b
Application Range: Hoist Or Crane Certificate: CCS
Rope Capacity: 560mm Rope Diameter: 25mm
Quality Assurance: 1year The Connection Method: Welding
Highlight:

multi layer winding cable winch drum

,

wire rope multiple cable winch drum

,

lebus grooved winch barrel

Multi-Layer Winding Wire Rope Multiple Lebus Grooved Drums For Cable Winch



 overview

Product name multiple lebus grooved drums
Drum Quantity four or more
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M


we saw the need to improve the spooling of wire rope on the Drilling Rigs began trying different methods and eventually created the "LeBus" pattern which is still the best method used today for spooling multiple layers of wire rope evenly and accurately. With LeBus now supplying its products to all industries that need to spool multiple layers of rope, LeBus still remembers where it began and goes above and beyond to support the Oilfield with LeBus Grooving, and much more. To this day LeBus is still used on practically every Drilling Rig and Workover Rig in the world. .

Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center



Technical Parameters
No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000



The structural point of the LEBUS groove

The drum rope groove of drill winch adopts the form of double broken line structure, and its characteristics are diagonal rope groove and straight rope groove appear alternately, thus forming two diagonal rope groove area and two straight rope groove area on the surface of the drum. The so-called inclined rope groove refers to the rope groove that intersects diagonally with the drum bus, and the straight rope groove refers to the rope groove that intersects directly with the drum bus or is parallel to the flange. Diagonal strong groove controls the pitch of rope groove, which accounts for a small proportion in a circle of rope groove. Its structure point can effectively alleviate the problems of extrusion deformation, mutual friction and early wear of wire rope during loading.

The processing and production of the lebus groove can be directly processed on the drum as a whole, and can also be made into a set with the rope groove, and made into a split type, wrapped in the smooth drum when installed, connected with the drum through bolts or welding. The material of folding rope groove barrel can be divided into carbon steel, stainless steel, alloy steel, aluminum or glass fiber, etc. The barrel can be made by sheet rolling or casting.



Double drum winch

In order to meet the requirements of drilling technology and transportation, the winch is usually designed as a multi-shaft drive and separate transportation, which not only makes the system complex, but also increases the cost and installation workload. To this end, the transmission scheme of the winch, power input mode and the structure of the winch frame have done pioneering work, my company designed a multi drums winch. The winch is mainly composed of base, winch frame, roller shaft, sand drum shaft, shaft drive boxes, disc brake, crash-proof crown device, main brake mechanism and automatic driller, etc, and power shift between the input shaft and the shaft adopts mechanical transmission, drive shaft and roller shifting between adopts pneumatic clutch to shift, with four are blocked, reverse gear. Finite element software was used to simulate and analyze the drum shaft and check its strength and stiffness. The analysis and check results show that the design of the drum and frame of the winch is reasonable and meets the practical work requirements.



Features:

1. Our products have the advantages of compact structure, light weight, safe and easy to operate.

2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.

3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.

4. High starting& working efficiency

5. Reliable operation with little noise



Product specifications:

1) Wire rope or cable diameter (mm)
2) The main drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges


Processing equipment:

CNC machining center


Product material:

1. Carbon structural steel: Q235A/B/C/D/E SS400 A36 SM400 St37-2 S235J...
2. Low alloy high strength steel: Q345A/B/C/D/E Q390 Q420 Q460 15GrMo 20GrMo 12GrMoVNi 42GrMo...
3. Alloy structural steel: 20Mn2 40Mn2 15Cr 30Cr 20CrMnMo 20CrNi...
4. Polymer materials, fiber materials and polyamide nylon materials.
5. Stainless steel materials, aluminum materials, etc.
The product material can be selected according to the customer's request



Drawing dimensions



Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 0



Drum features:

Processing Equipment: CNC Machining Center
Rotation Direction Of Grooves: Lefthand
Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Two



Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product Application

1.DRILLING OPERATIONS

2. HOISTING/CRANES

3.OFFSHORE

4. MINING & LOGGING



Required Parameters:
  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?

Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 1Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 2Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 3


Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 4

Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 5

Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 6Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 7Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 8Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 9Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 10Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 11
Multi Layer Winding Cable Winch Drum Wire Rope Multiple Lebus Grooved 12
