Lebus Groove Sleeves Cable Winch Drum For Spooling Multiple Layers Cable

Large Image : Lebus Groove Sleeves Cable Winch Drum For Spooling Multiple Layers Cable

Product Details:

Place of Origin:	Shijiazhuang Hebei China
Brand Name:	LBS
Certification:	CCS
Model Number:	Non-Standard

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	15 to 30 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	150 sets per month

Contact Now

Detailed Product Description

Product Name:	Cabel Winch Drum With Sleeves	Drum Quantity:	Single Or Double
Drum Design:	Lebus Grooved	Material:	Q355b
Application Range:	Hoist Or Crane	Power Source:	Electric
Rope Capacity:	560mm	Rope Diameter:	25mm
Certification:	Ccs	The Connection Method:	Welding Or Bolt
Highlight:	lebus groove sleeves cable winch drum , spooling cable winch drum , multiple layers cable lebus grooved drum

cable winch drum with lebus groove sleeves for spooling multiple layers cable

overview

Product name	Cable winch drum
Drum Quantity	Single Or Double
Drum Design	LBS Groove Or Spiral Groove
Material	Carbon Stainless And Alloy Steels
Size	Customization
Application Range	Construction Mining Terminal operation
Power Source	Electric and hydraulic
Rope Capacity	100~300M

we saw the need to improve the spooling of wire rope on the Drilling Rigs began trying different methods and eventually created the "LeBus" pattern which is still the best method used today for spooling multiple layers of wire rope evenly and accurately. With LeBus now supplying its products to all industries that need to spool multiple layers of rope, LeBus still remembers where it began and goes above and beyond to support the Oilfield with LeBus Grooving, and much more. To this day LeBus is still used on practically every Drilling Rig and Workover Rig in the world. .

Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center

Technical Parameters

No:	Wire diameter(mm)	Pulling Force(KN)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)
1	3~8	3~10	Lefthand,Righthand	>160	<1000
2	10~16	12~20	Lefthand,Righthand	>320	<1000
3	18~24	20~80	Lefthand,Righthand	>480	<1000
4	26~32	100~120	Lefthand,Righthand	>640	<1000
5	34~40	150~200	Lefthand,Righthand	>800	<1000
6	42~50	240~400	Lefthand,Righthand	>1000	<1000

Features:

1. Our products have the advantages of compact structure, light weight, safe and easy to operate.

2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.

3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.

4. High starting& working efficiency

5. Reliable operation with little noise

Product specifications:

1) Wire rope or cable diameter (mm)
2) The main drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges

Processing equipment:

CNC machining center

Product material:

1. Carbon structural steel: Q235A/B/C/D/E SS400 A36 SM400 St37-2 S235J...
2. Low alloy high strength steel: Q345A/B/C/D/E Q390 Q420 Q460 15GrMo 20GrMo 12GrMoVNi 42GrMo...
3. Alloy structural steel: 20Mn2 40Mn2 15Cr 30Cr 20CrMnMo 20CrNi...
4. Polymer materials, fiber materials and polyamide nylon materials.
5. Stainless steel materials, aluminum materials, etc.
The product material can be selected according to the customer's request

Drawing dimensions

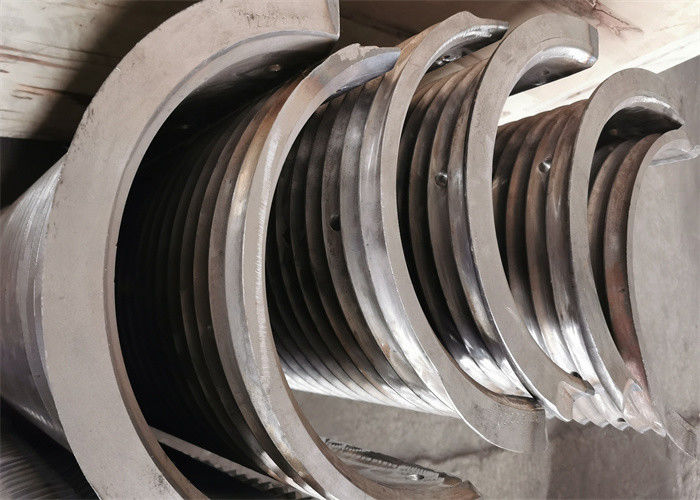

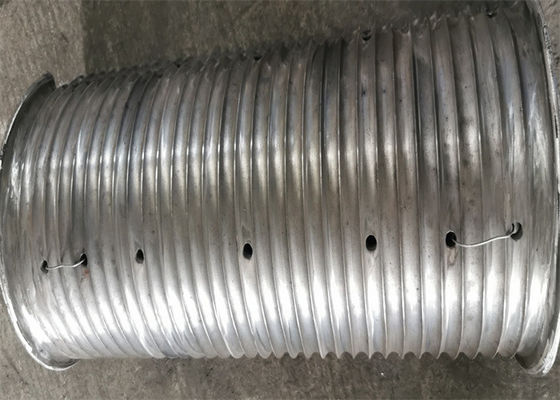

Lebus Groove Sleeves Cable Winch Drum For Spooling Multiple Layers Cable 0

Drum features:

Processing Equipment: CNC Machining Center
Rotation Direction Of Grooves: Lefthand
Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Two

Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Product Application

1.DRILLING OPERATIONS

2. HOISTING/CRANES

3.OFFSHORE

4. MINING & LOGGING

Required Parameters:

Wire rope diameter or cable diameter(mm)
Inner diameter D1(mm)
Outer diameter D2(mm)
Width between the flanges L(mm)
Rope capacity(m)
Material:
Rotation direction:left or right?

Lebus Groove Sleeves Cable Winch Drum For Spooling Multiple Layers Cable 4

Lebus Groove Sleeves Cable Winch Drum For Spooling Multiple Layers Cable 5

Lebus Groove Sleeves Cable Winch Drum For Spooling Multiple Layers Cable 6
