Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves

Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves

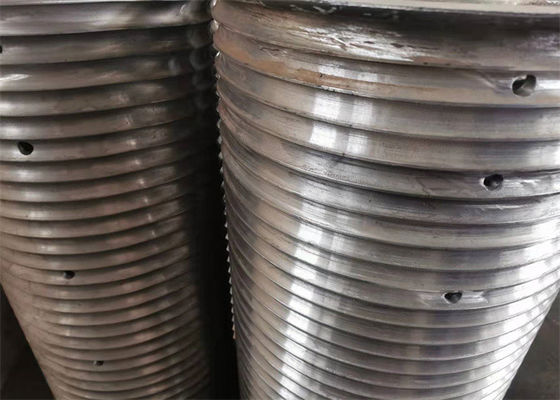

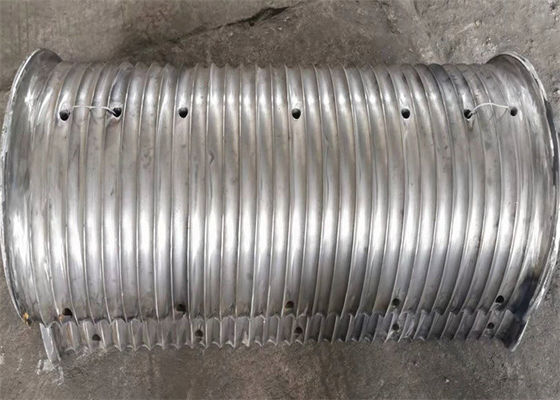

Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves

Large Image :  Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Lifting Crane And Pulling Equipment Cable Winch Drum Drum Quantity: Single Or Double
Drum Design: Lebus Grooved Material: Q355b
Application Range: Lifting Or Pulling Equipment Power Source: Electric
Rope Capacity: 550mm Rope Diameter: 10mm
Certification: Ccs The Connection Method: Welding Or Bolt
Highlight:

lifting crane cable winch drum

,

pulling equipment cable winch drum

,

lebus sleeves cable winch drum

Lifting Crane And Pulling Equipmen Cable Winch Drum With Lebus Sleeves



Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center



Technical  overview

Product name Lifting Crane And Pulling Equipment Cable Winch Drum
Drum Quantity Single Or Double
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M


Parameters
No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000



Features:

1. Our products have the advantages of compact structure, light weight, safe and easy to operate.

2. Our products are used for general lifting, hauling and other works in marine deck machinery, harbor, petroleum, drill machine, engineering machinery, mining, geological exploration and construction machinery and etc.

3. Products are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment”.

4. High starting& working efficiency

5. Reliable operation with little noise




Product specifications:

1) Wire rope or cable diameter (mm)
2) The main drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges


Processing equipment:

CNC machining center


Product material:

1. Carbon structural steel: Q235A/B/C/D/E SS400 A36 SM400 St37-2 S235J...
2. Low alloy high strength steel: Q345A/B/C/D/E Q390 Q420 Q460 15GrMo 20GrMo 12GrMoVNi 42GrMo...
3. Alloy structural steel: 20Mn2 40Mn2 15Cr 30Cr 20CrMnMo 20CrNi...
4. Polymer materials, fiber materials and polyamide nylon materials.
5. Stainless steel materials, aluminum materials, etc.
The product material can be selected according to the customer's request



Drawing dimensions



Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 0



Drum features:

Processing Equipment: CNC Machining Center
Rotation Direction Of Grooves: Lefthand
Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Two



Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

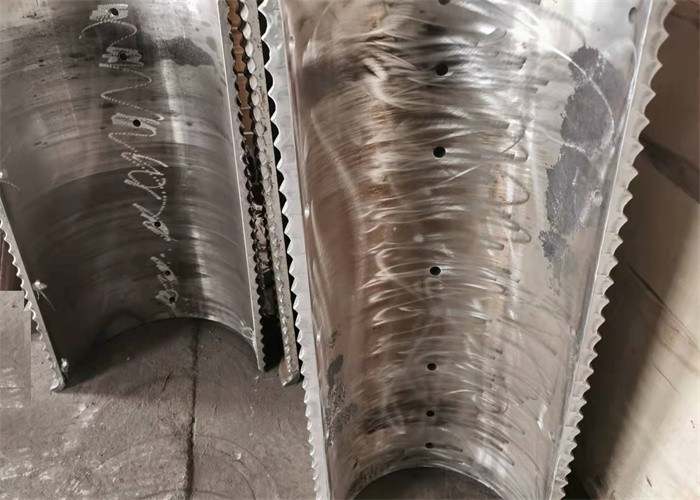

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product Application

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch

2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch

3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc

4. The building machinery: Building wipe wall winch, Winding hoist, Windlass

5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc

6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

The LeBus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.



Required Parameters:
  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?


Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 1Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 2Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 3

Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 4

Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 5

Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 6Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 3Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 8Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 9Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 10Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 11
Lifting Crane And Pulling Equipment Cable Winch Drum With Lebus Sleeves 12

Contact Details
Hebei Junke Machinery Technology Co.,Ltd

Contact Person: Miss. Wang

Tel: 86+13315131859

Fax: 86-311-80761996

Send your inquiry directly to us (0 / 3000)
