Heavy Duty Tower Crane Parts Cable Winch Drum 40mm Wire Rope Lbs Grooved

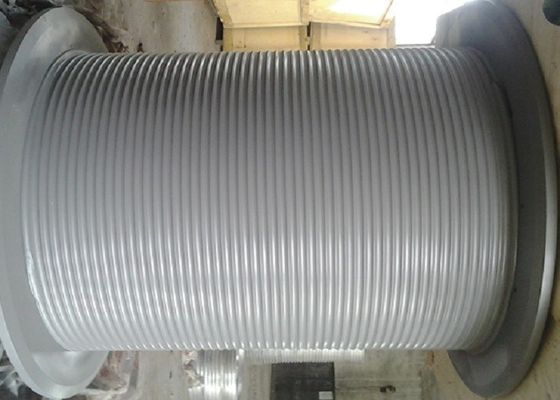

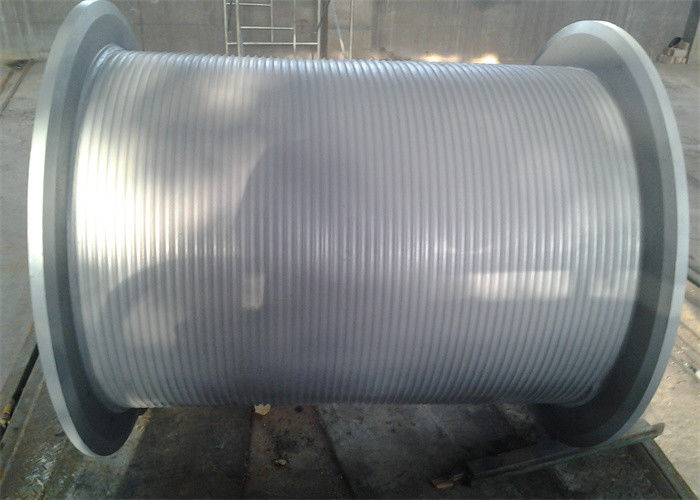

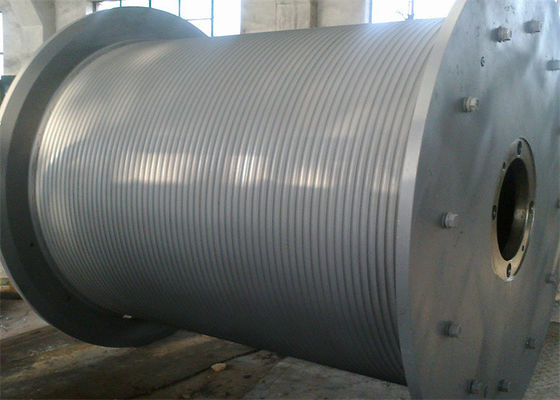

Large Image : Heavy Duty Tower Crane Parts Cable Winch Drum 40mm Wire Rope Lbs Grooved

Product Details:

Place of Origin:	China
Brand Name:	LBS
Certification:	CCS
Model Number:	LBS2021089

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	200usd
Packaging Details:	pallet
Delivery Time:	within 15word days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	3000sets per month

Contact Now

Detailed Product Description

Name:	Tower Crane Drum	Material:	Alloy Steel
Brand:	LBS	DIA.:	1200MM
Country Of Origin:	China	Warranty:	12 Months
Used:	Tower Crane	Rope Diameter:	40mm
Grooved Type:	LBS Grooved	Certificate:	CCS
High Light:	lbs grooved cable winch drum , 40mm cable winch drum , 40mm grooved wire rope drum

Heavey Duty Tower Crane Parts 40mm Wire Rope LBS Grooved Winch Drum

cable winch for marine research ship is one of the equipment necessary for marine research engineering,winch water robot with cablw for collecting ,releasting and wowing underwater robot as well as transmitting information collected by the robot through cable ,as ocean engineering continuously extends to the deep sea and open sea , new technologies, process and materials are increasingly applied to cable winch for ship to meet new demands ,the paper introduces and analyzes transmission principles ,structure and key technologies of the cable winch for russian marine research ship ,which can provide reference for designing and applying our marine cable winch ,further boosting marine research and ocean engineering in China.

Grooved Winch Drum

Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Processing type :

Lebus grooved drum
The groove is cut directly into the body of the drum.(according to customer‘s requirements.
The flanges are either welded or screw-bolted.)
Split-lebus grooved sleeves (shell )
The whole lebus grooved drum is divided into the upper and lower parts,which we call them lebus split-sleeves. The sleeves are available a smooth drum or helical drums.

LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.

Some parameters:

Rope diameter(mm)	5 12 24 32 42 58
Grooved drum diameter(mm)	80 150 300 500 800 1100
Width between the flanges flanges(mm)	150 280 300 460 750 1000
Rotation direction	L R R L L R
Number of layers	3 2 4 6 8 8
Rope capacity(m)	18 19 43 127 360 1800

Our equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.

Why choose us

Professional engineer team and sales team
We have a professional team of engineers and sales teams, most of which have more than 10 jobs to experience
Imported equipment
We have the world's advanced production equipment
Fast lead time
Small and medium orders can be delivered within 20 days, large orders 30-35 days
One-stop service
We provide production operations and assembly services
High quality and factory price
We have ISO9001 international quality management system, as well as China production cost control experience, we can help you save 20%~30% of the production cost.
Good after-sales service
Our after-sales service can be up to three years, customers have more than 15 years of cooperation with us, and received consistent praise
