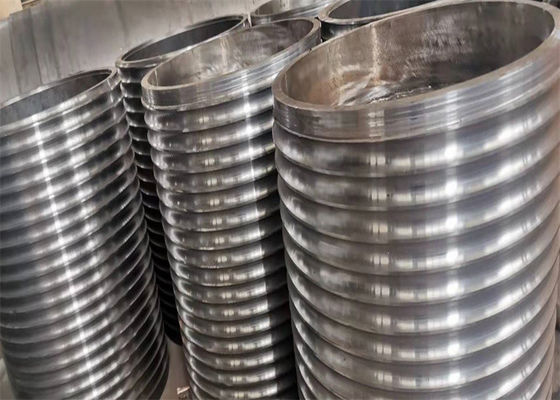

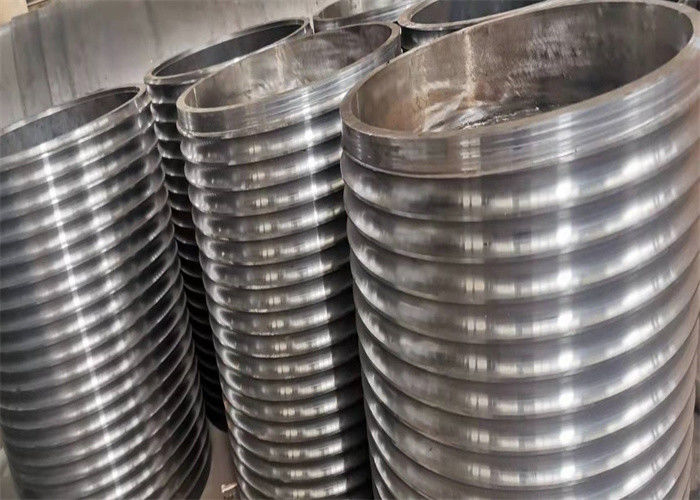

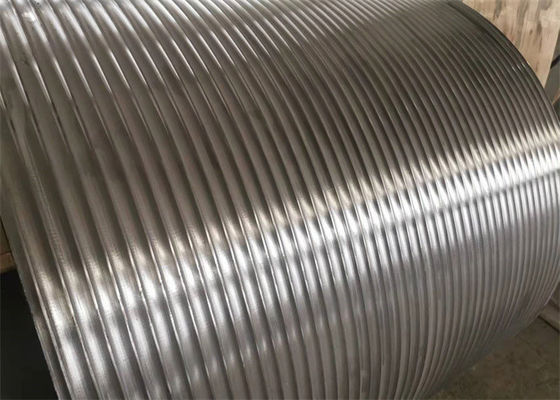

Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough

Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough
Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough

Large Image :  Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Cabel Winch Drum Drum Quantity: Single
Drum Design: LBS Groove Or Spiral Groove Material: Carbon Steels
Size: Customization Application Range: Construction Mining Terminal Operation
Power Source: Electric Hydraulic Rope Capacity: 100~300M
Rope Diameter: 6mm-60mm Surface Status: Hot Spray Zinc Or Spray Paint
High Light:

semi finished cable winch drum

,

hot dip galvanized cable winch drum

,

carbon steel lebus drum

Semi-Finished Hot Dip Galvanized Carbon Steel LEBUS Trough Cable Winch Drum



overview
Cable winch is an essential part of the construction products such as underground cable lines and vertical rods, which can be conveniently used in various complex environments for smooth erection of wire hanging, pulling or tightening.
Cable winch is composed of drum, gearbox, diesel engine or gasoline engine and base.

Product name Cable winch drum
Drum Quantity Single Or Double
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M



Principle of mobile reamer  grinding:
the reamer grinding groove is directly connected to the gasoline engine or car with the wire rope and the traction groove. Diesel engine, motor for power, through the transmission gear box to meet the speed requirements, the whole machine adopts steel structure, smooth and convenient movement.

Application:
it is suitable for site construction of traction and hoisting machinery equipment and tower building, traction line and cable laying of electric power, post and telecommunication line group.



Features of winch

Winch has the following characteristics: high versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer, is widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat drag, but also can be used as the supporting equipment of modern electronic control automatic operation line. There are 0.5 to 350 tons, divided into fast and slow two kinds. Which is higher than 20 tons for the large tonnage winch, winch can be used alone, can also be used as lifting, road construction and mine lifting machinery components, because of simple operation, large rope, easy to move and widely used. The main technical indicators of winch are rated load, support load, rope speed, rope capacity and so on.



Use of winch

The main uses of the winch are as follows: first, as lifting equipment, it is used for mine lifting, sinking lifting and suspension (lifting) sinking equipment and facilities, that is, along the shaft lifting ore, waste (gangue) stone, lifting personnel, lowering materials, tools and equipment; Second, it is used as transportation equipment for underground scheduling and transportation of ore (harvester), stope rake ore (slag) or filling, removing columns, etc.



Drawing dimensions



Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough 0



Drum features:

Processing Equipment: CNC Machining Center

Rotation Direction Of Grooves: Lefthand

Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Two



Product Equiment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment​Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough 1Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough 2Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough 3
Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough 4Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough 5


Semi Finished Hot Dip Galvanized Cable Winch Drum Carbon Steel Lebus Trough 6
