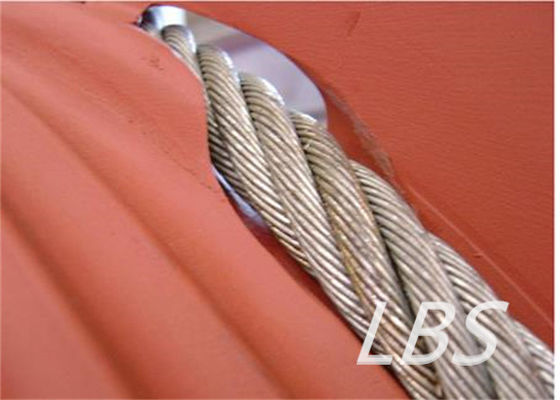

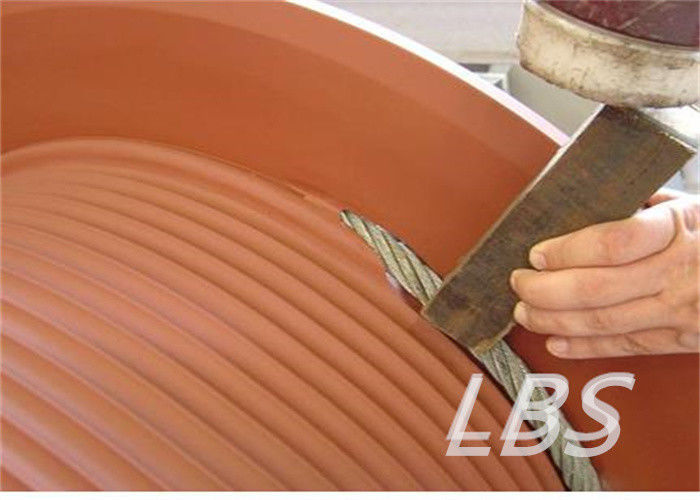

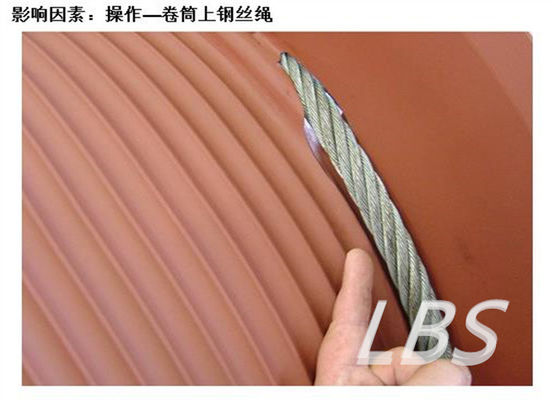

Lbs Grooved Winch Drum Regular Rope Arrangement No Disorderly Rope

regular rope arrangement no disorderly rope LBS grooved winch drum

overview

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.

types of structure

Winch drum with groove mainly has the following three types of structure
1, splicing type. In this structure, the rope groove body is first made into 4 pieces of tile, and then the 4 pieces of tile groove and light drum body are spliced and welded together
2, integral, is the rope groove is directly located on the drum body, rope groove and drum body as one.
3. Plug welding type, make the rope groove into a cylinder body, and then cut it into 2 pieces of tiles, and plug welding on the drum body.

our production of double wire groove tube, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation.

In the winch, the wire rope plays an irreplaceable effect, so how can we do to avoid the phenomenon of wire rope there is disorderly rope? As a winch, it also makes some methods to avoid wire rope chaos, its drum has more obvious groove, double drum winch, these grooves can be better fixed wire rope.

Hoist has the advantages of large carrying capacity, stable and reliable lifting and wide range of running speed, application, but due to the lack of awareness and effective use of hoist safety, often cause production accidents.
The hoisting machine is not fixed firmly and the ground anchor is not set firmly, resulting in the displacement and overturning of the hoisting machine.
There is no protective device on the drum to prevent the wire rope slippage or the protective device is set up unreasonable and unreliable, resulting in the wire rope from the winch.
The end of the wire rope is not fixed or fixed to the requirements, resulting in the wire rope falling off.
The hoist brake is out of position.
The shaft fatigue fracture is caused by the inaccurate positioning of the rope drum shaft end.
