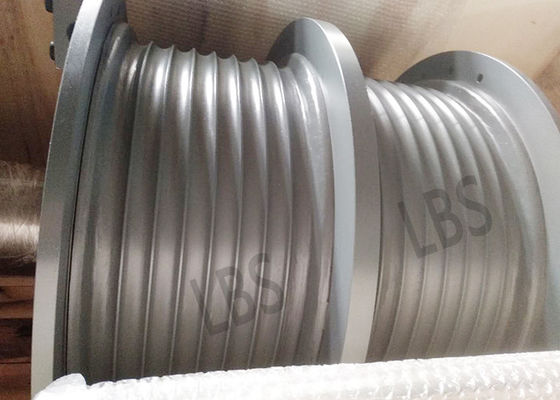

2 Speed Hot Dip Galvanized Grooved Winch Drum For Wash Wall Machine

2 Speed Hot Dip Galvanized Grooved Winch Drum For Wash Wall Machine
2 Speed Hot Dip Galvanized Grooved Winch Drum For Wash Wall Machine 2 Speed Hot Dip Galvanized Grooved Winch Drum For Wash Wall Machine

Large Image :  2 Speed Hot Dip Galvanized Grooved Winch Drum For Wash Wall Machine

Product Details:
Place of Origin: China
Brand Name: LBS
Certification: CCS
Model Number: LBS2021089
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200usd
Packaging Details: pallet
Delivery Time: within 15work days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 3000sets per month
Detailed Product Description
Name: Double Winch Drum Material: Hot Dip Galvanized Steel
Brand: LBS DIA.: 20-1500MM
Country Of Origin: Hebei,China Warranty: 1year
Used: Wash Wall Machine Rope Diameter: 45mm
Grooved Type: LBS Grooved Certificate: CCS
High Light:

2 speed grooved winch drum


hot dip galvanized grooved winch drum


wash wall machine grooved winch drum

2 Speed Hot Dip Galvanized LBS Grooved Double Drum For Wash Wall Machine



Product name Double drum
Drum Quantity Double
Drum Design LBS Groove
Size 10-500mm
Application Range  Mining
Power Source Electric and hydraulic
Rope Capacity 500M


Advantages of LEBUS GROOVE

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.


Double drum winch

In order to meet the requirements of , the winch is usually designed as a multi-shaft drive and separate transportation, which not only makes the system complex, but also increases the cost and installation workload. To this end, the transmission scheme of the winch, power input mode and the structure of the winch frame have done pioneering work, my company designed a multi drums winch. The winch is mainly composed of base, winch frame, roller shaft, sand drum shaft, shaft drive boxes, disc brake, crash-proof crown device, main brake mechanism and automatic driller, etc, and power shift between the input shaft and the shaft adopts mechanical transmission, drive shaft and roller shifting between adopts pneumatic clutch to shift, with four are blocked, reverse gear. Finite element software was used to simulate and analyze the drum shaft and check its strength and stiffness. The analysis and check results show that the design of the drum and frame of the winch is reasonable and meets the practical work requirements.



In the winch, the wire rope plays an irreplaceable effect, so how can we do to avoid the phenomenon of wire rope there is disorderly rope? As a winch, it also makes some methods to avoid wire rope chaos, its drum has more obvious groove, double drum winch, these grooves can be better fixed wire rope.


Successful cases

our production of double wire groove tube, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation.


LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.
Some parameters:
Rope diameter(mm)  5 12 24 32 42 58
Grooved drum diameter(mm)  80 150 300 500 800 1100
Width between the flanges flanges(mm) 150 280 300 460 750 1000
Rotation direction  L R R L L R
Number of layers 3 2 4 6 8 8
Rope capacity(m)  18 19 43 127 360 1800


Our equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.

Required Parameters:

  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?

Why choose us

Why choose us
Professional engineer team and sales team
We have a professional team of engineers and sales teams, most of which have more than 10 jobs to experience
Imported equipment
We have the world's advanced production equipment
Fast lead time
Small and medium orders can be delivered within 20 days, large orders 30-35 days
One-stop service
We provide production operations and assembly services
High quality and factory price
We have ISO9001 international quality management system, as well as China production cost control experience, we can help you save 20%~30% of the production cost.
Good after-sales service
Our after-sales service can be up to three years, customers have more than 15 years of cooperation with us, and received consistent praise
