Q355b Material Crane Spool With Lbs Grooved Sleeves For Multilayer Spooling

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

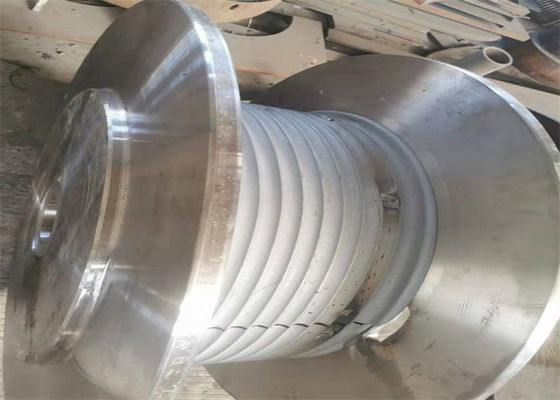

Q355b Material Crane Spool With Lbs Grooved Sleeves For Multilayer Spooling

Q355b Material Crane Spool With Lbs Grooved Sleeves For Multilayer Spooling
Q355b Material Crane Spool With Lbs Grooved Sleeves For Multilayer Spooling Q355b Material Crane Spool With Lbs Grooved Sleeves For Multilayer Spooling Q355b Material Crane Spool With Lbs Grooved Sleeves For Multilayer Spooling

Large Image :  Q355b Material Crane Spool With Lbs Grooved Sleeves For Multilayer Spooling

Product Details:
Place of Origin: China
Brand Name: LBS
Certification: CCS
Model Number: LBS2021089
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200usd
Packaging Details: pallet
Delivery Time: within 15word days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 3000sets per month
Detailed Product Description
Name: Grooved Winch Drum Material: Alloy Steel
Brand: LBS DIA.: 10-1500MM
Country Of Origin: Hebei China Warranty: 13 Months
Used: Tower Crane Rope Diameter: 2-80mm
Grooved Type: LBS Grooved Certificate: ISO
High Light:

q355b crane spool

,

lbs grooved sleeves crane spool

,

multilayer spooling crane spool

Q355B Materail Crane spool with LBS Grooved Sleeves For Multilayer Spooling



overview

Product name Grooved winch drum
Drum Quantity Single
Drum Design LBS Groove
Material Carbon Stainless
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 500M





Grooved Winch Drum

Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center


LEBUS DRUMS

In the winch, the wire rope plays an irreplaceable effect, so how can we do to avoid the phenomenon of wire rope there is disorderly rope? As a winch, it also makes some methods to avoid wire rope chaos, its drum has more obvious groove, double drum winch, these grooves can be better fixed wire rope.



LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.

Some parameters:
Rope diameter(mm)  5 12 24 32 42 58
Grooved drum diameter(mm)  80 150 300 500 800 1100
Width between the flanges flanges(mm) 150 280 300 460 750 1000
Rotation direction  L R R L L R
Number of layers 3 2 4 6 8 8
Rope capacity(m)  18 19 43 127 360 1800



Our equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.


Required Parameters:

  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?
  •

FAQ

Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or paypal.

Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.

Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are certification company, and we support payment terms like L/C, Escrow, to ensure your safety.

Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!

Q5: Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.

Q6. how long is the machine making time?
--- For small grooved drum sleeves , which making time is about 5-7 days after receiving your deposit.
--- For some big size grooved drum sleeves , which making time is about 10-15 days after receiving your deposit.



Company introduction

Our company mainly serves lifting machinery, Marine machinery, petroleum machinery, water conservancy machinery, construction machinery and other industries. The main products are oil drilling machine, workover machine, well machine, drum of oil truck and winch winch (main barrel adopts libasi double folding line groove) and oil equipment accessories, my factory has more than ten years of production experience, to solve the rope in the process of winding rope, rope biting major problems.
