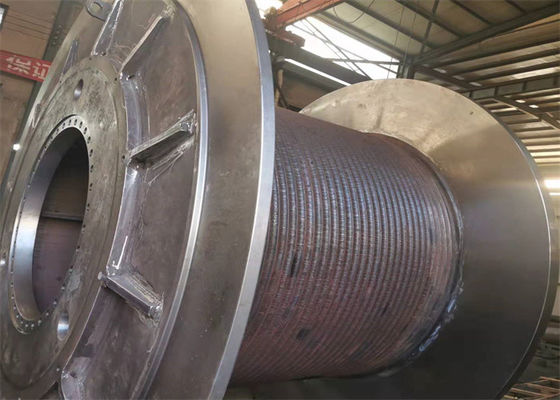

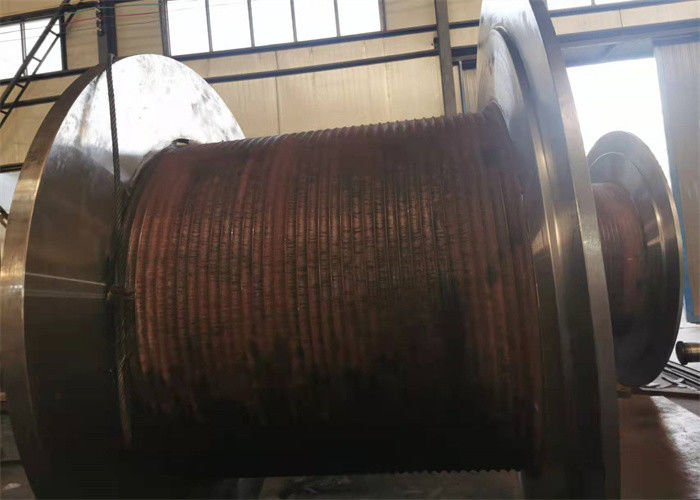

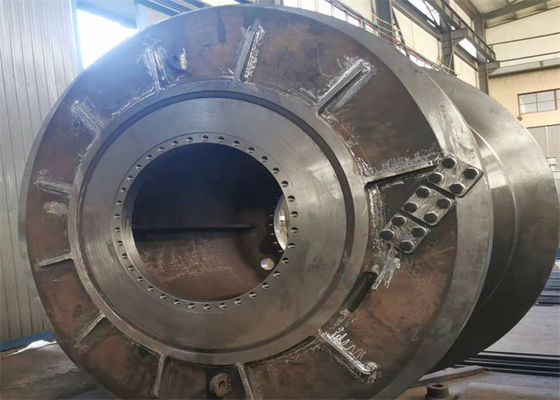

1200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material

1200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material
1200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material 1200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material 1200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material

Large Image :  1200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material

Product Details:
Place of Origin: China
Brand Name: LBS
Certification: CCS
Model Number: LBS2021089
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200usd
Packaging Details: pallet
Delivery Time: within 15word days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 3000sets per month
Detailed Product Description
Name: Grooved Winch Drum Material: Cable Steel Q335B
Brand: LBS DIA.: 2-1500MM
Country Of Origin: China Warranty: 1year
Used: Tower Crane Rope Diameter: 45mm
Grooved Type: LBS Grooved Certificate: CCS
Highlight:

1200mm diameter grooved cable drum

,

cylinder grooved cable drum

,

cable steel q335b grooved winch drum

Tower Crane Drum 1500mm Large Diameter Cable Steel Metaril LBS Grooved Winch Drum



overview

Product name Cable winch drum
Drum Quantity Single
Drum Design LBS Groove
Material Carbon Stainless Q355B
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 500M






Grooved Winch Drum

Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center


Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.

Some parameters:
Rope diameter(mm)  5 12 24 32 42 58
Grooved drum diameter(mm)  80 150 300 500 800 1100
Width between the flanges flanges(mm) 150 280 300 460 750 1000
Rotation direction  L R R L L R
Number of layers 3 2 4 6 8 8
Rope capacity(m)  18 19 43 127 360 1800



Our equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.


Required Parameters:

  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?
  •

Why choose us

Why choose us
Professional engineer team and sales team
We have a professional team of engineers and sales teams, most of which have more than 10 jobs to experience
Imported equipment
We have the world's advanced production equipment
Fast lead time
Small and medium orders can be delivered within 20 days, large orders 30-35 days
One-stop service
We provide production operations and assembly services
High quality and factory price
We have ISO9001 international quality management system, as well as China production cost control experience, we can help you save 20%~30% of the production cost.
Good after-sales service
Our after-sales service can be up to three years, customers have more than 15 years of cooperation with us, and received consistent praise





1200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material 01200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material 11200mm Diameter Cylinder Lbs Grooved Cable Drum Cable Steel Q335b Material 2
