Lbs Or Sprial Grooved Winch Drum Customized Heavy Duty Marine Equipment Parts

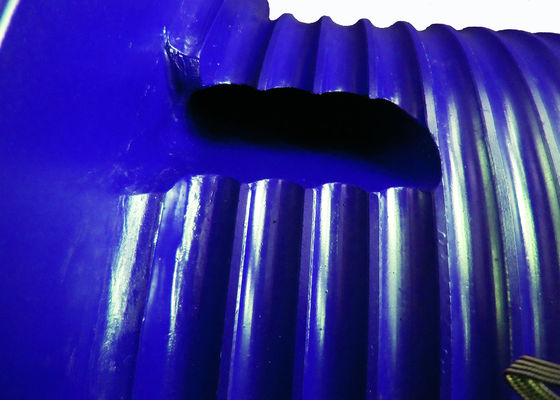

Large Image : Lbs Or Sprial Grooved Winch Drum Customized Heavy Duty Marine Equipment Parts

Product Details:

Place of Origin:	China
Brand Name:	LBS
Certification:	CCS
Model Number:	LBS2021089

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	200usd
Packaging Details:	pallet
Delivery Time:	within 15word days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	3000sets per month

Contact Now

Detailed Product Description

Name:	Grooved Winch Drum	Material:	Alloy Steel
Brand:	LBS	Capacity:	500m
Warranty:	1.5 Year	Drum Diameter:	16-5000mm
Rope Diameter:	2-80mm	Grooved Type:	LBS Grooves Or Spiral Grooves
Certificate:	CCS	Country Of Origin:	Hebei,China
Highlight:	lbs grooved winch drum , sprial grooved winch drum , alloy steel mooring winch drum

Heavy Duty Marine Equipment Parts LBS or Sprial grooved winch drum customized

Company introduction

Our company mainly serves lifting machinery, Marine machinery, petroleum machinery, water conservancy machinery, construction machinery and other industries. The main products are oil drilling machine, workover machine, well machine, drum of oil truck and winch winch (main barrel adopts libasi double folding line groove) and oil equipment accessories, my factory has more than ten years of production experience, to solve the rope in the process of winding rope, rope biting major problems.

Advantages of lbs grooves

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.

overview

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

product information


Hoist speed	0.95-1.27m/s
Rotate speed	720-960 r/min
Rope diameter	3-30mm
Sling type	wire
Direction rotation	left or right
Application	hoist
Parameter	can be designed
Application	mining,oil drilling,or coal mine
Drum diameter	900mm
Drum width	600mm

Advantages :

LEBUS drum has a special key, is designed at the bottom of the reel end flange (end insert) and extension pieces, they guide the wire rope from the first layer to the second layer smoothly.

The lebus groove makes the load evenly distributed between layers, and the practice proves that the service life of the wire rope is greatly prolonged. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.

Processing type :

Lebus grooved drum
The groove is cut directly into the body of the drum.(according to customer‘s requirements.
The flanges are either welded or screw-bolted.)
Split-lebus grooved sleeves (shell )
The whole lebus grooved drum is divided into the upper and lower parts,which we call them lebus split-sleeves. The sleeves are available a smooth drum or helical drums.

LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.

Some parameters of drums:

Rope diameter(mm)	5 12 24 32 42 58
Grooved drum diameter(mm)	80 150 300 500 800 1100
Width between the flanges flanges(mm)	150 280 300 460 750 1000
Rotation direction	L R R L L R
Number of layers	3 2 4 6 8 8
Rope capacity(m)	18 19 43 127 360 1800

Our equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
