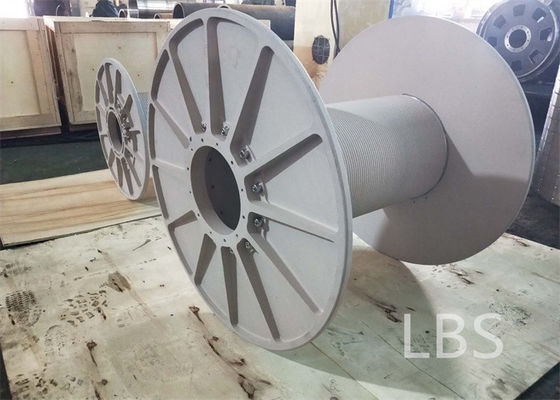

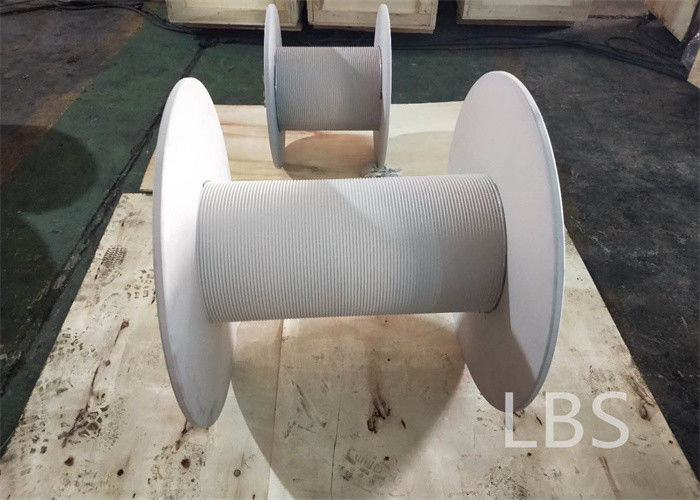

12mm Dia Wire Rope Drum Lbs Grooved Tower Crane Equipment

12mm Dia Wire Rope Drum Lbs Grooved Tower Crane Equipment
12mm Dia Wire Rope Drum Lbs Grooved Tower Crane Equipment 12mm Dia Wire Rope Drum Lbs Grooved Tower Crane Equipment

Large Image :  12mm Dia Wire Rope Drum Lbs Grooved Tower Crane Equipment

Product Details:
Place of Origin: China
Brand Name: LBS
Certification: CCS
Model Number: LBS2021089
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200usd
Packaging Details: pallet
Delivery Time: within 15word days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 3000sets per month
Detailed Product Description
Name: Grooved Winch Drum Material: Alloy Steel
Brand: LBS Capacity: 500m
Warranty: 1.5 Year Drum Diameter: 16-5000mm
Rope Diameter: 2-80mm Grooved Type: LBS Grooves Or Spiral Grooves
Certificate: CCS Country Of Origin: Hebei,China
High Light:

12mm dia wire rope drum

,

lbs grooved wire rope drum

,

tower crane equipment grooved winch drum

Tower Crane Equipment 12mm DIA Wire Rope LBS Grooved Winch Drum





A basic description

Tower crane is referred to as tower crane, also known as tower crane, originated in Western Europe. A rotating crane with arms mounted on top of a towering tower. Large working space is mainly used for vertical and horizontal conveying of materials and installation of building components in building construction. It is composed of metal structure, working mechanism and electrical system. The metal structure includes tower body, boom and base. The working mechanism has four parts: lifting, luffing, turning and walking. Electrical system includes motor, controller, power distribution cabinet, connecting circuit, signal and lighting device, etc



The basic information
ame Tower crane
the alias Tower hoist
origin Western Europe
use Vertical and horizontal conveying of materials in construction
classification Upper rotary tower and lower rotary tower





overview

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center




product information

Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm





Advantages :

LEBUS drum has a special key, is designed at the bottom of the reel end flange (end insert) and extension pieces, they guide the wire rope from the first layer to the second layer smoothly.

The lebus groove makes the load evenly distributed between layers, and the practice proves that the service life of the wire rope is greatly prolonged. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.



Processing type :

Lebus grooved drum
The groove is cut directly into the body of the drum.(according to customer‘s requirements.
The flanges are either welded or screw-bolted.)
Split-lebus grooved sleeves (shell )
The whole lebus grooved drum is divided into the upper and lower parts,which we call them lebus split-sleeves. The sleeves are available a smooth drum or helical drums.


LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.

Some parameters of drums:
Rope diameter(mm)  5 12 24 32 42 58
Grooved drum diameter(mm)  80 150 300 500 800 1100
Width between the flanges flanges(mm) 150 280 300 460 750 1000
Rotation direction  L R R L L R
Number of layers 3 2 4 6 8 8
Rope capacity(m)  18 19 43 127 360 1800


Our equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.

12mm Dia Wire Rope Drum Lbs Grooved Tower Crane Equipment 012mm Dia Wire Rope Drum Lbs Grooved Tower Crane Equipment 1
