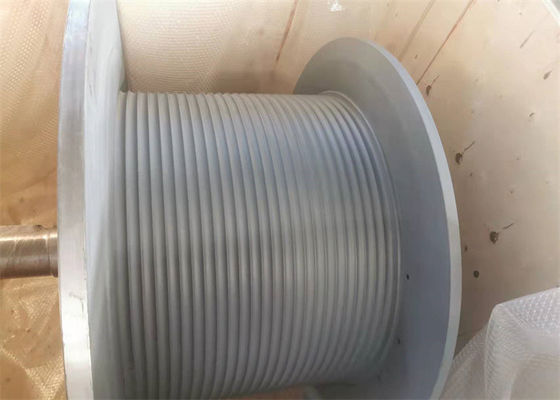

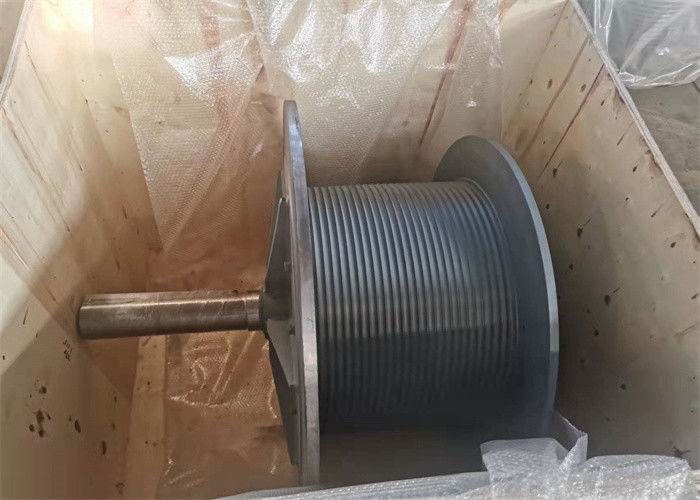

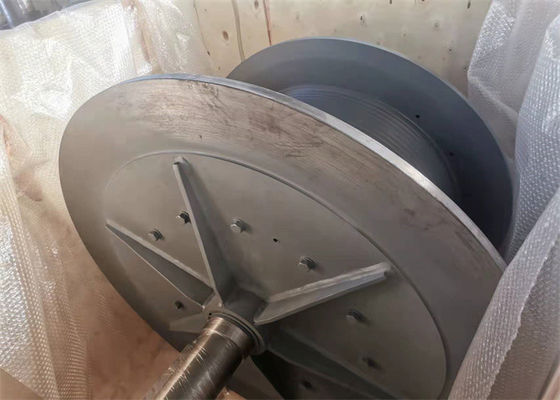

Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved

Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved
Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved

Large Image :  Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved

Product Details:
Place of Origin: China
Brand Name: LBS
Certification: CCS
Model Number: LBS2021089
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 200usd
Packaging Details: pallet
Delivery Time: within 15word days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 3000sets per month
Detailed Product Description
Material: Alloy Steel Brand: LBS
Country Of Origin: Hebei,China Warranty: 1.5 Year
Diameter: 16-5000mm Rope Diameter: 1.5-80mm
Grooved Type: LBS Grooved Certificate: CCS
High Light:

carbon lifting winch steel rope drum

,

8mm steel rope drum

,

lbs grooved steel rope drum

Hot Dip Galvanized Carbon Steel Lifting Winch LBS Grooved Winch Drum





Use of winch

The main uses of the winch are as follows: first, as lifting equipment, it is used for mine lifting, sinking lifting and suspension (lifting) sinking equipment and facilities, that is, along the shaft lifting ore, waste (gangue) stone, lifting personnel, lowering materials, tools and equipment; Second, it is used as transportation equipment for underground scheduling and transportation of ore (harvester), stope rake ore (slag) or filling, removing columns, etc.

The drums is the one of the most important parts in the winch.



product information
The name Hot Dip Galvanized Carbon Steel Lifting Winch LBS Grooved Winch Drum
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm



Drum Introduction
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center


Advantages :

LEBUS drum has a special key, is designed at the bottom of the reel end flange (end insert) and extension pieces, they guide the wire rope from the first layer to the second layer smoothly.

The lebus groove makes the load evenly distributed between layers, and the practice proves that the service life of the wire rope is greatly prolonged. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.



Processing type :

Lebus grooved drum
The groove is cut directly into the body of the drum.(according to customer‘s requirements.
The flanges are either welded or screw-bolted.)
Split-lebus grooved sleeves (shell )
The whole lebus grooved drum is divided into the upper and lower parts,which we call them lebus split-sleeves. The sleeves are available a smooth drum or helical drums.


LBSD Series Grooved drum :

About Size:
We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from
100mm to 2000mm.

Some parameters of drums:
Rope diameter(mm)  5 12 24 32 42 58
Grooved drum diameter(mm)  80 150 300 500 800 1100
Width between the flanges flanges(mm) 150 280 300 460 750 1000
Rotation direction  L R R L L R
Number of layers 3 2 4 6 8 8
Rope capacity(m)  18 19 43 127 360 1800


Overview:

Lebus drum is a kind of groove form suitable for multi-layer winding of wire rope introduced from abroad. Because this kind of rope groove is kept parallel with the flange end face in most sections of the drum circumferential direction, and only intersects with the flange end face in a very small section, the rope groove must be turned, hence the name "folding rope groove".

Years of practical use show that this kind of special rope groove structure of the drum, can well solve the problem of wire rope multi-layer winding rope about double folded cord slot system, to ensure that the multilayer on the drum winding rope fully involved in and roll out the reel smoothly, and can greatly prolong the service life of wire rope, the system is still the most effective method and the most perfect. Tests have shown that the Lebus drum can prolong the life of the wire rope by more than 500% with the rope groove matching the specifications of the wire rope.



Required Parameters:
  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?
Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved 0Carbon Lifting Winch 8mm Steel Rope Drum Lbs Grooved 1
