| Material: | Alloy Steel | Brand: | LBS |
|---|---|---|---|
| Country Of Origin: | China | Warranty: | 1year |
| Diameter: | 18-5000mm | Rope Diameter: | 1.5-80mm |
| Grooved Type: | LBS Grooved | Certificate: | CCS |
| High Light: | grooved winch drum alloy steel,wall scrubbing grooved winch drum,multi lbs grooved winch drum |
||
Winch is a small and light lifting equipment (see lifting machinery) with winding wire rope or chain to lift or pull heavy objects, also known as winch. Winch can be used alone, can also be used as lifting, road construction and mine lifting machinery components, because of simple operation, large rope winding, easy to move and widely used. A winch is also known as a winch. The product has high versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer, is widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat drag, but also can be used as a modern electronic control automatic operation line supporting equipment.
Drum is the one of the most improtant part in the winch.
This lebus reel model is: LBSZ1080-1300
Represents the diameter of the lebus drum is 1080mm, the length is 1300mm

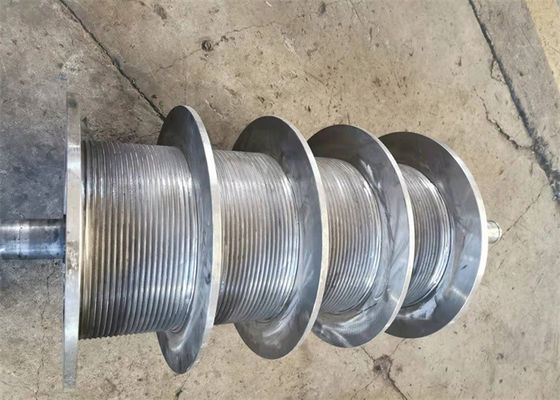

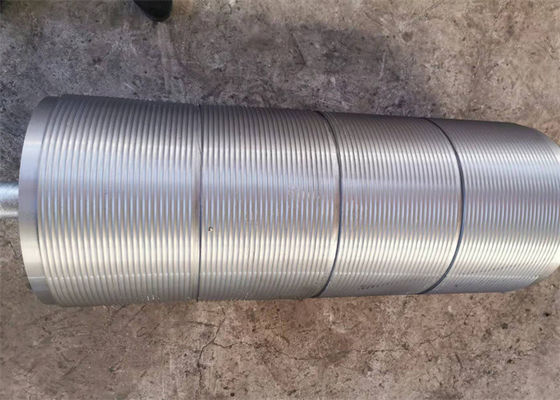

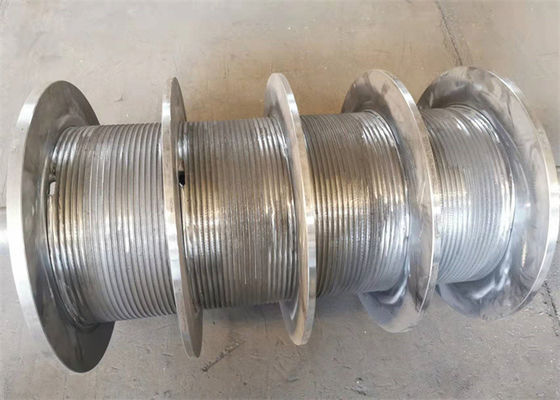

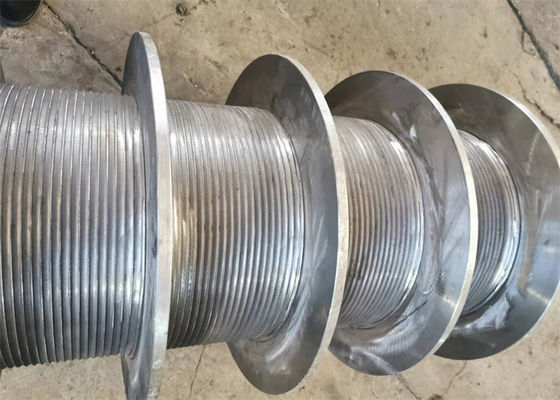

LEBUS drum has a special key, is designed at the bottom of the reel end flange (end insert) and extension pieces, they guide the wire rope from the first layer to the second layer smoothly.
The lebus groove makes the load evenly distributed between layers, and the practice proves that the service life of the wire rope is greatly prolonged. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.
| Rope diameter(mm) | 5 12 24 32 42 58 |
| Grooved drum diameter(mm) | 80 150 300 500 800 1100 |
| Width between the flanges flanges(mm) | 150 280 300 460 750 1000 |
| Rotation direction | L R R L L R |
| Number of layers | 3 2 4 6 8 8 |
| Rope capacity(m) | 18 19 43 127 360 1800 |
Lebus drum is a kind of groove form suitable for multi-layer winding of wire rope introduced from abroad. Because this kind of rope groove is kept parallel with the flange end face in most sections of the drum circumferential direction, and only intersects with the flange end face in a very small section, the rope groove must be turned, hence the name "folding rope groove".
Years of practical use show that this kind of special rope groove structure of the drum, can well solve the problem of wire rope multi-layer winding rope about double folded cord slot system, to ensure that the multilayer on the drum winding rope fully involved in and roll out the reel smoothly, and can greatly prolong the service life of wire rope, the system is still the most effective method and the most perfect. Tests have shown that the Lebus drum can prolong the life of the wire rope by more than 500% with the rope groove matching the specifications of the wire rope.
1. Outdoor use is allowed;
2. The altitude does not exceed 2000M;
3. Ambient temperature -30℃ ~ +65℃;
4. It is allowed to work under rain, splash and dust conditions.
