Lebus Multilayer Winding Grooved Wire Rope Drum For Crane Winch

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

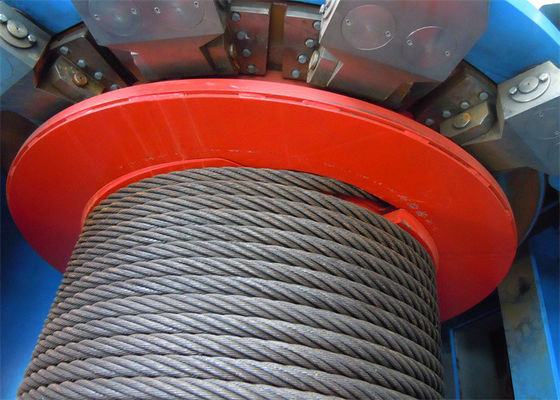

Lebus Multilayer Winding Grooved Wire Rope Drum For Crane Winch

Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch
Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch

Large Image :  Lebus Multilayer Winding Grooved Wire Rope Drum For Crane Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 30-50 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Pieces Per Month
Detailed Product Description
Name: Tower Crane Winch Power Source: Hydraulic Or Electric
Application: Tower Crane Groove Type: Lebus Grooves
Warranty: 1year Max. Lifting Load: 2-25T
Material: Alloy Steel, Carbon Steel , Stainless Steel Usage: Mechanical Parts
High Light:

Lebus grooved wire rope drum

,

Multilayer grooved wire rope drum

Wire Rope Multilayer Winding Design Lebus Groove Drums Used For Tower Crane Winch





Technical performance

Winch (drawworks) is the core component of the tower crane, mainly used to deliver tools, hoist/descend s and run the drilling tools and pipe shrouds into the well during the drilling process.

Drum is the core component of the winch, The design of LEBUS groove barrel solves the problem of multi-layer winding of wire rope



Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center



Use of winch

The main uses of the winch are as follows: first, as lifting equipment, it is used for mine lifting, sinking lifting and suspension (lifting) sinking equipment and facilities, that is, along the shaft lifting ore, waste (gangue) stone, lifting personnel, lowering materials, tools and equipment; Second, it is used as transportation equipment for underground scheduling and transportation of ore (harvester), stope rake ore (slag) or filling, removing columns, etc.



Products Parameter



product name

Wire Rope Multilayer Winding Design Lebus Groove Drums Used For Tower Crane Winch
Usage tower crane ,offshore platform
Winch drum type suggest LBS (smooth or traditional spiral )
Fuction lifting,hoist,pulling
Field offshore,crane ,marine,oil drilling,mining
Wire rope diameter 3~199mm
Wire rope capacity 100-1000M
Colour red or customer
Orignal China(mainland)
Load capacity 1-60KN
Rope speed 0-40m/min
Power hydraulic or customer



Some products type parameter for your reference:that can be design to meet requirement

Model

Layer plly force
(T)

Rope speed Drum bottom diameter Difference of working pressures(Mpa) Rope capaticty(mm) Diameter of steel cable(mm) Model of power
LBSTC1-10 30 0-35 305 15.9 65 15 XH2-420 D51
LBSTC1-20 50 0-40 380 16.3 70 20 XH3-900 D240 101
LBSTC1-30 80 0-40 470 15.6 100 24 XH5-1800 D240101
LBSTC1-40 100 0-40 470 16 90 28 XH6-2000 D240 101
LBS0F1-50 120 0-30 600 17.3 175 30 XH6-3000 D240101
LBSTC1-60 150 0-30 640 17.8 143 38 XH7-4300 D240101
LBS TC1-70 200 0-25 660 17.8 150 40 XH8-900d240101



product equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment



About us

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.



Required Parameters

  • Wire rope diameter or cable diameter(mm)
  • Inner diameter D1(mm)
  • Outer diameter D2(mm)
  • Width between the flanges L(mm)
  • Rope capacity(m)
  • Material:
  • Rotation direction:left or right?

Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch 0

Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch 1Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch 2Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch 3Lebus Multilayer Winding Grooved Wire Rope Drum For  Crane Winch 4



Contact Details
Hebei Junke Machinery Technology Co.,Ltd

Contact Person: Marie

Tel: 86+13315131859

Fax: 86-311-66692276
