| Power Source: | Hydraulic | Application: | Tower Crane |
|---|---|---|---|
| Groove Type: | Lebus Grooves | Warranty: | 1year |
| Condition: | New | Max. Lifting Load: | 2-25T |
| Material: | Alloy Steel | Usage: | Mechanical Parts |
| Highlight: | LBS Tower Crane Winch,Hydraulic Drive Tower Crane Winch |
||
Tower crane is referred to as tower crane, also known as tower crane, originated in Western Europe. A rotating crane with arms mounted on top of a towering tower. Large working space is mainly used for vertical and horizontal conveying of materials and installation of building components in building construction. It is composed of metal structure, working mechanism and electrical system. The metal structure includes tower body, boom and base. The working mechanism has four parts: lifting, luffing, turning and walking. Electrical system includes motor, controller, power distribution cabinet, connecting circuit, signal and lighting device, etc
Hydraulic winch is usually combined with hydraulic motor, control valves, gear boxes, grooved drum, brackets (clutch), pressure rope and mounting brackets.
Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime
.
Custom-made (according to actual )
We suggest your choose the LBS drum design .As it can save time and money for your in the future use .As the LBS design have its specail design for two parallel and two spiral lsection in one layer that can make the rope on its regular track and working smoothly than the traditional design .That can improve your working efficency.
|
product name |

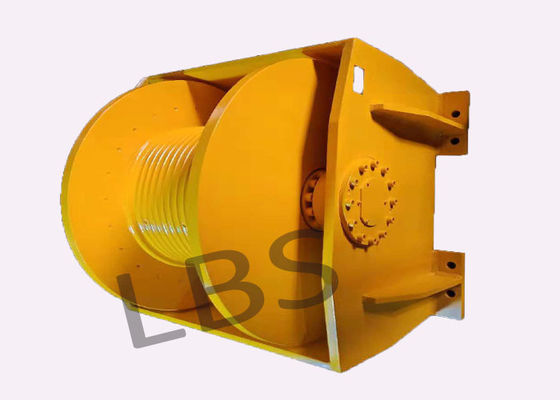

Hydraulic Drive Lebus Grooved Wire Rope Tower Crane Winch For Lifting Object |
| Usage | tower crane ,offshore platform |
| Winch drum type | suggest LBS (smooth or traditional spiral ) |
| Fuction | lifting,hoist,pulling |
| Field | offshore,crane ,marine,oil drilling,mining |
| Wire rope diameter | 3~199mm |
| Wire rope capacity | 100-1000M |
| Colour | red or customer |
| Orignal | China(mainland) |
| Load capacity | 1-60KN |
| Rope speed | 0-40m/min |
| Power | hydraulic or customer |
| Model |
Layer plly force (T) |
Rope speed | Drum bottom diameter | Difference of working pressures(Mpa) | Rope capaticty(mm) | Diameter of steel cable(mm) | Model of power |
| LBSTC1-10 | 30 | 0-35 | 305 | 15.9 | 65 | 15 | XH2-420 D51 |
| LBSTC1-20 | 50 | 0-40 | 380 | 16.3 | 70 | 20 | XH3-900 D240 101 |
| LBSTC1-30 | 80 | 0-40 | 470 | 15.6 | 100 | 24 | XH5-1800 D240101 |
| LBSTC1-40 | 100 | 0-40 | 470 | 16 | 90 | 28 | XH6-2000 D240 101 |
| LBS0F1-50 | 120 | 0-30 | 600 | 17.3 | 175 | 30 | XH6-3000 D240101 |
| LBSTC1-60 | 150 | 0-30 | 640 | 17.8 | 143 | 38 | XH7-4300 D240101 |
| LBS TC1-70 | 200 | 0-25 | 660 | 17.8 | 150 | 40 | XH8-900d240101 |
1) Two-or three-stage planetary gearboxes, smooth operation and reasonable structure.
2) High efficiency of starting and transmissing, low energy consumption, reliable operation and long service life.
3) Highly efficient, constant operating torque motor.
4) Smooth running over the entire speed range.
5) Axial fixed or variable hydraulic motor with long life operating.
6) Mounting frame is available on request.
7) Low noise operation.
Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.
