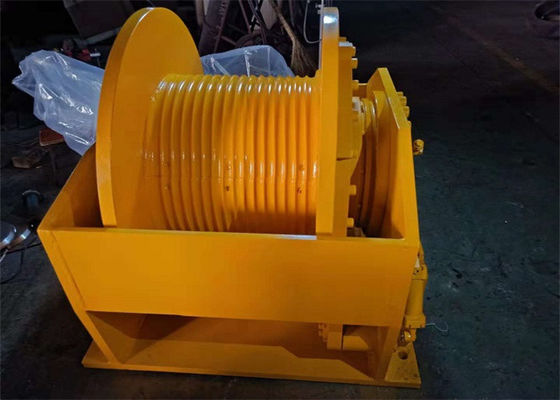

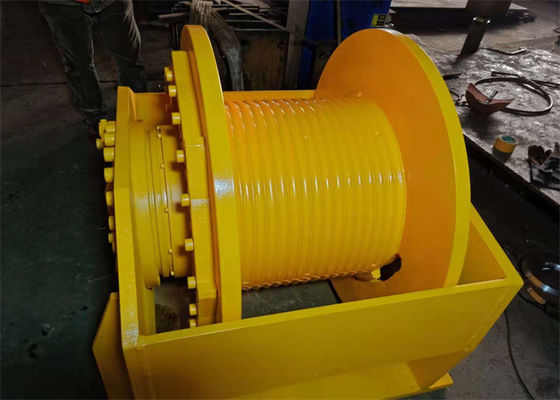

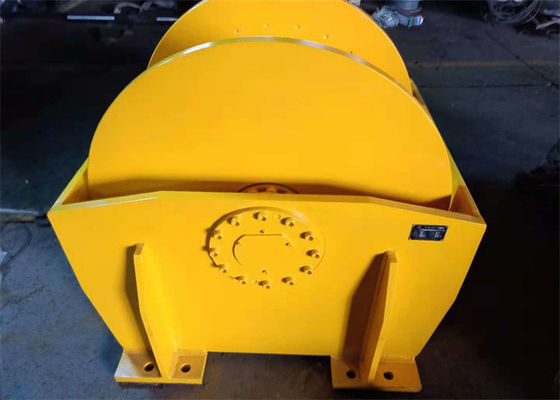

140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized Colors

140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors
140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors 140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors 140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors

Large Image :  140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized Colors

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 30-50 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Pieces Per Month
Detailed Product Description
Power Source: Hydraulic Application: Tower Crane
Groove Type: Lebus Grooves Warranty: 13 Months
Condition: New Max. Lifting Load: 2-25T
Material: Steel Core Component: Drum
Highlight:

multipurpose heavy duty hydraulic winch

,

140KN heavy duty hydraulic winch

140KN Corlor Hydraulic Drive Wire Rope Tower Crane Winch





Products Parameter

product name

140KN Corlor Hydraulic Drive Wire Rope Tower Crane Winch
Usage tower crane ,offshore platform
Winch drum type suggest LBS (smooth or traditional spiral )
Fuction lifting,hoist,pulling
Field offshore,crane ,marine,oil drilling,mining
Wire rope diameter 3~199mm
Wire rope capacity 100-1000M
Colour red or customer
Orignal China(mainland)
Load capacity 1-60KN
Rope speed 0-40m/min
Power hydraulic or customer



Some products type parameter for your reference:that can be design to meet requirement
Model

Layer plly force

(T)

Rope speed Drum bottom diameter Difference of working pressures(Mpa) Rope capaticty(mm) Diameter of steel cable(mm) Model of power
LBSTC1-10 30 0-35 305 15.9 65 15 XH2-420 D51
LBSTC1-20 50 0-40 380 16.3 70 20 XH3-900 D240 101
LBSTC1-30 80 0-40 470 15.6 100 24 XH5-1800 D240101
LBSTC1-40 100 0-40 470 16 90 28 XH6-2000 D240 101
LBS0F1-50 120 0-30 600 17.3 175 30 XH6-3000 D240101
LBSTC1-60 150 0-30 640 17.8 143 38 XH7-4300 D240101
LBS TC1-70 200 0-25 660 17.8 150 40 XH8-900d240101



introduction

Tower crane is a rotating crane whose boom is mounted on the top of the towering tower. It is mainly used for vertical transportation of materials and component installation in construction of multi-storey and high-rise buildings. It is composed of metal structure, working mechanism and electrical system. The metal structure includes tower body, boom, base, attachment rod, etc. The working mechanism has four parts: lifting, luffing, turning and walking. Electrical system includes motor, controller, distribution frame, connecting circuit, signal and lighting device, etc.

Tower cranes are divided into two types of rotary and rotary:

First, rotary tower crane: the tower body does not rotate, the swing arm above the slewing support, the balance arm, etc., through the slewing mechanism around the center line of the tower body for full rotation. According to the requirements of use, it is divided into running type, fixed type, attachment type and internal climbing type. Running tower crane can run along the track, working range is large, widely used, suitable for multi-storey building construction; If the base of the crane is fixed on the track or the tower body is directly fixed on the basis of the fixed tower crane, the boom is longer; Such as in the fixed tower crane tower every other certain height with attached rod connected with the building, that is, attached tower crane, it uses tower height device to make the upper part of the crane rotation can be increased with the building and the corresponding increase, for high-rise building construction; The crane is installed in the elevator shaft or connected holes, the use of hydraulic cylinder to make the crane according to the construction process along the shaft upward climb is called the internal climbing tower crane, it saves part of the tower, the service range is large, does not occupy the construction site, but the structure of the building has certain requirements.

Two, the next rotary tower crane: the slewing bearing is installed between the base and the turntable, in addition to the walking mechanism, other working institutions are arranged on the turntable together. In addition to the track type, there are track type and wheel type with track chassis and tire chassis as the walking device. It has low center of gravity, can be disassembled and transferred as a whole, lightweight and flexible, widely used, suitable for multi-storey building construction.





Product advantage

Our factory mainly in the service of hoisting machinery, Marine machinery, petroleum machinery, hydraulic machinery, engineering machinery and other industries, the main products are oil drilling rig, workover rig, drifting machine, trailermounted pumping unit winch (The main drum is used LBS grooved drum) and oil equipment accessories.



140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors 0



140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors 1



140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors 2140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors 3140KN Multipurpose Heavy Duty Hydraulic Winch Steel Customized  Colors 4
