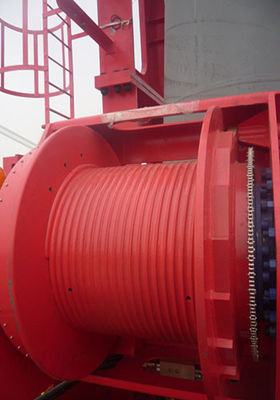

12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color

12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color
12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color 12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color 12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color

Large Image :  12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 30-50 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Pieces Per Month
Detailed Product Description
Power Source: Hydraulic Or Electric Application: Tower Crane
Groove Type: Lebus Grooves Warranty: 1year
Condition: New Max. Lifting Load: 2-25T
Material: Alloy Steel, Carbon Steel , Stainless Steel Usage: Mechanical Parts
High Light:

16Ton Tower Crane Winch

,

12Ton Tower Crane Winch

High Power 12T. 16 T Tower Crane Hydraulic Power Winch Lebus Grooved Drum





Use of winch

The main uses of the winch are as follows: first, as lifting equipment, it is used for mine lifting, sinking lifting and suspension (lifting) sinking equipment and facilities, that is, along the shaft lifting ore, waste (gangue) stone, lifting personnel, lowering materials, tools and equipment; Second, it is used as transportation equipment for underground scheduling and transportation of ore (harvester), stope rake ore (slag) or filling, removing columns, etc.



Characteristics of hydraulic winch

Hydraulic winch is mainly rated load larger winch, under normal circumstances more than 10T to 5000T winch design hydraulic winch.

Its structure is mainly composed of hydraulic motor (low speed or high speed motor), hydraulic normally closed multi-disc brake, planetary gear box, clutch (optional), drum, supporting shaft, frame, rope press (optional) and so on. Hydraulic motor has high mechanical efficiency, large starting torque, and can request according to the working condition of flow distribution with different, still can design according to need directly integrated in the motor oil distribution valve group, such as belt balance valve, the overload valve, shuttle valve, high pressure control reversing valve or other performance of the valve group, brake, planetary gear box installed directly in the drum, Drum, support shaft, frame design according to mechanical requirements, the overall structure is simple and reasonable and has enough strength and rigidity. Therefore, this series winch has the characteristics of compact structure, small size, light weight and beautiful appearance, and has the characteristics of good safety, high efficiency, large starting torque, good low-speed stability, low noise and reliable operation in performance.

LBS grooved winch drum advantage:

  1. Each one circle layer of the grooved drum has two parallel groove section and two groove section
  2. Make wire rope spooling more smooth and uniform distribution of load between each layer
  3. Prevent cross &mess in rope spooling working happening
  4. Lower the rope damage, extend the rope life



Products Parameter



product name

High Power 12T. 16 T Tower Crane Hydraulic Power Winch Lebus Grooved Drum
Usage tower crane ,offshore platform
Winch drum type suggest LBS (smooth or traditional spiral )
Fuction lifting,hoist,pulling
Field offshore,crane ,marine,oil drilling,mining
Wire rope diameter 3~199mm
Wire rope capacity 100-1000M
Colour red or customer
Orignal China(mainland)
Load capacity 1-60KN
Rope speed 0-40m/min
Power hydraulic or customer



Some products type parameter for your reference:that can be design to meet requirement

Model

Layer plly force
(T)

Rope speed Drum bottom diameter Difference of working pressures(Mpa) Rope capaticty(mm) Diameter of steel cable(mm) Model of power
LBSTC1-10 30 0-35 305 15.9 65 15 XH2-420 D51
LBSTC1-20 50 0-40 380 16.3 70 20 XH3-900 D240 101
LBSTC1-30 80 0-40 470 15.6 100 24 XH5-1800 D240101
LBSTC1-40 100 0-40 470 16 90 28 XH6-2000 D240 101
LBS0F1-50 120 0-30 600 17.3 175 30 XH6-3000 D240101
LBSTC1-60 150 0-30 640 17.8 143 38 XH7-4300 D240101
LBS TC1-70 200 0-25 660 17.8 150 40 XH8-900d240101



product equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment



About us

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.



12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color 012Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color 1

12Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color 212Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color 312Ton 16Ton Tower Crane Winch Alloy Steel High Power Red Color 4
