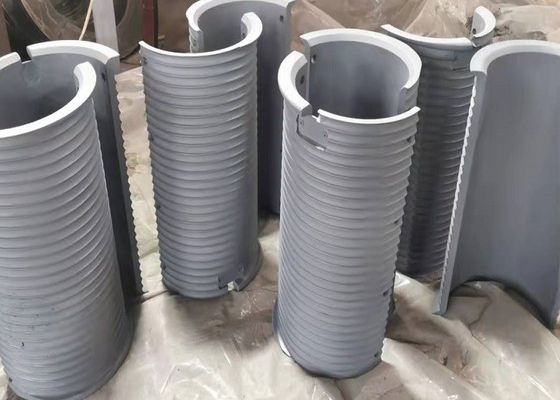

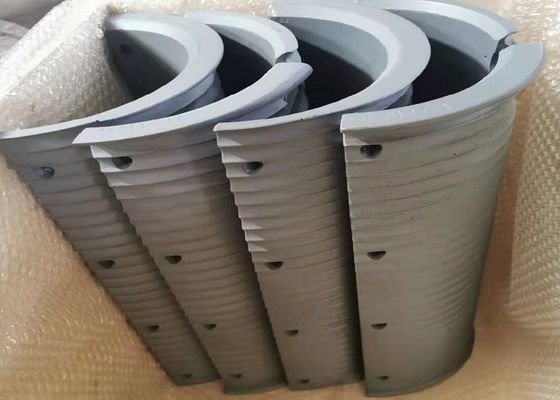

Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery

Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery
Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery

Large Image :  Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Lebus Sleeves Material: Q345 16Mn
Groove Type: Lebus Grooves Color: Gray
Surface Color: Gray Connection Type: Welded Or Bolted
Dia.of Rope: 4~80mm Layers: 2~20 Layers
Use: Assembly Winch Grooving Machining: CNC
High Light:

Righthand Lebus Sleeve

,

Lefthand Lebus Sleeve

,

Righthand winch drum sleeve

Q345 16Mn Material Grooved Drum With Lebus Sleeves







Lebus Grooved Conditions of use

1.The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.
2.The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.
3.The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.
4.When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.
5.The rope must be kept round,not loose,even under the maximum load.
6.The rope must be anti-rotation structure.
7.Pls measure the change of rope diameter under different load.



Product advantage:

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement



Product Introduction

Materials of the sleeves:High Polymers
The use the sleeves: Welded or bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch



Product application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc





Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch

Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery 0Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery 1Lefthand Righthand Operation Lebus Sleeve For Marine Ship Machinery 2
