High Polymers Lebus Sleeve Black Color Customized Size For Construction

High Polymers Lebus Sleeve Black Color Customized Size For Construction
High Polymers Lebus Sleeve Black Color Customized Size For Construction High Polymers Lebus Sleeve Black Color Customized Size For Construction High Polymers Lebus Sleeve Black Color Customized Size For Construction

Large Image :  High Polymers Lebus Sleeve Black Color Customized Size For Construction

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Steel Drum Sleeves Material: High Pollymer
Groove Type: Lebus Grooves Color: Black
Surface Color: Gray Connection Type: Welded Or Bolted
Dia.of Rope: 4~80mm Layers: 2~20 Layers
Use: Assembly Winch Grooving Machining: CNC
High Light:

Lebus Sleeve For Construction

,

High Polymers Lebus Sleeve

,

High Polymers lebus groove

High polymers material lebus Grooved Drum Sleeves for Construction





Product Introduction

Materials of the sleeves:High Polymers
The use the sleeves: Welded or bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch


Product application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc



Product structure:

Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.





Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch

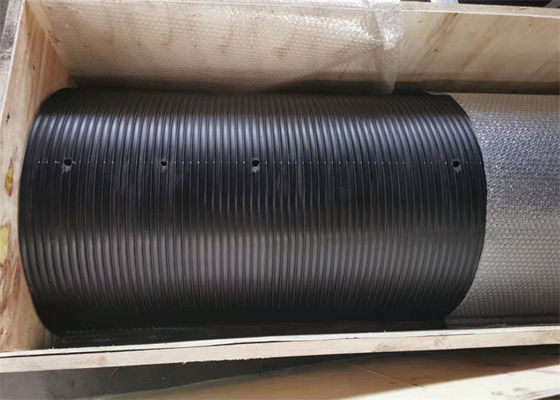

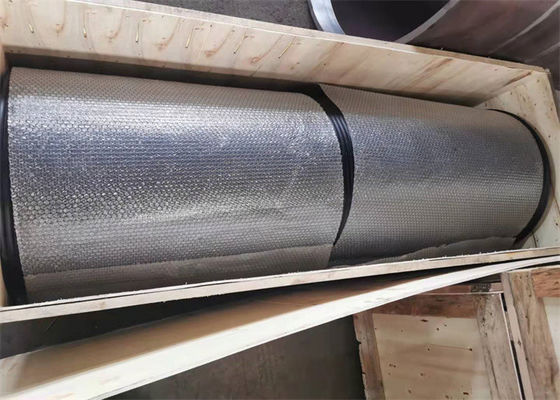

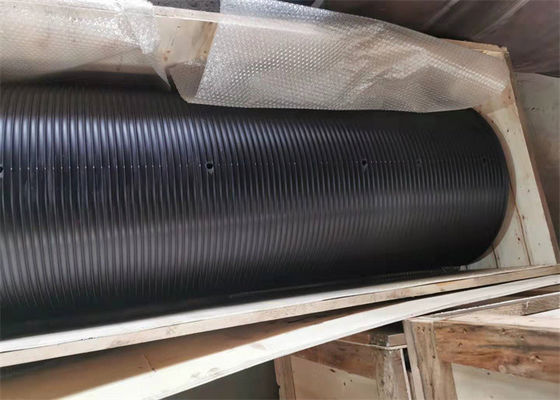

High Polymers Lebus Sleeve Black Color Customized Size For Construction 0High Polymers Lebus Sleeve Black Color Customized Size For Construction 1High Polymers Lebus Sleeve Black Color Customized Size For Construction 2
