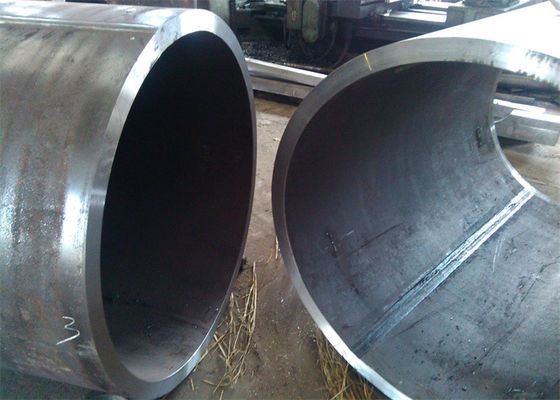

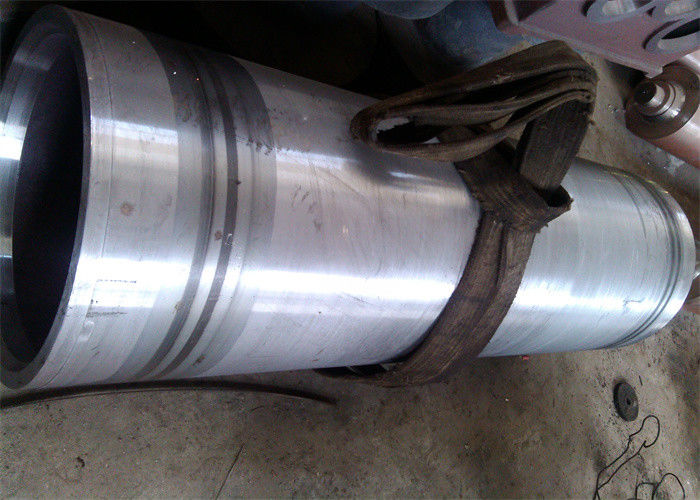

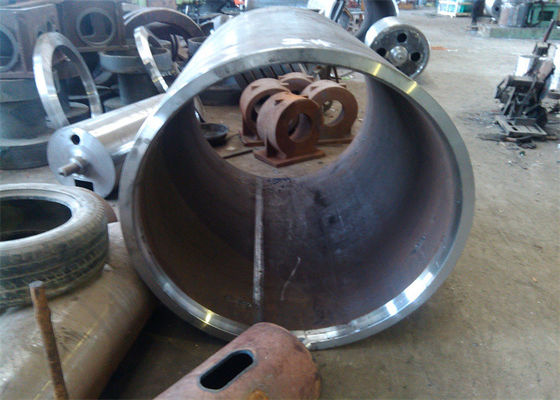

LBS Customizable Steel Smooth Drum Grooved Sleeves For Oil Rig Drawworks

Large Image : LBS Customizable Steel Smooth Drum Grooved Sleeves For Oil Rig Drawworks

Product Details:

Place of Origin:	Shijiazhuang Hebei China
Brand Name:	LBS
Certification:	CCS
Model Number:	customizable

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	20 to 30 working days, depends on order amount and specification
Payment Terms:	L/C, T/T
Supply Ability:	150 sets per month

Contact Now

Detailed Product Description

Product Name:	Oil Rig Drawworks	Brand:	LBS
Condition:	New	Material:	Carbon Stainless And Alloy Steels
Size:	20-800	Mergercy Stop:	Available Upon Request
Power Source:	Hydraulic Or Electric	Supply Ability:	2000sets Per Month
Highlight:	LBS Oil Rig Drawworks , Customizable Oil Rig Drawworks

Customizable Steel Smooth Drum Grooved Sleeves For Oil Rig Drawworks

product feature

Compared with cordless groove (smooth) drum and helical groove drum, LBS grooved drum has obvious advantages in multilayer spooling. It can be widely used in the heavy lifting and compact working conditions.

LBS grooved winch drum advantage:

1) Each one circle layer of the grooved drum has two parallel groove section and two groove section

2) Make wire rope spooling more smooth and uniform distribution of load between each layer

3) Prevent cross &mess in rope spooling working happening

4) Lower the rope damage, extend the rope life

Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

Company introduction

Shijiazhuang JunZhong Machinery Manufacturing Co.,Ltd. specializing in the production of lebus grooved drum. we have own brand LBS, with introduction of domestic and foreign advanced technology and experience, after years of research and development, we are now strong in the multi-layers rope grooved drum area and awarded patent by country having a high reputation in that area.

Techinical parameters:

technical parameters
input powerkW		JZ05	JZ03	JZ10-2	JZ08-02	JZ02-09	JZ3-2	JZ50D
input powerkW		150	180	400	450	600	735	1100
master rotor	Maximum Fast line tension(second floor)kN	80	120	180	210	280	275	340


	diameter of the tube body x lengthmm	Φ345×590	Φ356×912	Φ450×912	Φ450×912	Φ580×1012	Φ640×1237	Φ685×1138
	brake drum (disc) diameter x length (thickness)mm	Φ810×210	Φ970×260	Φ1070×310	Φ1070×310	Φ1168×267	Φ1168×265	Φ1600×76
	For wire rope diameter mm	22	22	29	29	32	32	35
	maximum speed of revolutionrpm	450	450	450	450	450	370	370
	brake drum cooling way	air cooling	air cooling	Forced circulating water cooling	Forced circulating water cooling	Forced circulating water cooling	Forced circulating water cooling	air cooling

Customizable Steel Smooth Drum Grooved Sleeves For Oil Rig Drawworks

About us:

Shijiazhuang Jun Zhong Machinery Maufacturing Co.,Ltd has been certified as “High & New-tech Enterprises of Hebei Province”, “benchmark enterprises”, “Well-known Trademark of China”, “Famous Trademark of Hebei Province”, and it has achieved many patents of state level and National Torch Plan Projects.
