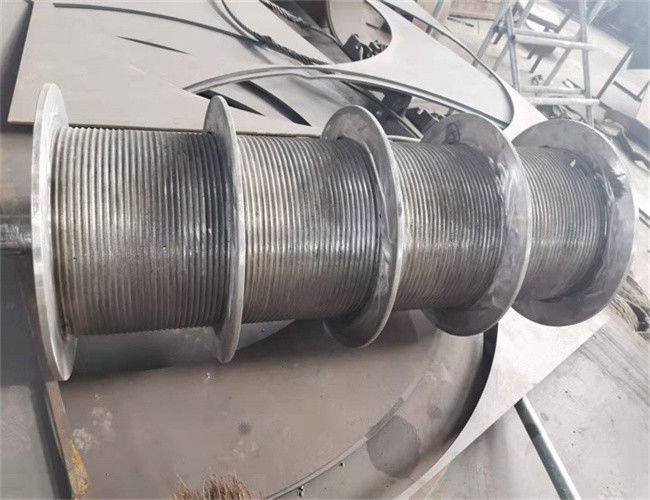

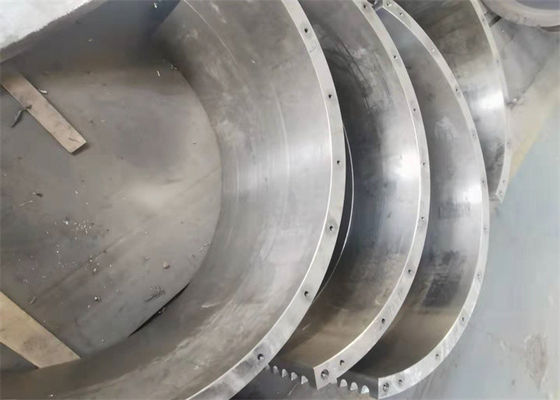

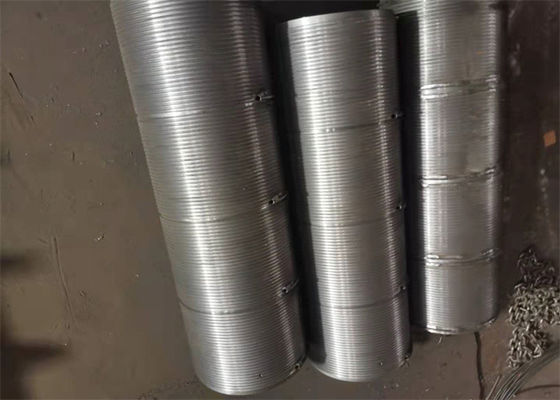

Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling

Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling
Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling

Large Image :  Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: customizable
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Oil Rig Drawworks Core Component: Drum
Drum Quantity: Single Drum Design: LBS Groove Or Spiral Groove
Material: Carbon Stainless And Alloy Steels Heat-Treatment: YES
Shipment: By Sea Power Source: Hydraulic Or Electric
Capacity: 500kn Loading Time: After Advance 20days
Warranty: 12months Grade: The Best
After Warranty Service: Videl Technical Support Online Support Packing: Normal
Highlight:

Lebus Drum shell

,

Carbon steel lebus drum

,

Carbon steel lebus Grooved Drums

multi-layer winding Steel Lebus Grooved Drum Sleeves For Oil Rig Drawworks





Techinical parameters:

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000



Signle / Double Drum Winch​ description:

colour :red or require

Sling type:cable or wire
Power :electric or hydraulic
Rope capacity:1~10000m
Rope diameter:3~90MM
Winch drum type:LBS groove

Customization need more product technical parameters.



Drum features:

Product adoption LBS grooved drum, LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.



company introction

Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling 0Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling 1Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling 2Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling 3

Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling 4Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling 5Carbon Steel Lebus Drum Shell Heat Treatment For Oil Well Drilling 6

About us:



Shijiazhuang Jun Zhong Machinery Maufacturing Co.,Ltd has been certified as “High & New-tech Enterprises of Hebei Province”, “benchmark enterprises”, “Well-known Trademark of China”, “Famous Trademark of Hebei Province”, and it has achieved many patents of state level and National Torch Plan Projects.
