500KN LBS Groove Oil Rig Drawworks Large Size For Oil Drilling

500KN LBS Groove Oil Rig Drawworks Large Size For Oil Drilling
500KN LBS Groove Oil Rig Drawworks Large Size For Oil Drilling 500KN LBS Groove Oil Rig Drawworks Large Size For Oil Drilling 500KN LBS Groove Oil Rig Drawworks Large Size For Oil Drilling

Large Image :  500KN LBS Groove Oil Rig Drawworks Large Size For Oil Drilling

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: customizable
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 20 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Oil Workover Rig Winch Drum Quantity: Single Or Double
Drum Design: LBS Groove Or Spiral Groove Material: Carbon Stainless And Alloy Steels
Warranty: 1year Application Range: Shipyard Oil Mining
Power Source: Hydraulic Or Electric Capacity: 500kn
Grade: The Best
Highlight:

LBS groove Oil Rig Drawworks

,

500KN Oil Rig Drawworks

,

500KN oil winch

Large Stell Wire Rope Oil Rig Drawworks For Oil Drilling Rig Drawworks

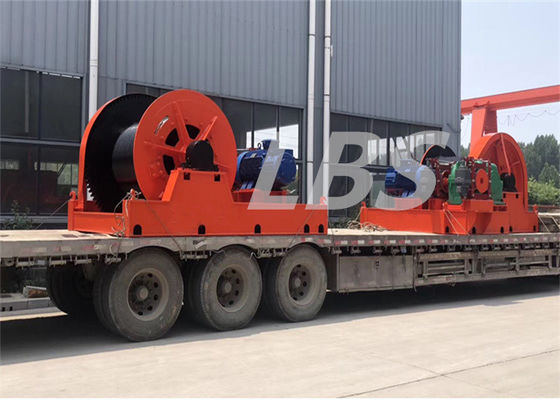

Signle / Double Drum Winch​ description:

colour :red or require
Sling type:cable or wire
Power :electric or hydraulic
Rope capacity:1~10000m
Rope diameter:3~90MM
Winch drum type:LBS groove

Customization need more product technical parameters.



Drum features:

Product adoption LBS grooved drum, LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.





Technical performance:

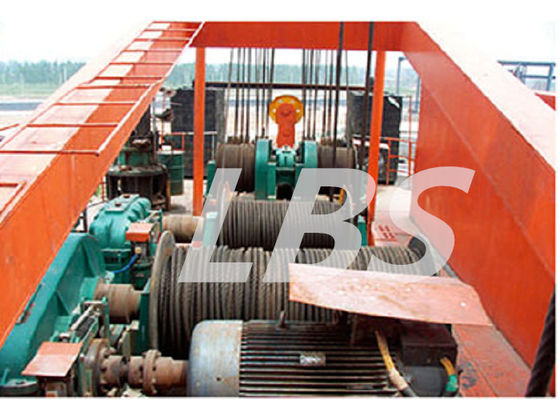

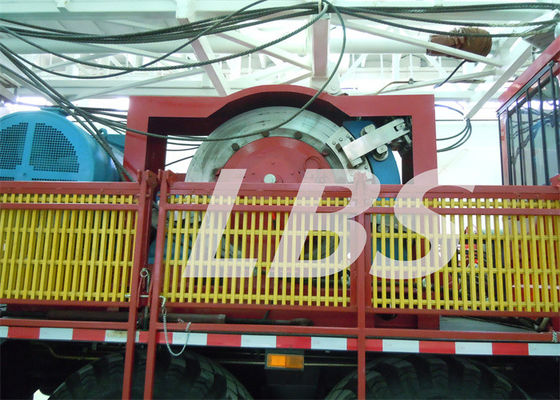

Winch (drawworks) is the core component of the oil rig, mainly used to deliver tools, hoist/descend s and run the drilling tools and pipe shrouds into the well during the drilling process.



Techinical parameters:

technical parameters
input powerkW JZ05 JZ03 JZ10-2 JZ08-02 JZ02-09 JZ3-2 JZ50D
150 180 400 450 600 735 1100
master rotor Maximum Fast line tension(second floor)kN 80 120 180 210 280 275 340
diameter of the tube body x lengthmm Φ345×590 Φ356×912 Φ450×912 Φ450×912 Φ580×1012 Φ640×1237 Φ685×1138
brake drum (disc) diameter x length (thickness)mm Φ810×210 Φ970×260 Φ1070×310 Φ1070×310 Φ1168×267 Φ1168×265 Φ1600×76
For wire rope diameter mm 22 22 29 29 32 32 35
maximum speed of revolutionrpm 450 450 450 450 450 370 370
brake drum cooling way air cooling air cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling air cooling







Large Stell Wire Rope Oil Rig Drawworks For Oil Drilling Rig Drawworks



500KN LBS Groove Oil Rig Drawworks Large Size For Oil Drilling 0
