Product Details:
Payment & Shipping Terms:
|
| Product Name: | Oil Workover Rig Drawworks | Drum Quantity: | Single Or Double |
|---|---|---|---|
| Drum Design: | LBS Groove Or Spiral Groove | Material: | Carbon Stainless And Alloy Steels |
| Size: | Customization | Application Range: | Shipyard Oil Mining |
| Power Source: | Hydraulic Or Electric | Capacity: | 500kn |
| Highlight: | 180 KN Oil Rig Drawworks,Customized Oil Rig Drawworks,Customized electric hydraulic winch |
||

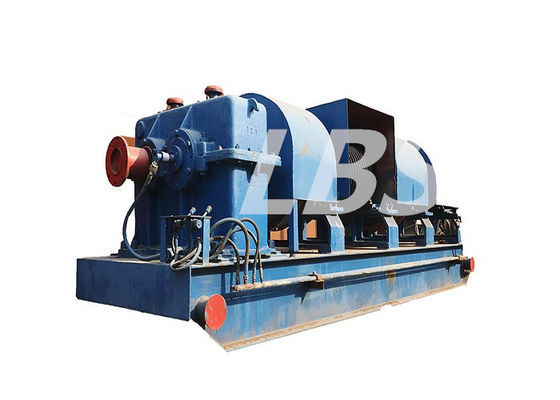

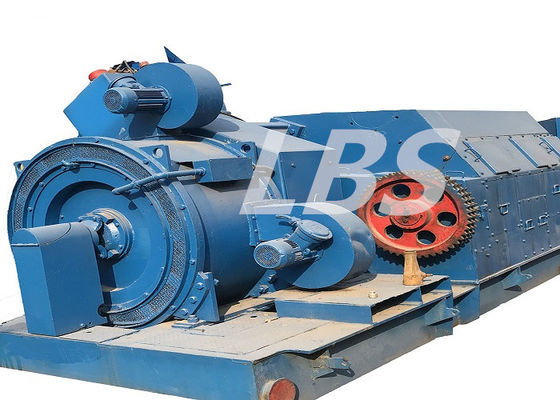

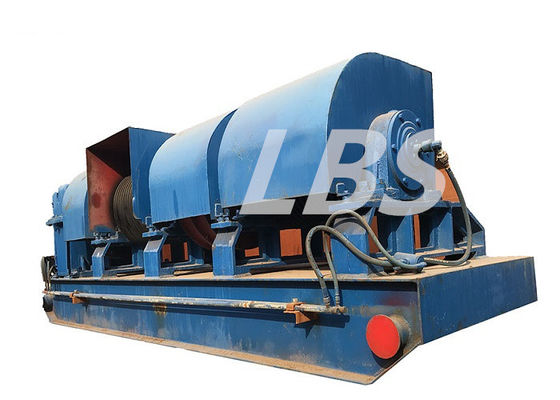

The machine on the rig consisting of a large-diameter steel spool, brakes, a power source, and assorted auxiliary devices. The primary function of the drawworks is to reel out and reel in the drilling line, a large diameter wire rope, in a controlled fashion. The drilling line is reeled over the crown block and traveling block to gain mechanical advantage in a "block and tackle" or "pulley" fashion. This reeling out and in of the drilling line causes the traveling block, and whatever may be hanging underneath it, to be lowered into or raised out of the wellbore. The reeling out of the drilling line is powered by gravity and reeling in by an electric motor or diesel engine.
| technical parameters | ||||||||
| input powerkW | JZ05 | JZ03 | JZ10-2 | JZ08-02 | JZ02-09 | JZ3-2 | JZ50D | |
| 150 | 180 | 400 | 450 | 600 | 735 | 1100 | ||
| master rotor | Maximum Fast line tension(second floor)kN | 80 | 120 | 180 | 210 | 280 | 275 | 340 |
| diameter of the tube body x lengthmm | Φ345×590 | Φ356×912 | Φ450×912 | Φ450×912 | Φ580×1012 | Φ640×1237 | Φ685×1138 | |
| brake drum (disc) diameter x length (thickness)mm | Φ810×210 | Φ970×260 | Φ1070×310 | Φ1070×310 | Φ1168×267 | Φ1168×265 | Φ1600×76 | |
| For wire rope diameter mm | 22 | 22 | 29 | 29 | 32 | 32 | 35 | |
| maximum speed of revolutionrpm | 450 | 450 | 450 | 450 | 450 | 370 | 370 | |
| brake drum cooling way | air cooling | air cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | Forced circulating water cooling | air cooling | |
Product adoption LBS grooved drum, LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or paypal.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q5: Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
Q6. how long is the machine making time?
--- For small portable water well drilling machine , which making time is about 5-7 days after receiving your deposit.
--- For some big size water well drilling machine, which making time is about 10-15 days after receiving your deposit.
