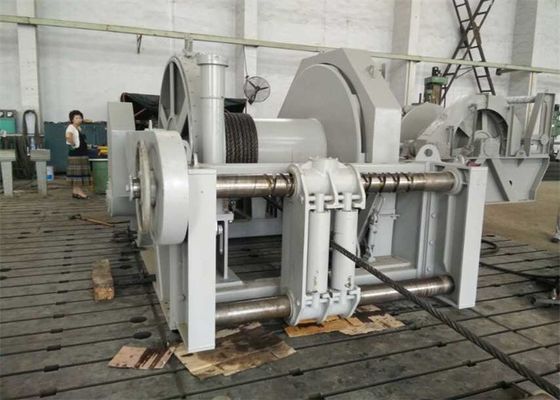

400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device

400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device
400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device

Large Image :  400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ccs
Model Number: Custom-Made
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Steel Pallet
Delivery Time: General order 30-50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Pieces Per Month
Detailed Product Description
Product Name: Winch With Spooling Device Capacity: 30TON
Application: Mining Power Source: Electric Or Hydraulic
Material: Steel Q355D Supply Ability: 200 Sets Per Month
High Light:

400KN cable winch machine

,

Steel Q355D cable winch machine

,

Steel Q355D hydraulic anchor winch

Long Wire Rope Hydraulic or Electric Winch With Spooling Device




Product  Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.


Technical Parameters

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)

1


3~8 3~10 Lefthand,Righthand >160 <1000

2


10~16 12~20 Lefthand,Righthand >320 <1000

3


18~24 20~80 Lefthand,Righthand >480 <1000

4


26~32 100~120 Lefthand,Righthand >640 <1000

5


34~40 150~200 Lefthand,Righthand >800 <1000

6


42~50 240~400 Lefthand,Righthand >1000 <1000



Overiew


Product Name

Winch With Spooling Device


Drum Quantity

Single Or Double


Drum Design

LBS Groove Or Spiral Groove


Material

Carbon Stainless And Alloy Steels


Size

Customization


Application Range

Construction Mining Terminal operation


Power Source

Electric and hydraulic


Rope Capacity

100~300M




Product Features:


1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable



Spooling device:

1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.


Characteristics of hydraulic winch

Hydraulic winch is mainly rated load larger winch, under normal circumstances more than 10T to 5000T winch design hydraulic winch.

Its structure is mainly composed of hydraulic motor (low speed or high speed motor), hydraulic normally closed multi-disc brake, planetary gear box, clutch (optional), drum, supporting shaft, frame, rope press (optional) and so on. Hydraulic motor has high mechanical efficiency, large starting torque, and can request according to the working condition of flow distribution with different, still can design according to need directly integrated in the motor oil distribution valve group, such as belt balance valve, the overload valve, shuttle valve, high pressure control reversing valve or other performance of the valve group, brake, planetary gear box installed directly in the drum, Drum, support shaft, frame design according to mechanical requirements, the overall structure is simple and reasonable and has enough strength and rigidity. Therefore, this series winch has the characteristics of compact structure, small size, light weight and beautiful appearance, and has the characteristics of good safety, high efficiency, large starting torque, good low-speed stability, low noise and reliable operation in performance.



Drive principle:

Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.


Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,



In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.





400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 0



400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 1400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 2
 400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 3

400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 4

400KN Steel Q355D Cable Winch Machine Long Wire With Spooling Device 5
