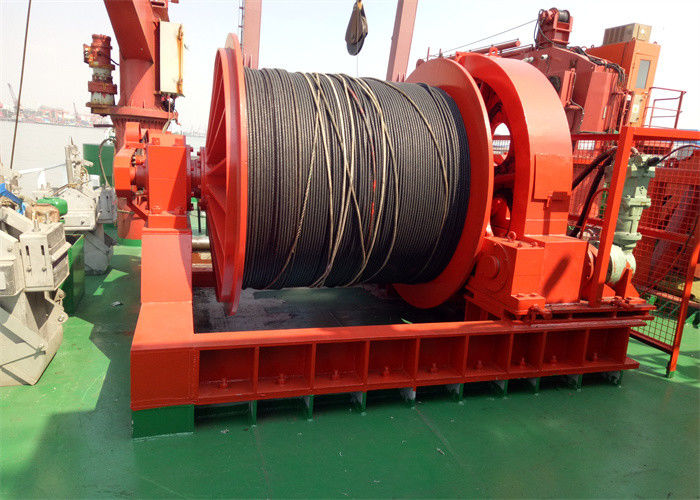

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

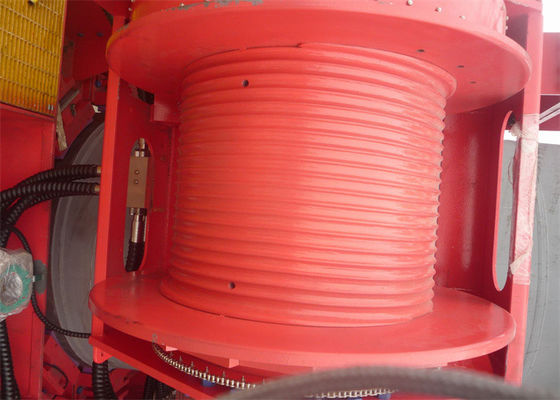

30Ton Slow Speed Winch With Spooling Device Hydraulic Power

30Ton Slow Speed Winch With Spooling Device Hydraulic Power
30Ton Slow Speed Winch With Spooling Device Hydraulic Power 30Ton Slow Speed Winch With Spooling Device Hydraulic Power 30Ton Slow Speed Winch With Spooling Device Hydraulic Power

Large Image :  30Ton Slow Speed Winch With Spooling Device Hydraulic Power

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Custom-Made
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Steel Pallet
Delivery Time: General order 30-50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Pieces Per Month
Detailed Product Description
Product Name: Winch With Spooling Device Capacity: 30Ton
Application: Ship Or Others Power Source: Electric Or Hydraulic
Material: Steel Q355D Color: Customized
Highlight:

30Ton Winch With Spooling Device

,

Slow Speed Winch With Spooling Device

,

30Ton slow speed winch

Slow Speed Wire Rope Hydraulic Power Winch With Spooling Device





Winch with pooling Device concept

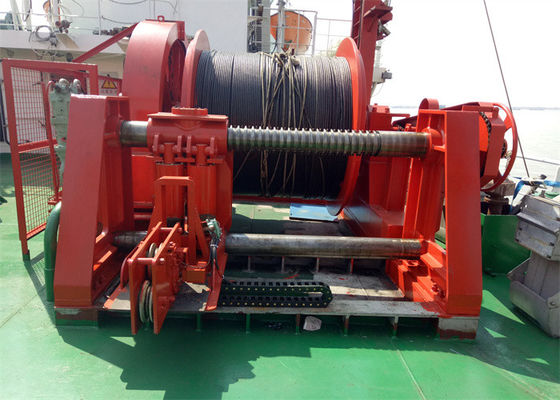

Spooling device is an important part of cable storage winch. The guide cables are arranged orderly on the drum of cable storage winch. It is mainly composed of screw, rope retractor and load-bearing beam. The screw of the cable drum and the cable setter rotates synchronously through the chain drive device. The screw is bi-directional thread and the lead is the diameter of the cable. The rope retractor consists of a small roller, a pulley baffle, a pulley and a slider nut, mounted on the bearing beam by a small roller. The rotation of the bi-directional screw causes the slider nut to move left and right along the axis of the screw with the retractor to guide the cable. In order to avoid bending deformation of the screw under excessive pressure, the load-bearing beam was analyzed by force and finite element method, and its strength and stiffness were calculated to meet the requirements.



Product Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.


Technical Parameters

No:

Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)

1



3~8 3~10 Lefthand,Righthand >160 <1000

2



10~16 12~20 Lefthand,Righthand >320 <1000

3



18~24 20~80 Lefthand,Righthand >480 <1000

4



26~32 100~120 Lefthand,Righthand >640 <1000

5



34~40 150~200 Lefthand,Righthand >800 <1000

6



42~50 240~400 Lefthand,Righthand >1000 <1000



Overview



Product name

Cable winch drum



Drum Quantity

Single Or Double



Drum Design

LBS Groove Or Spiral Groove



Material

Carbon Stainless And Alloy Steels



Size

Customization



Application Range

Construction Mining Terminal operation



Power Source

Electric and hydraulic



Rope Capacity

100~300M





Product Features:

1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable


Spooling device:

1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.


Drive principle:

Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.


Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,



In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
