High Power Hydraulic Winch Lebus Grooved Drum Winch With spooling device
Definition of winch
Winch, winding steel wire rope or chain with a drum to lift or pull heavy objects of light and small lifting equipment, also known as winch. The hoist can lift the weight vertically, pull it horizontally or obliquely. Winch is divided into manual winch and electric winch two. Now mainly with electric winch. Can be used alone, also can be used for lifting, road construction and mine hoisting machinery components, because of simple operation, large rope winding, easy to move and widely used. Mainly used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat tow.
Definition of Hydraulic Winch
Hydraulic winch, also known as hydraulic winch, are used in a variety of lifting equipment occasions. Types are divided into: hidden hydraulic hoist, exposed hydraulic hoist, high speed hydraulic hoist, low speed hydraulic hoist, hydraulic hoist is usually composed of hydraulic motor, control valve group, gear box, drum, bracket, (clutch), rope press or rope arrangement device, installation bracket and so on. Some hydraulic hoist did not take, directly by the hydraulic motor, control valve, cylinder, the end of the supporting shaft and so on, these can be selected according to the needs of customers, can be widely used in conveyor tensioning device, engineering machinery hoisting machinery such as crane, crawler crane, overhead working truck, crane, forestry and the port of ship class such as port crane, floating crane, dredger, Crane, boat , and can be used for large lifting equipment such as oil drilling rig, offshore oil drilling platform, pile machinery rotary digging drill, rock drill, core drill, hydrostatic pile press and so on.
Product Equipment
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
Technical Parameters
No: |
Wire diameter(mm) |
Pulling Force(KN) |
Rotation Direction |
Drum Diameter(mm) |
Drum Length(mm) |
1
|
3~8 |
3~10 |
Lefthand,Righthand |
>160 |
<1000 |
2
|
10~16 |
12~20 |
Lefthand,Righthand |
>320 |
<1000 |
3
|
18~24 |
20~80 |
Lefthand,Righthand |
>480 |
<1000 |
4
|
26~32 |
100~120 |
Lefthand,Righthand |
>640 |
<1000 |
5
|
34~40 |
150~200 |
Lefthand,Righthand |
>800 |
<1000 |
6
|
42~50 |
240~400 |
Lefthand,Righthand |
>1000 |
<1000 |
Overview
Product name
|
Cable winch drum |
Drum Quantity
|
Single Or Double |
Drum Design
|
LBS Groove Or Spiral Groove |
Material
|
Carbon Stainless And Alloy Steels |
Size
|
Customization |
Application Range
|
Construction Mining Terminal operation |
Power Source
|
Electric and hydraulic |
Rope Capacity
|
100~300M |
Product Features:
1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable

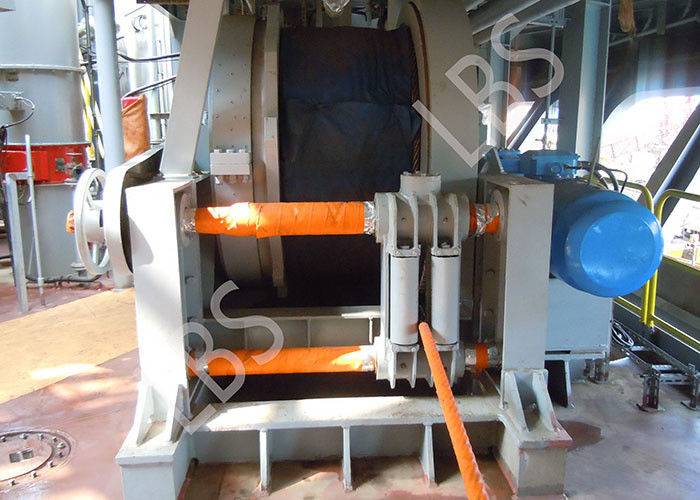

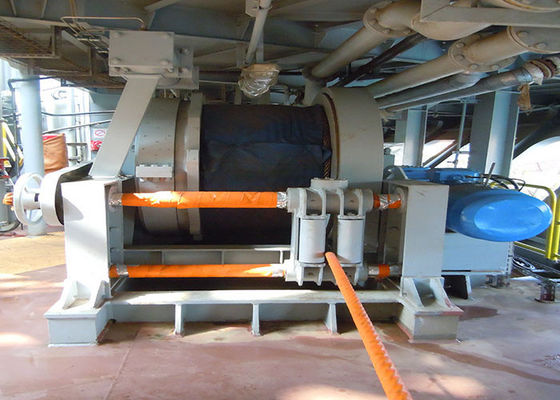

Spooling device:
1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.
Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.
