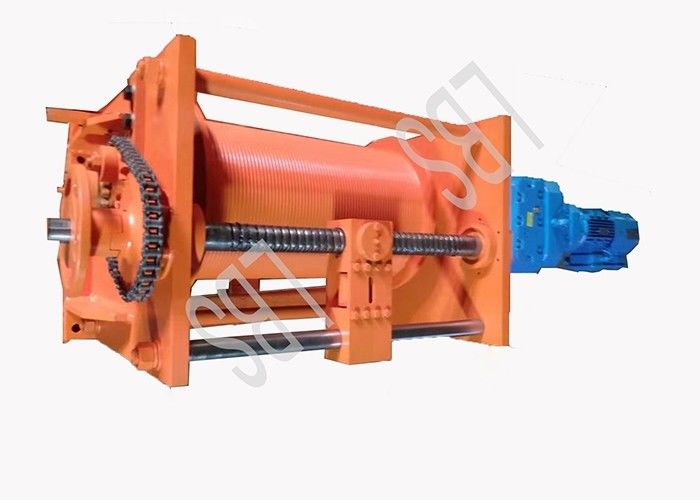

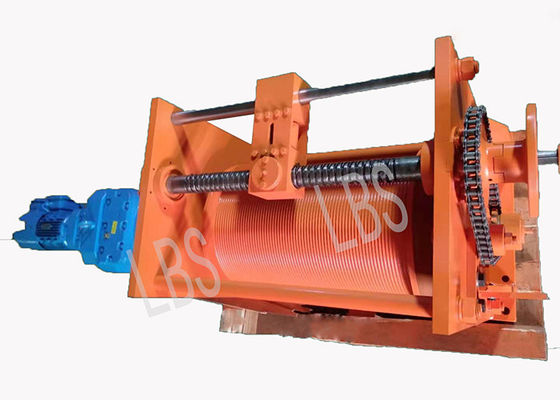

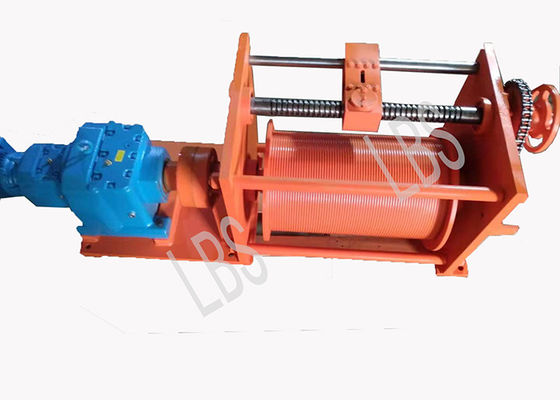

Steel Cable 30 Ton Winch With Spooling Device Electric Power

Steel Cable 30 Ton Winch With Spooling Device Electric Power
Steel Cable 30 Ton Winch With Spooling Device Electric Power Steel Cable 30 Ton Winch With Spooling Device Electric Power Steel Cable 30 Ton Winch With Spooling Device Electric Power

Large Image :  Steel Cable 30 Ton Winch With Spooling Device Electric Power

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Custom-Made
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Steel Pallet
Delivery Time: General order 30-50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Pieces Per Month
Detailed Product Description
Product Name: Winch With Spooling Device Capacity: 30TON
Application: Off Shore Power Source: Electric
Material: Steel Q355D Brand Name: LBS
Warranty: 12 Months
High Light:

Steel Cable Winch With Spooling Device

,

30 Ton Winch With Spooling Device

,

30 ton winch

Electric Power Winch Steel Cable Winch With Spooling Device





Product Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.



Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1



3~8

3~10

Lefthand,Righthand

>160

<1000

2



10~16

12~20

Lefthand,Righthand

>320

<1000

3



18~24

20~80

Lefthand,Righthand

>480

<1000

4



26~32

100~120

Lefthand,Righthand

>640

<1000

5



34~40

150~200

Lefthand,Righthand

>800

<1000

6



42~50

240~400

Lefthand,Righthand

>1000

<1000



Overview



Product name

Cable winch drum



Drum Quantity

Single Or Double



Drum Design

LBS Groove Or Spiral Groove



Material

Carbon Stainless And Alloy Steels



Size

Customization



Application Range

Construction Mining Terminal operation



Power Source

Electric and hydraulic



Rope Capacity

100~300M



Product Features:



1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable



Spooling device:
1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.



Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.

Classification of winches
1,According to the power winch is divided into pneumatic, manual, electric, hydraulic three types. From the use of the classification can be divided into building winch and Marine winch.
2,According to the function of winch can be divided into: Marine winch, engineering winch, mining winch, cable winch and so on.
3,According to the drum form is divided into single drum and double drum.
4,According to the drum distribution form is divided into parallel double drum and double drum before and after.
5,Special types of winch are: frequency conversion winch, double drum winch, handbrake lever double brake winch, with limit winch, electric control winch, electric control handbrake clutch winch, large double drum double brake winch, large external gear winch, large hydraulic winch, large external gear with rope arrangement winch, double drag winch, Large hydraulic double cylinder double brake winch, frequency conversion belt limiter rope groove winch.

Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.





Steel Cable 30 Ton Winch With Spooling Device Electric Power 0

Steel Cable 30 Ton Winch With Spooling Device Electric Power 1

Steel Cable 30 Ton Winch With Spooling Device Electric Power 2

 Steel Cable 30 Ton Winch With Spooling Device Electric Power 3



Steel Cable 30 Ton Winch With Spooling Device Electric Power 4



Steel Cable 30 Ton Winch With Spooling Device Electric Power 5Steel Cable 30 Ton Winch With Spooling Device Electric Power 6Steel Cable 30 Ton Winch With Spooling Device Electric Power 7
