Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

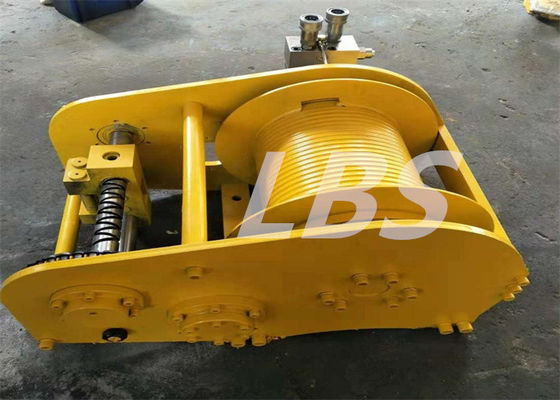

Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining

Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining
Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining

Large Image :  Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Custom-Made
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Steel Pallet
Delivery Time: General order 30-50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Pieces Per Month
Detailed Product Description
Product Name: Winch With Spooling Device Capacity: 40ton
Application: Ship Power Source: Electric
Material: Steel Q355D Brake: Manual Or Hydralic
Warranty: 1Year Type: Non-standard
High Light:

Electric Winch With Spooling Device

,

40 ton Winch With Spooling Device

,

Fast Speed 40 ton winch

Fast Speed Wire Rope Electric Winch With Spooling Device For Mining





Product Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.


Product Features:


1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable



Spooling device:

1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.

Drive principle:

Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.

Structure form

The winch converts the electric energy into mechanical energy through the motor, that is, the rotor of the motor rotates the output, through the triangle belt, shaft, gear, and then drives the drum to rotate after deceleration. The reel winds the wire rope 7 and passes through the pulley block to make the crane hook lift or drop the load Q, change the mechanical energy into mechanical work, and complete the vertical transport loading and unloading work of the load

Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,
In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.


Technical Parameters

No:Wire diameter(mm)Pulling Force(KN)Rotation DirectionDrum Diameter(mm)Drum Length(mm)

1



3~83~10Lefthand,Righthand>160<1000

2



10~1612~20Lefthand,Righthand>320<1000

3



18~2420~80Lefthand,Righthand>480<1000

4



26~32100~120Lefthand,Righthand>640<1000

5



34~40150~200Lefthand,Righthand>800<1000

6



42~50240~400Lefthand,Righthand>1000<1000



Overview



Product name

Cable winch drum



Drum Quantity

Single Or Double



Drum Design

LBS Groove Or Spiral Groove



Material

Carbon Stainless And Alloy Steels



Size

Customization



Application Range

Construction Mining Terminal operation



Power Source

Electric and hydraulic



Rope Capacity

100~300M




Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining 0Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining 1
 Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining 2

Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining 3

Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining 4Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining 5Fast Speed Wire Rope Electric 40 Ton Winch With Spooling Device For Mining 6
