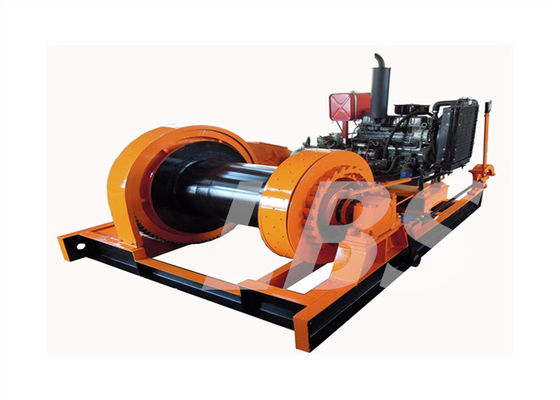

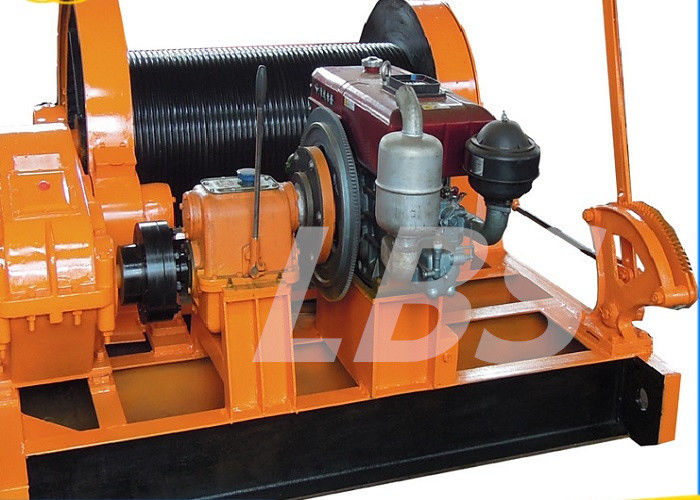

High Power 60 Ton Winch With Spooling Device Custruction Use

High Power 60 Ton Winch With Spooling Device Custruction Use
High Power 60 Ton Winch With Spooling Device Custruction Use High Power 60 Ton Winch With Spooling Device Custruction Use High Power 60 Ton Winch With Spooling Device Custruction Use

Large Image :  High Power 60 Ton Winch With Spooling Device Custruction Use

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Custom-Made
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Steel Pallet
Delivery Time: General order 30-50 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Pieces Per Month
Detailed Product Description
Product Name: Marine Winch With Spooling Device Capacity: 60TON
Application: Custruction Power Source: Electric Or Hydraulic
Material: Steel Q355D Place Of Origin: China
Highlight:

high power Winch With Spooling Device

,

60 Ton Winch With Spooling Device

,

high power 60 ton winch

High Power Electrical Winch Drum With spooling device Can Be Customizable







Winch With Spooling Device

Electric winch is widely used in heavy work and large traction required. The motor of the single-drum electric winch drives the drum through the reducer, and a brake is arranged between the motor and the input shaft of the reducer. In order to meet the needs of lifting traction and rotary operations, there are double and multiple reel winches



Product Equipment
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.


Technical Parameters

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)

1



3~8 3~10 Lefthand,Righthand >160 <1000

2



10~16 12~20 Lefthand,Righthand >320 <1000

3



18~24 20~80 Lefthand,Righthand >480 <1000

4



26~32 100~120 Lefthand,Righthand >640 <1000

5



34~40 150~200 Lefthand,Righthand >800 <1000

6



42~50 240~400 Lefthand,Righthand >1000 <1000



Overview



Product name

Winch Wth Spooling Device



Drum Quantity

Single Or Double



Drum Design

LBS Groove Or Spiral Groove



Material

Carbon Stainless And Alloy Steels



Size

Customization



Application Range

Construction Mining Terminal operation



Power Source

Electric and hydraulic



Rope Capacity

100~300M




Product Features:

1. Steel Wire rope electric winch with spooling system
2. Automatic rope arrangement can be realized
3. Compact structure and reasonable design
4. Keep the wire rope's tensioning tight for winches & cranes
5. The spooling machine can supply a back force on the rope to keep the rope a tensioning force.The spooling machine and its HPU are removeable

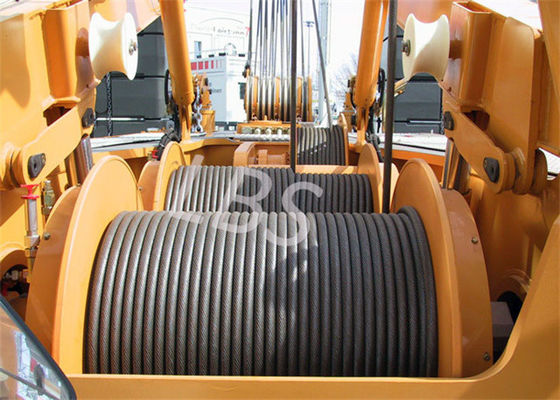

Spooling device:

1. The rope winding device of the winch (spooling device winch) adopts the principle of double rotating screw to drive the rope wheel to move back and forth,It is mechanical transmission device, easy to use, safe and reliable.
2. The winch rope arranging device consists of six parts, namely, power output part, transmission box, clutch, spiral sleeve part, rope supporting part and base.
3. In the installation process, does not require any part of the transformation of the winch, only needs to install the outer gear on the winch motor side, the power of the motor output.



Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel reciprocating movement.


High Power 60 Ton Winch With Spooling Device Custruction Use 0High Power 60 Ton Winch With Spooling Device Custruction Use 1High Power 60 Ton Winch With Spooling Device Custruction Use 2

High Power 60 Ton Winch With Spooling Device Custruction Use 3

 High Power 60 Ton Winch With Spooling Device Custruction Use 4



High Power 60 Ton Winch With Spooling Device Custruction Use 5



High Power 60 Ton Winch With Spooling Device Custruction Use 6High Power 60 Ton Winch With Spooling Device Custruction Use 7High Power 60 Ton Winch With Spooling Device Custruction Use 8
