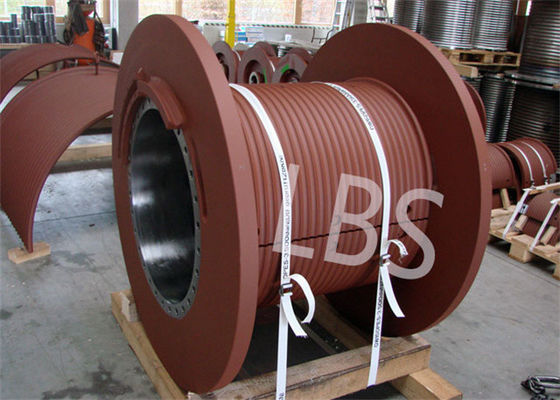

LBS 560mm Diameter Grooved Cable Drum , Winch Spare Parts For Mining

LBS 560mm Diameter Grooved Cable Drum , Winch Spare Parts For Mining
LBS 560mm Diameter Grooved Cable Drum , Winch Spare Parts For Mining LBS 560mm Diameter Grooved Cable Drum , Winch Spare Parts For Mining

Large Image :  LBS 560mm Diameter Grooved Cable Drum , Winch Spare Parts For Mining

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Hoist Winch Drum Material: Steel
Groove Type: Lebus Grooves Product Status: New
Surface Color: Black Connection Type With Drum: Bolted
Dia.of Rope: 4~60mm Layers: 2~20 Layers
Use: Assembly Hoist Winch Grooving Machining: CNC Machining
High Light:

LBS Grooved Cable Drum


560mm Grooved Cable Drum


560mm winch spare parts

Wire Rope Grooved Hoist Winch Drum For Mining And Construction



Technical parameters and application:


No:Wire diameter(mm):Rotation directionMain drum
Main drum length(mm)Application
18 10 13Lefthand,Righthand430763The oil workover rig winch,
Towing winch
Tower crane
213 18 20Lefthand,Righthand6231144Engineering winch,
Lifting winch,Crawler crane
322 25 26Lefthand,Righthand7301220Oil workover rig ,
Logging Winch
418 22 32Lefthand,Righthand6701240Drilling Rig Winch,
528 32 36 40Lefthand,Righthand560630Rotating Drilling Rig winch,
Lifting equipment
626 28 32 45Lefthand,Righthand760 11461970 1765

Offshore Crane,
Marine crane,Mooring winch


Product intrduction

Product nameWire Rope Lebus Grooved Hoist Winch Drum For Mining And Construction
coloryellow /black /gray/as customes
Wire rope capacity17-230
Hydraulic motorAs customes
Planetary reduction ratioI=5.23


Product Application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc

The Characteristics of Lebus grooves

LBS groove in each circle inside the drum are composed of straight line groove and diagonal rope groove, and each circle straight wire rope groove and diagonal rope groove position is exactly the same. when the wire rope for multi-layer winding, through the diagonal rope groove fixed upper wire rope and the lower rope crossover point position, the crossover of the upper steel wire rope in the oblique line. in the straight rope groove,the upper steel wire rope completely falls into the grooves formed by two lower steel wire ropes, form line contact between ropes, the contact between the upper and the lower rope is stable,when the return line, step retaining ring with return flange on both ends of the drum,guide wire rope to climb smoothly and return, avoid the rope disorder caused by mutual extrusion. so The wire rope is orderly and smoothly transferred to the upper layer ,Realize multi-layer winding.

Product Advantage:

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.


Q1.Are you a factory or a trading company?What can you provide?
We are a factory locates in industrial belt of Shijiazhuang City,our main products are hydraulic orbit motors,hydraulic winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic steerings, etc.
Q2. I want to buy your product,how can I pay?
We support T/T,Paypal, Western Union,also you can pay through Alibaba trade assurance
Q3.How about the warranty?
We promise to supply high quality products and professional after-sales service.We can supply technical support as long as you need,beyond that, we also offer six months of warranty.
Q4.If we don't find what we want on your website, what should we do?
You can start a conversation to us or send us email about the descriptions and pictures of the products you need, We will check if we can supply.
Q5.Can we buy 1pc of each item for quality testing?
Yes, we understand quality test is important and we are glad to send 1pc for quality testing

Our services:

1. Engineers available to service machinery overseas.
2. Our products have one year warranty.
3. A range of accessories such as pressure rollers are available on request.
4. Except for standard winches, we’re also able to provide tailored solutions to our customers.

Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.


When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.


Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the

Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,

Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
