Product Details:
Payment & Shipping Terms:
|

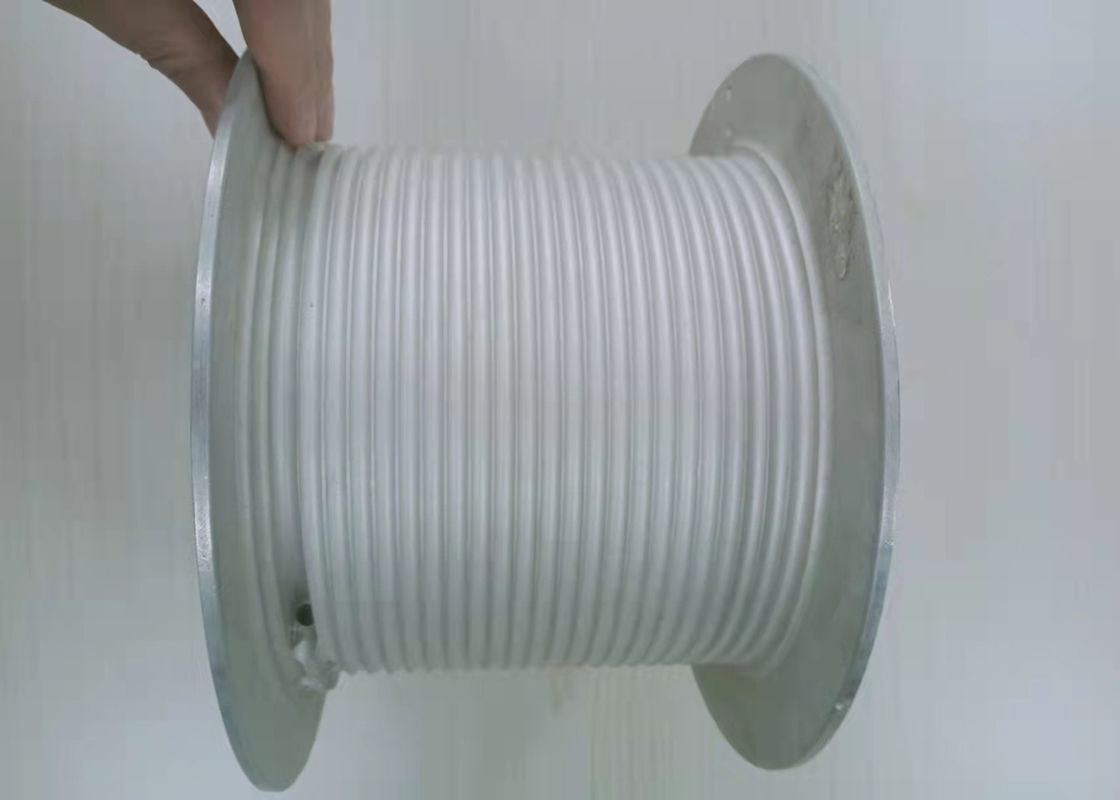

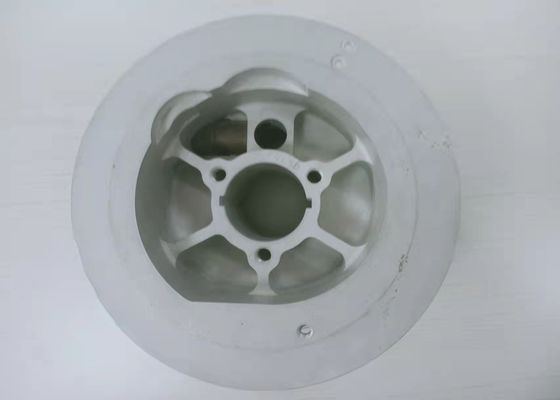

| Product Name: | Grooved Cable Multi Drums | Material: | Stainless Steel |
|---|---|---|---|
| Groove Type: | Lebus Grooves | Product Status: | New |
| Surface Color: | Black | Connection Type With Drum: | Bolted |
| Dia.of Rope: | 3~60mm | Layers: | 2~20 Layers |
| Use: | Assembly Cable Winch | Grooving Machining: | CNC Machining |
| High Light: | 20 Layers Grooved Cable Drum,Lebus Grooved Cable Drum,Lebus winch barrel |
||
In order to meet the requirements of drilling technology and transportation, the winch is usually designed as a multi-shaft drive and separate transportation, which not only makes the system complex, but also increases the cost and installation workload. To this end, the transmission scheme of the winch, power input mode and the structure of the winch frame have done pioneering work, my company designed a double drum winch. The winch is mainly composed of base, winch frame, roller shaft, sand drum shaft, shaft drive boxes, disc brake, crash-proof crown device, main brake mechanism and automatic driller, etc, and power shift between the input shaft and the shaft adopts mechanical transmission, drive shaft and roller shifting between adopts pneumatic clutch to shift, with four are blocked, reverse gear. Finite element software was used to simulate and analyze the drum shaft and check its strength and stiffness. The analysis and check results show that the design of the drum and frame of the winch is reasonable and meets the practical work requirements.
1) Wire rope or cable diameter (mm)
2) The inner diameter of the sleeves? (or the outer diameter of the smooth drum)
3) The length of the sleeves? (or the distance between two flanges ,no wear plates)
4) Material of the drum sleeves
5) The rotation direction of the drum groove?
6) Type of rope entry
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, |
| ther name: | Wire Rope Winding Winch Stainless Steel Lebus Grooved Cable Multi Drums |
| Hoist speed | 0.95-1.27m/s |
| Rotate speed | 720-960 r/min |
| Rope diameter | 3-30mm |
| Sling type | wire |
| Direction rotation | left or right |
| Application | hoist |
| Parameter | can be designed |
| Application | mining,oil drilling,or coal mine |
| Drum diameter | 900mm |
| Drum width | 600mm |
1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc
Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,
In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the
Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,
Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
