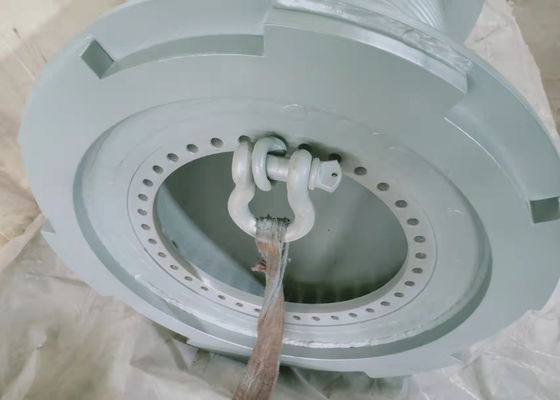

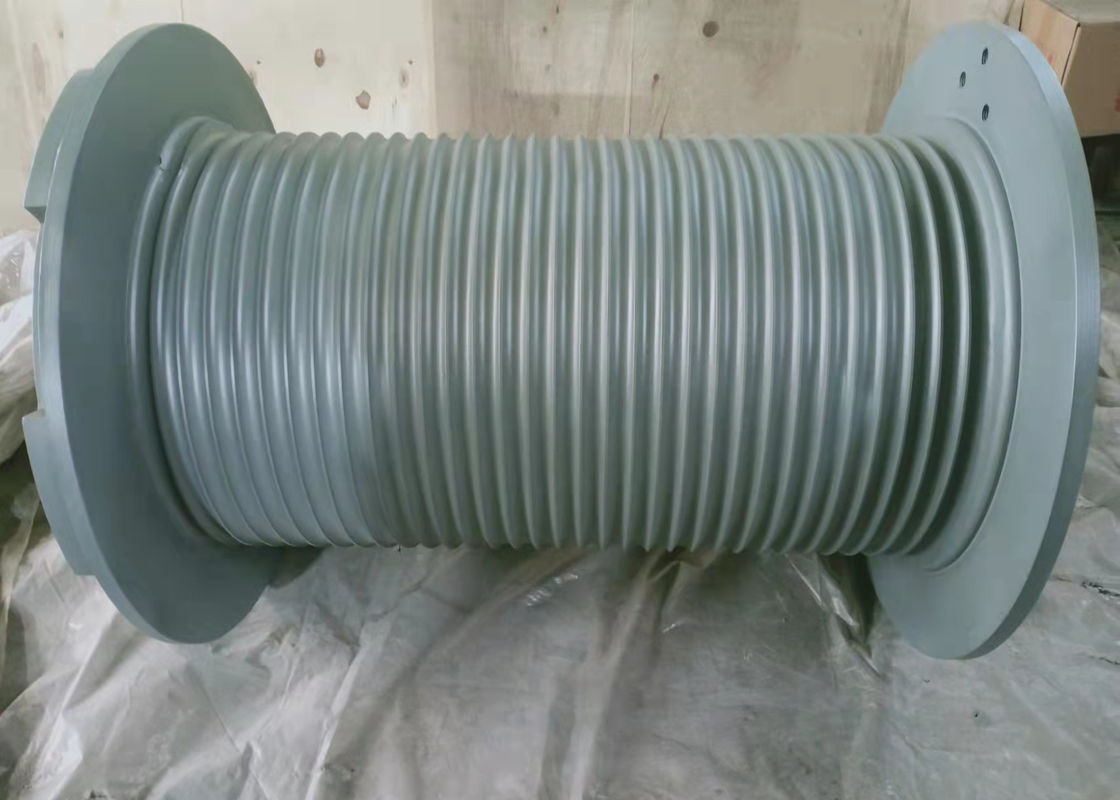

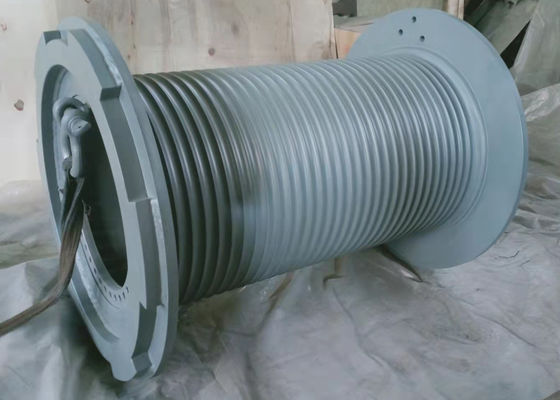

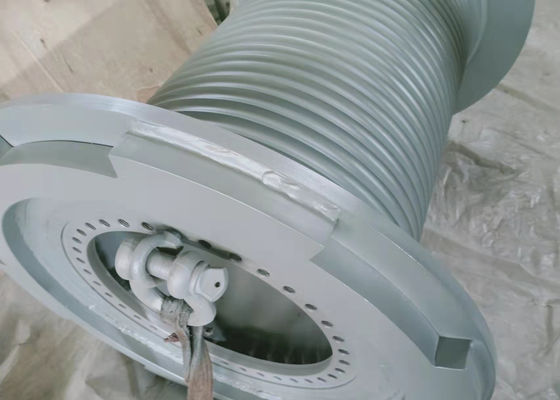

Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel

Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel
Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel

Large Image :  Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: after advance one month
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Pieces Per Month
Detailed Product Description
Product Name: Wire Rope Hoist Drum Material: Carbon Steel And Stainless Steel
Rope Groove Type: Lbs Grooves Color: Primer Grey
Rope Diameter: 36mm Power Source: Hydraulic Motor
Capacity: 160KN Construction: Weldment
Brake: Independent Hydraulic Brake Lifting Method: Vertical Or Horizontal
Highlight:

Customized winch drum

,

Muiti Layer winch drum

,

Customized cable winding drum

Customized Cabon Steel Muiti-Layer Winding Drum Rope Winch Drum




Product Application


1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch


Rope Winch Drum product infromation




product nameCustomized Cabon Steel Muiti-Layer Winding Drum Rope Winch Drum
Drum QuantitySingle Or Double
Drum DesignLBS Groove Or Spiral Groove
MaterialCarbon Stainless And Alloy Steels
SizeCustomization
Application RangeConstruction Mining Terminal operation
Power SourceElectric and hydraulic
Rope Capacity100~300M





Product Parameter


If customized,pls confirm the following details:
1. Is the winch for lifting vertically or drag horizontal?
2. What is the pulling force of single rope(KN)?
3. Single drum or double drum or other?
4. What is the drum capacity(m)?
5. Is there any requirements on rope entrance and groove type?
6. Pls let us know the rope construction rope diameter?
7. The connection mode between the drum and the bracket?
8. The connection mode of shafts?
9. Other Special requirements?

Product Details



The wire rope hoist drum includes: drum core, flange, brake disc, clutch, Rope pressing plate,locating pin and connecting sleeve, etc
Drum material: various low alloy high strength structural steels,(GB/T1591-2018) Q355B/C/D/E,Q390B/D/E,Q420B/D/E,etc.
Drum groove type: Double broken line rope groove,two broken line grooves and two parallel grooves on one circumference.

Rope entry mode: rope entry from flange side.

Drive type: hydraulic motor.

Processing Technic


Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel 0

Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel 1Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel 2

Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel 3Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel 4Muiti Layer Winch Drum , Cable Winding Drum Customized Cabon Steel 5

Product Application



DIAMETER OF WIRE ROPE 35mmRESULTANT FORCE300KN
LAYERSLAYERSROPE LENGTH400M*2
GROOVE TYPELEBUSTHE DIRECTIONRIGHT AND LEFT
NUMBER OF GROOVES25*2OVERALL DIMENSIONS2000*1500*1500MM
SECURITY LAYER2.5 LAYERSWEIGHT3.5T
