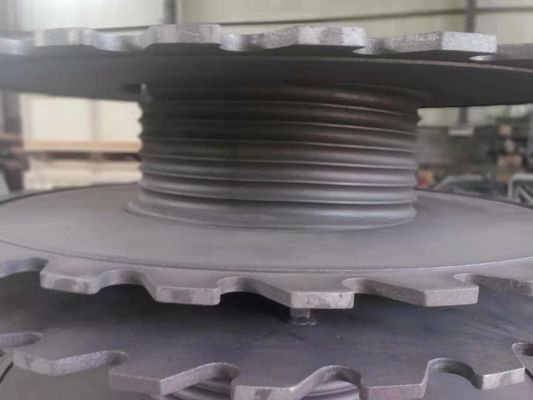

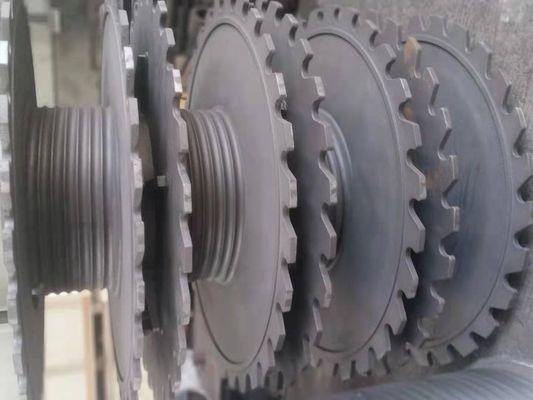

Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine

Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine
Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine

Large Image :  Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Winch Drum Material: Steel Q355B
Core Component: Drum Drum Type: Single Or Double
Surface Color: Gray Structure: Welded
Dia.of Rope: 6mm Layer: 1 Layer
Use: Assembly Winch Rope Capacity: 100m
Highlight:

Steel Q355B Grooved Winch Drum

,

ne Layer Grooved Winch Drum

,

Q355B steel cable drum

Carbon Steel Wire Rope Hoisting Single Model Lebus Grooved Winch Drum





Grooved Winch Drum Introduction

The device comprises a slotted drum body, a rope groove is processed on the slotted drum body, a primary climbing groove and a secondary climbing groove are opened on the slotted drum body, and the climbing angle of the primary climbing groove is from 0 ° to 72 °, The climbing end point of the primary climbing groove is the starting point of the secondary climbing groove. The utility model realizes the avoidance of rope disorder and rope biting of the steel wire rope caused by the welding error, simplifies the processing technology and saves the processing cost. The utility model overcomes the deformation of the existing drum body processed after assembly and welding, resulting in the asymmetry of the centers at both ends of the drum body, At the same time, there are some deficiencies that can not guarantee the thread pitch accuracy and thread surface strength



Service conditions of Lebus groove

1. The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.

2. The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.

3. The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.

4. When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.

5. The rope must be kept round,not loose,even under the maximum load.

6. The rope must be anti-rotation structure.

7. Pls measure the change of rope diameter under different load.



Advance

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement



technical specification

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000





Grooved Winch Drum Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

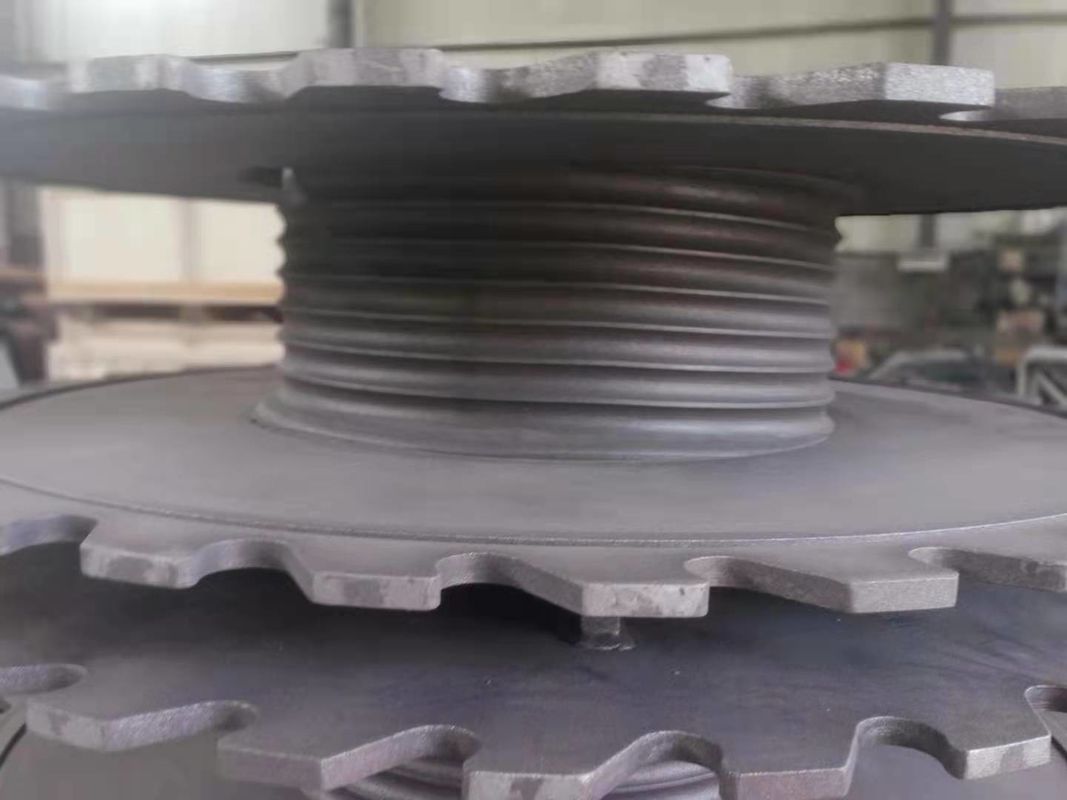

Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine 0

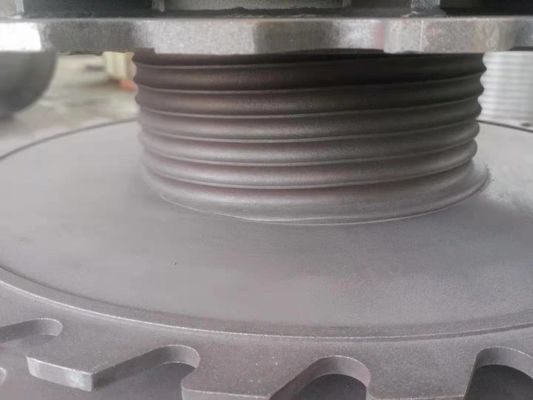

Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine 1

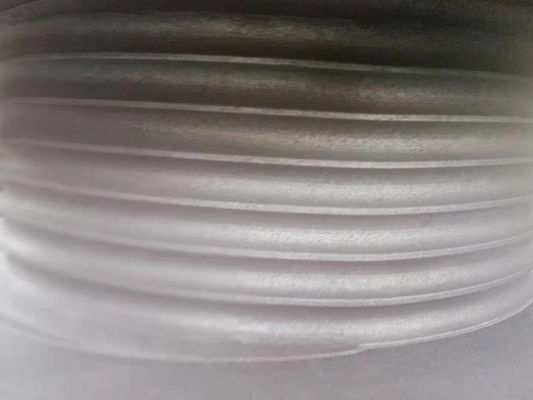

Steel Q355B One Layer Grooved Winch Drum Single Durm For Winch Machine 2
