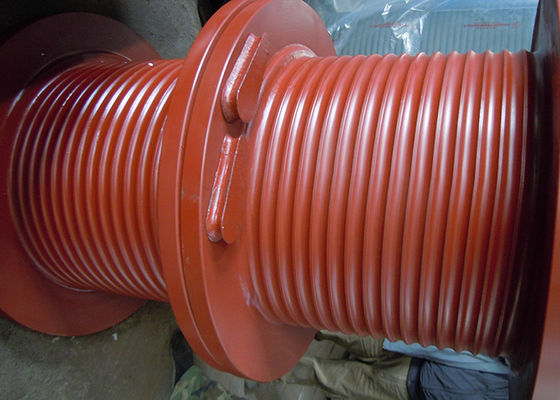

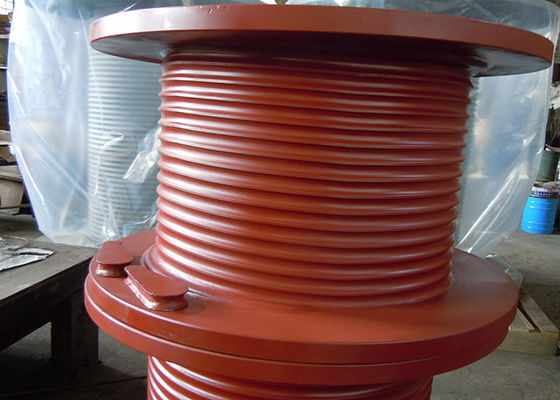

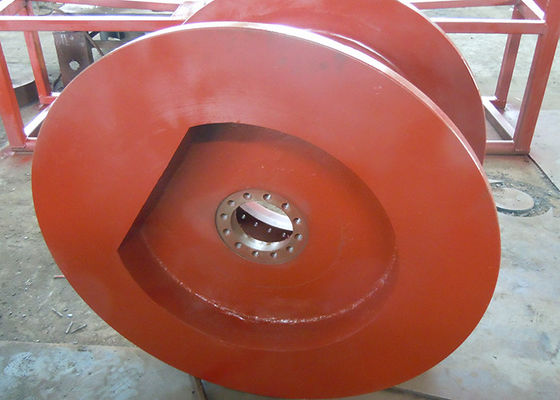

Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch

Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch
Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch

Large Image :  Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Cable Winch Drum Drum Quantity: Single Or Double
Drum Design: LBS Groove Or Spiral Groove Material: Carbon Stainless And Alloy Steels
Size: Customization Application Range: Construction Mining Terminal Operation
Power Source: Construction Mining Terminal Operation Rope Capacity: 100~300M
Rope Diameter: 6mm/8mm/12mm Surface Status: Hot Spray Zinc Or Spray Paint
High Light:

CCS winch spare parts

,

Lebus Grooved drum winch spare parts

,

Lebus Grooved winch barrel

Electric Lebus Grooved Four Drums Cable Winch Drum For Lifting Object



multigang Drum Winch​ Description

Drum is one of the important parts of lifting machinery, used to wind wire rope in lifting mechanism or traction mechanism.By transferring the driving force provided by the hydraulic or electric drive device to the wire rope, the rotary motion of the drive device is transformed into the linear motion required.



Drum Classification

1. According to the number of winding layers:

1) Single winding: Only 1 layer of wire rope is wound on the drum, spiral groove is usually cut on the drum surface.

2) Double windingThe drum is wound with 2 layers of wire rope, spiral grooves or lebus grooves can be used.

3) Multi-winding:Multilayer wire rope winding on the drum, used for particularly large lifting height or compact mechanism occasions, the surface of the drum cutting lebus grooves.

2. According to the processing method:

1) Casting Drum:The casting material is usually cast steel or cast iron.

2) Welding Drum:The drum core is made of seamless pipe or rolled with steel plate, welding flange and drum core, and eliminating welding stress before machining.

3. According to the number of drum segmentation

1) Double winding:Two wire ropes can be wrapped around a drum.The rope can be wound in the same direction or in the opposite direction

2) Multi-winding:The surface of a drum is divided into several drums by baffles, each of which can be used separately for winding rope.

Four drum hoist, four hook hoist. Four wire ropes are fixed on a drum, respectively, from the drum, from the bottom of the drum, when the drum rotates, one lifting container up, the other container down.



Product information

Product name Electric Lebus Grooved Four Drums Cable Winch Drum For Lifting Object
Drum Quantity Double or Four
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric
Rope Capacity 100~300M




Drawing dimensions



Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 0



Drum features:

Processing Equipment: CNC Machining Center

Rotation Direction Of Grooves: Lefthand

Wire Rope Diameter: 3 MM~65 MM

  • Each Layer Laps: 20.5 laps

  • Layer: 5 Layer

  • Rope Groove Type: LEBUS Rope Groove

  • Number Of Ropes: Two

  •

    Our company

    Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the

    hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

    In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the

    company has formed a mature and stable, serialized product production mode.

  •

  •

  • Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 1

Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 2


Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 3



Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 4Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 5Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 6Lebus Grooved Drum Winch Spare Parts CCS Approval For Electric Four Drums Winch 7
