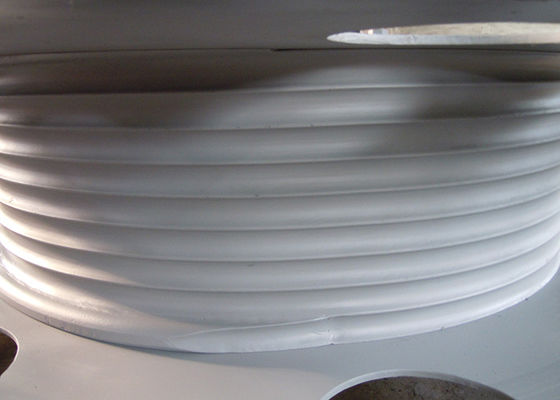

Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction

Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction
Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction

Large Image :  Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Wire Rope Hoist Drum Drum Quantity: Single Or Double
Drum Design: LBS Groove Or Spiral Groove Material: Carbon Stainless And Alloy Steels
Size: Customization Application Range: Construction Mining Terminal Operation
Power Source: Electric Hydraulic Rope Capacity: 100~300M
Rope Diameter: 6mm/8mm/12mm Surface Status: Hot Spray Zinc Or Spray Paint
High Light:

Hot Spray Zinc Cable Winch Drum

,

8mm Cable Winch Drum

,

8mm mooring winch drum

Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction





Classification of winches

1,According to the power winch is divided into pneumatic, manual, electric, hydraulic three types. From the use of the classification can be divided into building winch and Marine winch.

2,According to the function of winch can be divided into: Marine winch, engineering winch, mining winch, cable winch and so on.

3,According to the drum form is divided into single drum and double drum.

4,According to the drum distribution form is divided into parallel double drum and double drum before and after.

5,Special types of winch are: frequency conversion winch, double drum winch, handbrake lever double brake winch, with limit winch, electric control winch, electric control handbrake clutch winch, large double drum double brake winch, large external gear winch, large hydraulic winch, large external gear with rope arrangement winch, double drag winch, Large hydraulic double cylinder double brake winch, frequency conversion belt limiter rope groove winch.

Techinical parameters:
technical parameters
input powerkW JZ05 JZ03 JZ10-2 JZ08-02 JZ02-09 JZ3-2 JZ50D
150 180 400 450 600 735 1100
master rotor Maximum Fast line tension(second floor)kN 80 120 180 210 280 275 340
diameter of the tube body x lengthmm Φ345×590 Φ356×912 Φ450×912 Φ450×912 Φ580×1012 Φ640×1237 Φ685×1138
brake drum (disc) diameter x length (thickness)mm Φ810×210 Φ970×260 Φ1070×310 Φ1070×310 Φ1168×267 Φ1168×265 Φ1600×76
For wire rope diameter mm 22 22 29 29 32 32 35
maximum speed of revolutionrpm 450 450 450 450 450 370 370
brake drum cooling way air cooling air cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling Forced circulating water cooling air cooling


Features of winch

Winch has the following characteristics: high versatility, compact structure, small size, light weight, heavy lifting, easy to use and transfer, is widely used in construction, water conservancy engineering, forestry, mining, wharf and other materials lifting or flat drag, but also can be used as the supporting equipment of modern electronic control automatic operation line. There are 0.5 to 350 tons, divided into fast and slow two kinds. Which is higher than 20 tons for the large tonnage winch, winch can be used alone, can also be used as lifting, road construction and mine lifting machinery components, because of simple operation, large rope, easy to move and widely used. The main technical indicators of winch are rated load, support load, rope speed, rope capacity and so on.



Use of winch

The main uses of the winch are as follows: first, as lifting equipment, it is used for mine lifting, sinking lifting and suspension (lifting) sinking equipment and facilities, that is, along the shaft lifting ore, waste (gangue) stone, lifting personnel, lowering materials, tools and equipment; Second, it is used as transportation equipment for underground scheduling and transportation of ore (harvester), stope rake ore (slag) or filling, removing columns, etc.



Drawing dimensions



Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction 0



Drum features:

Processing Equipment: CNC Machining Center

Rotation Direction Of Grooves: Lefthand

Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Two



Product Equiment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment​



Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction 1Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction 2Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction 3Hot Spray Zinc 8mm Cable Winch Drum With Lebus Grooves For Construction 4
