Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch

Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch
Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch

Large Image :  Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Lebus Grooved Winch Drums Sleeves Material: Steel Q235/Q355B/Q355D/Q355E
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: Gray Connection Type: Welded Or Bolted
Dia.of Rope: 2~80mm Layers: 2~20 Layers
Use: Assembly Winch Grooving Machining: CNC Machining
Highlight:

Welded Lebus Sleeve

,

Q355D steel Lebus Sleeve

,

Q355D steel winch drum sleeve

Cost saving special design not disorderly rope lebus grooved winch drums sleeves



Conditions of use of LEBUS rope trough

With the gradually widespread use of high lift winch, it is more and more common to use LEBUS rope groove drum to solve the multi-layer winding problem of wire rope. In order to better design LEBUS rope groove drum, play the advantages of the product itself, you must understand the specific applicable conditions of LEBUS rope groove drum.

1. The flange of the drum must remain perpendicular to the wall of the drum under all conditions, even under load.

2, in order to avoid the phenomenon of wire rope hopping or derailment, leBUS rope groove drum wire rope must maintain enough tension to make the wire rope can always be close to the surface of the rope groove, when this condition is not met, the wire rope press roller should be added.

3, the rope deflection Angle should be kept at about 1° and the maximum is not more than 1.5°. If this condition cannot be met, the rope deflection Angle compensator must be used to correct it.

When the wire rope released from the LEbus rope groove drum is wound around the fixed pulley, the center of the fixed pulley must be aligned with the width between the flange of the drum, and the LEbus rope groove drum must maintain its unlooseness and round shape even under the maximum load.



Lebus rope groove

Lebus rope groove is originated in the United States, invented by Frank.L. Lebus, the founder of LEBUS International Co., LTD. Abroad, this kind of rope groove is generally called LEbus Grooves, that is, for many rope grooves,

It is commonly known as the folding rope groove in China. Lebus claims that the diameter of the wire rope using the folding rope groove can be 100mm from 1mmDAO. The number of layers can reach 50 layers, the maximum diameter of the drum can reach 5m, the linear speed of the wire rope can be unlimited.

According to the existing data, the maximum diameter of the wire rope is 94RAM, used in Japan (sound Maru) ship's 500T crane, the nominal diameter of the drum is 2094mm, the drum flange spacing is 1953mm, a total of 7 layers of winding.



lebus groove sleeves

For efficiency and cost saving, the polymer drum leather developed and produced by our company adopts linear structural material with molecular weight of more than 1.5 million (the molecular weight of ordinary material is only 200,000 ~ 300,000) to process LEBUS rope groove, which is closely connected with the drum by spiral thread

High molecular weight, impact resistance, low temperature resistance, self-lubrication, absorption of impact energy and other comprehensive characteristics. Polymer drum skin, mainly supporting imported drum and domestic large, super large drum drum hoist, prevent wire rope extrusion or bite wire rope damage, so that the wire rope can smooth transition between the layers



Product Introduction

Materials of the sleeves: Low-carbon steel 20#,16Mn,Q235B,Q355B/D/E

The use the sleeves: Welded or bolted to the smooth drum core of the winch
Rotation direction of the sleeves: Left or Right
Processing equipment: CNC machining center
Working environment: Indoor, outdoor, rain and dust environment
Working altitude: No more than 2000M
Working Temperature: -40~+50 CentigradWelded or bolted to the smooth drum core of the winch



Product information
The name
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch

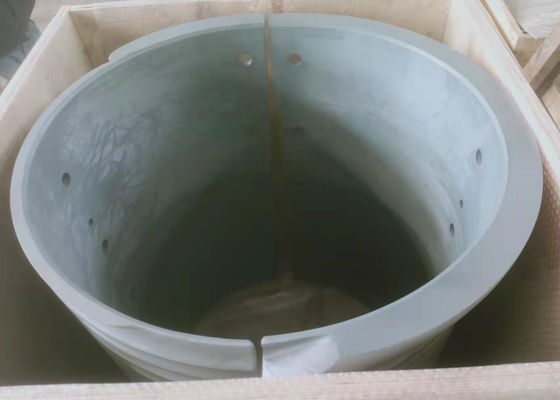

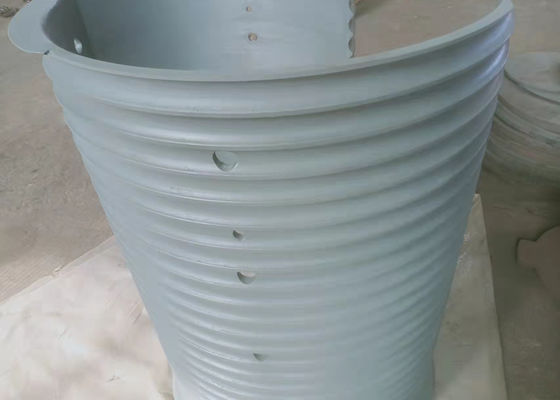

Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch 0Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch 1

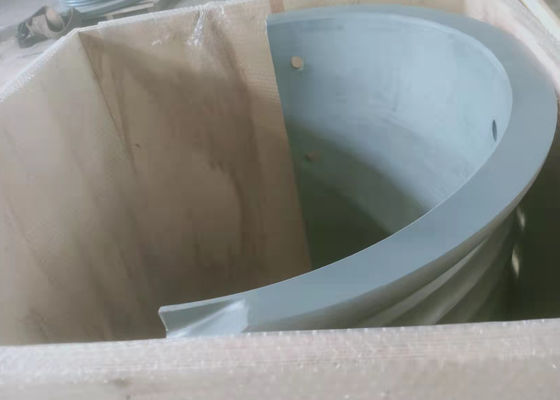

Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch 2

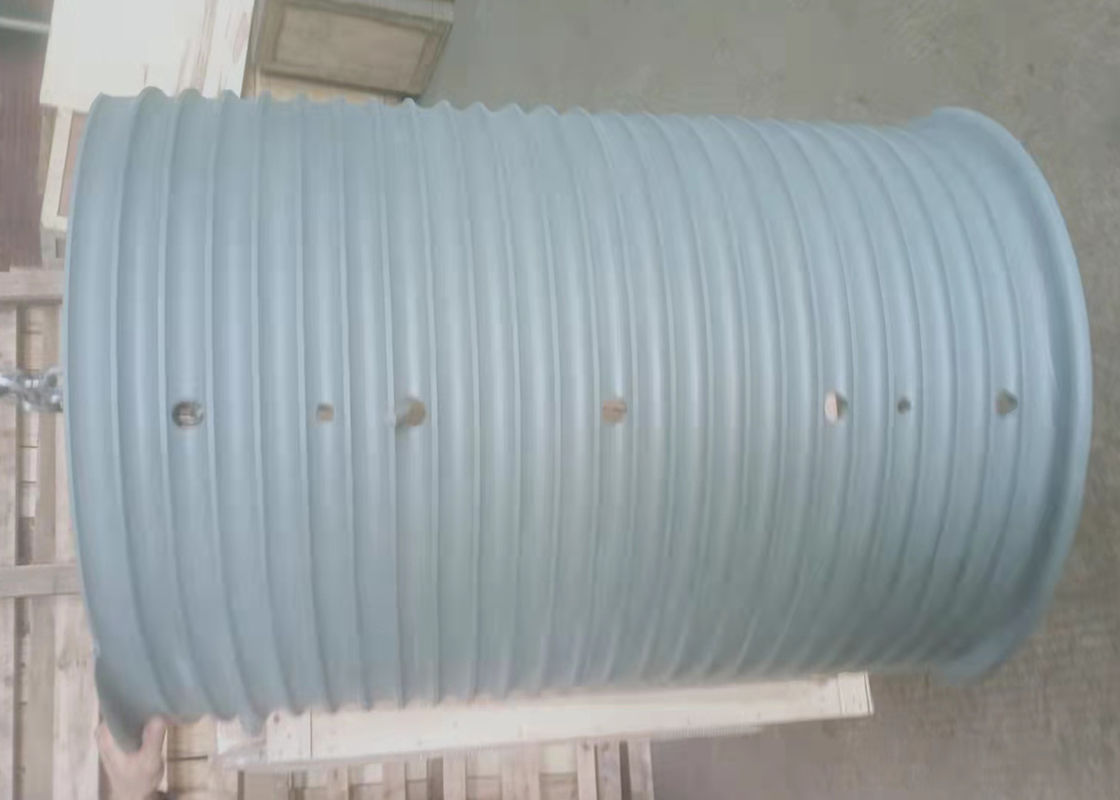

Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch 3

Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch 4

Q355D Steel Welded Lebus Sleeve High Capacity For Assembly Winch 5
