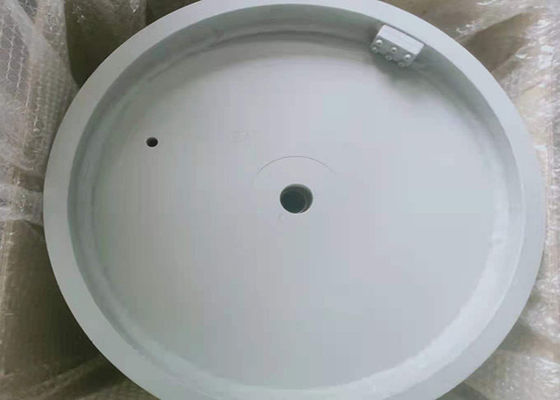

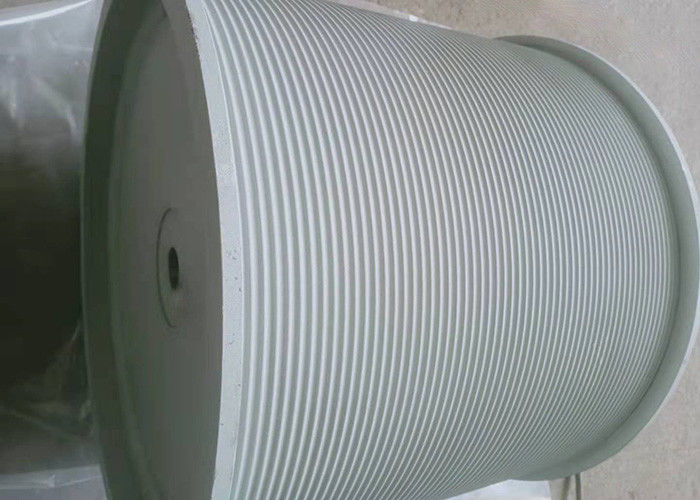

400KN Metal Cable Drum

400KN Metal Cable Drum
400KN Metal Cable Drum 400KN Metal Cable Drum 400KN Metal Cable Drum

Large Image :  400KN Metal Cable Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: 6mm Wire Rope Grooved Winch Drum Material: Q355B
Groove Type: Spiral Grooves Surface Treatment: Hot Spray Zinc
Surface Color: Gray Structure: Welded
Dia.of Rope: 6mm Layer: 1 Layer
Use: Assembly Winch Rope Capacity: 30m
High Light:

400KN Metal Cable Drum


Q355B metal cable drum

Offshore Oil Operation Positioning Platforms 400KN Positioning Grooved Winch Drum



Hoist winch

Electric winch can be vertical lift, horizontal or tilt pull heavy objects. Electric winch consists of motor, coupling, brake, gear box and drum. They are installed together on the rack. Wire rope, electric control box, hook drum and so on can be added as required


The role of winch in offshore oil operations

In the process of drilling, the drilling tool is suspended and sent into the drill string and drill bit to control the weight on bit.

Drilling tools and casing are run in tripping operation

The cat head mechanism of the winch is used to tighten and unload the drill wire to lift heavy objects.


Parameters as follows

Rated load is 400KN (heavy load), 200KN (light load); Rated speed 0-7.5m/min (heavy load), 0-15m/min (light load), rope capacity for 49m.


Product information

The name Offshore Oil Operation Positioning Platforms 400KN Positioning Grooved Winch Drum
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm



Technical Parameters

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000


structure drawing

400KN Metal Cable Drum 0


Information required for quotation

In order to provide accurate quotation for LBS rope groove drum, the user shall provide the following parameters:

1. Company Name:

2. Contact person:

3. Contact Information: Mobile phone:

4. Email Address:

5. Drum diameter: mm

6. Width between flannels: mm

7. Diameter of wire rope or cable: mm

8. Reel material and requirements:

9. Maximum rope capacity of wire rope or cable: M

10. Position Angle of reel and fixed pulley:

11. Entry direction of wire rope or cable (LBS rope groove rotation) : left: right:

12. Flange diameter: mm

Maximum working load of wire rope or cable:

14. Whether to provide detailed drum drawings:

15. Rope way, through the flange or through the main barrel:

16. Other information and requirements:


Our Service

All products purchased in our company are guaranteed to keep in good repair for one year.

If quality problems happen in guarantee period, our company will maintain for free.

a. Before sending the machine, we will test and adjust, so you can use directly when you get it.

b. Operation video & instruction will be sent to clients, to help them use the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we

will solve your problems in time.

If you are caught in some problems when using our products, welcome to contact us at any time.

a. Any problems occur while using, professional advice will be offered.

b. All kinds of frequently used parts are supplied all the year round.
