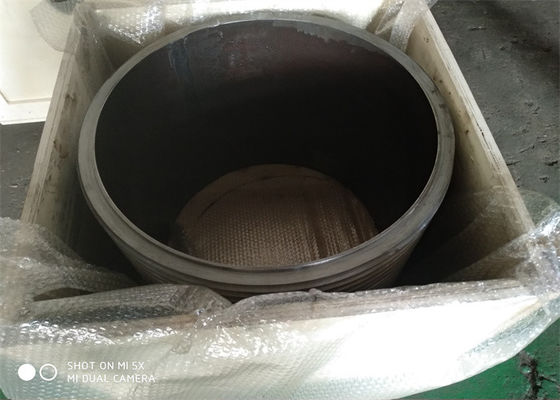

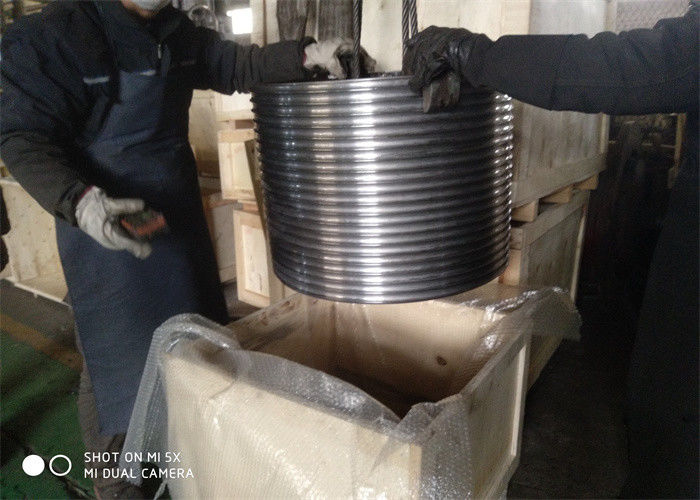

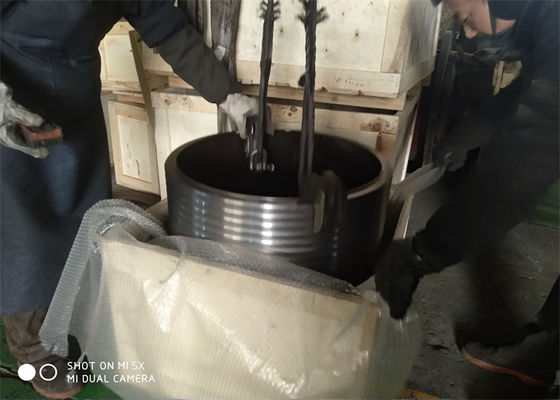

Grooved Lebus Sleeve

Grooved Lebus Sleeve
Grooved Lebus Sleeve Grooved Lebus Sleeve Grooved Lebus Sleeve

Large Image :  Grooved Lebus Sleeve

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Q235/Q355B/Q355D/Q355E Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Surface Color: Gray
Connection Type: Welded Or Bolted Dia. Of Rope: 2~80mm
Layes: 20 Layes Used: Assembly Hoist
Grooving Machine: CNC Machining Warranty: 1 Year
High Light:

Grooved Lebus Sleeve

,

customized lebus sleeve

Mining Equipment Alloy Steel Wrie Rope Hoist Lebus Grooved Drum Sleeves



Technical Parameters

No:
Wire diameter(mm)
Pulling Force(KN)
Rotation Direction
Drum Diameter(mm)
Drum Length(mm)
1
3~8

3~10
Lefthand,Righthand
>160
<1000
2
10~16

12~20
Lefthand,Righthand
>320
<1000
3
18~24

20~80
Lefthand,Righthand
>480
<1000
4
26~32

100~120
Lefthand,Righthand
>640
<1000
5
34~40

150~200
Lefthand,Righthand
>800
<1000
6
42~50

240~400
Lefthand,Righthand
>1000
<1000


Service conditions of Lebus groove

1. The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.

2. The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.

3. The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.

4. When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.

5. The rope must be kept round,not loose,even under the maximum load.

6. The rope must be anti-rotation structure.

7. Pls measure the change of rope diameter under different load.



Our Service

All products purchased in our company are guaranteed to keep in good repair for one year.

If quality problems happen in guarantee period, our company will maintain for free.

a. Before sending the machine, we will test and adjust, so you can use directly when you get it.

b. Operation video & instruction will be sent to clients, to help them use the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we

will solve your problems in time.

If you are caught in some problems when using our products, welcome to contact us at any time.

a. Any problems occur while using, professional advice will be offered.

b. All kinds of frequently used parts are supplied all the year round.



lebus Grooved Drums Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine



FAQ

Q1: What are the payment terms?

A: We usually accept payment by T/T, L/C, Western Union or paypal.



Q2 : Can any of the products be custom imprinted?

A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.



Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?

A: We are certification company, and we support payment terms like L/C, Escrow, to ensure your safety.



Q4: How to ensure that I received the machine undamaged?

A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!



Q5: Where will the orders be shipped from?

A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.



Q6. how long is the machine making time?

--- For small grooved drum sleeves , which making time is about 5-7 days after receiving your deposit.

--- For some big size grooved drum sleeves , which making time is about 10-15 days after receiving your deposit.



Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,
In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.
