Little Size Winch Drive Gearbox, Hydraulic Hoisting Reducer

1.Product Description

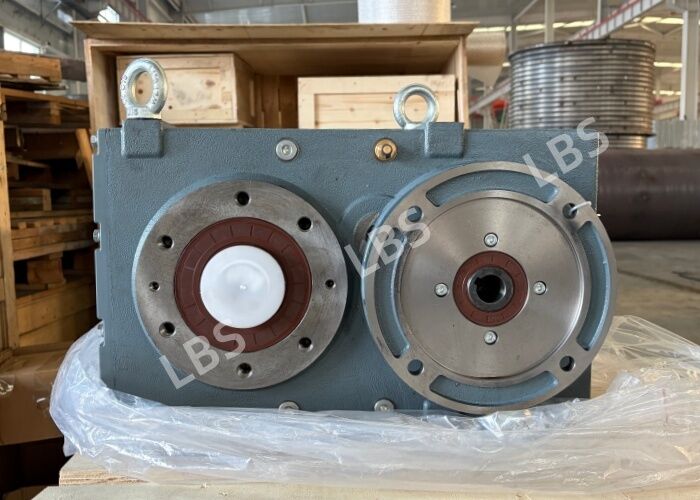

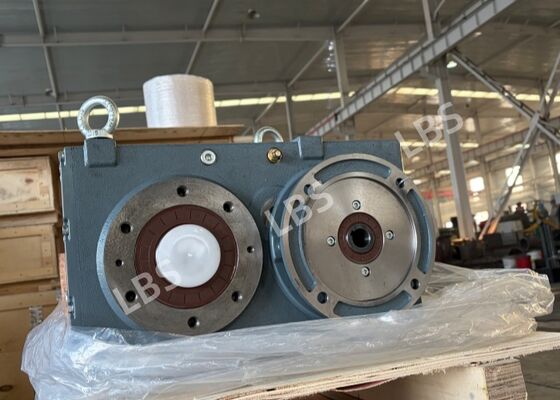

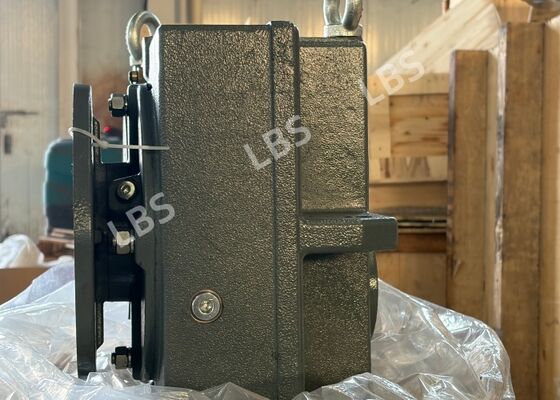

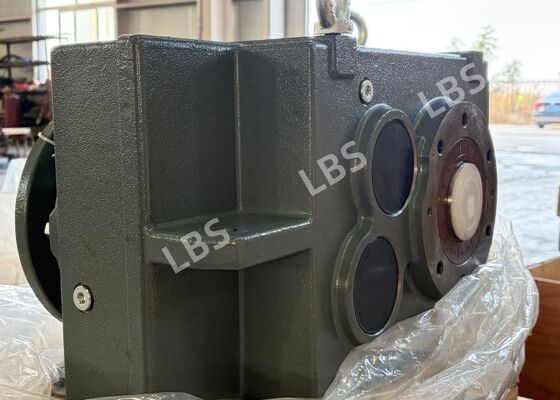

This winch drive gearbox is a compact planetary drive unit specially designed for hydraulic winch hoisting systems. It is matched with a 5.5kW /1500rpm hydraulic motor and equipped with an integrated static disk brake for load holding and safety protection.
The motor connection plate can be detached during installation onto the frame for easier assembly. It features front-side oil filling and drain ports for convenient lubrication maintenance. This unit supports disconnection function to realize free towing. It is shipped without lubricant, only finished with white primer without top coat. The operating oil temperature range is -20℃ ~ +85℃, adopting ISO VG220 gear oil. It is engineered to bear high radial load on the wheel mounting face and provides stable, reliable power transmission for lifting & pulling operations under heavy working conditions.

2.Product Parameter

3.Product Advantage

1. Integrated Safety Brake: Built-in static disk brake reliably holds load and prevents accidental slipping during hoisting.
2. High Radial Load Capacity: Reinforced bearing structure supports heavy radial force on the drum mounting face, long service life under rated condition.
3. Modular & Detachable Structure: The motor connection plate can be removed for flexible frame mounting; disengage design allows free towing.
4. Easy Maintenance: Independent oil filling plug and oil drain plug on the front side for fast oil inspection and replacement.
5. Wide Temperature Adaptation: Stable performance from -20℃ to +85℃, suitable for harsh outdoor and marine working environments.
6. Compact Layout: Integrated winch drive design saves installation space, easy to match with standard hydraulic winch drums.

4.Application

This hydraulic winch drive gearbox is widely used for lifting, pulling and mooring operations. It is commonly fitted on marine offshore winches, construction hoisting equipment, crane auxiliary winches, recovery winches and other heavy-duty hydraulic lifting systems. It can serve offshore platforms, port machinery, engineering vehicles and other fields that require stable hoisting power and safety braking.
