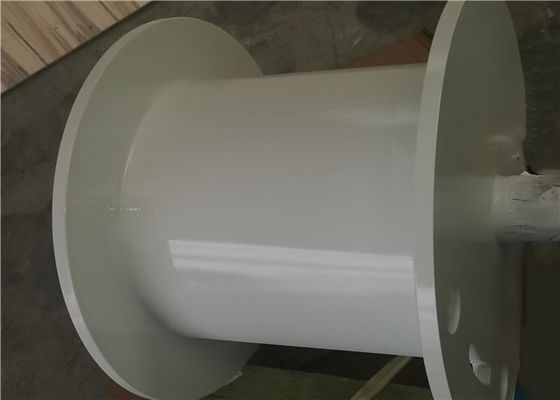

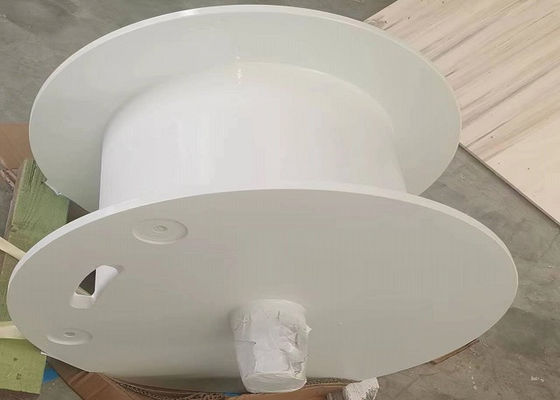

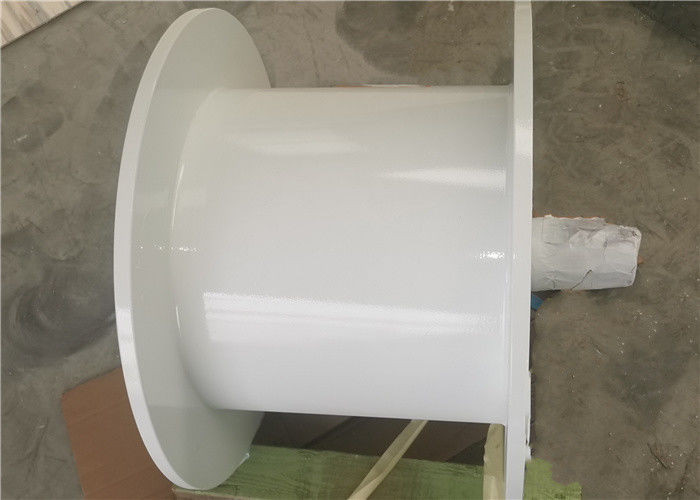

Q355D Marine Crane Fiting Cable Winding Drum 546mm Covered With Zinc And Paint

Q355D Marine Crane Fiting Cable Winding Drum 546mm Covered With Zinc And Paint
Q355D Marine Crane Fiting Cable Winding Drum 546mm Covered With Zinc And Paint Q355D Marine Crane Fiting Cable Winding Drum 546mm Covered With Zinc And Paint Q355D Marine Crane Fiting Cable Winding Drum 546mm Covered With Zinc And Paint

Large Image :  Q355D Marine Crane Fiting Cable Winding Drum 546mm Covered With Zinc And Paint

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: Non-standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Name: Marine Crane Fiting Cable Winding Drum Covered Standard: NS-ISO 13920BF
Corlor: Interthane 990 Blue White Application Range: Marine Crane
Diameter1: 546mm Diameter 2: 1700mm
High: 600 Weight: 1102kg
Surface General: Ra 6.3 Processing Mode: Welding And Maching
Highlight:

Q355D Cable Winding Drum

,

Cable Winding Drum 546mm

,

cable winding drum 546mm

Q355D Marine Crane Fiting Cable Winding Drum Covered With Zinc And Paint

Product feature

Product name: Q355D Marine Crane Fiting Cable Winding Drum Covered With Zinc And Paint

Other name: Marine Winch drum.

Standard: NS-ISO 13920BF

Sling type: cable or wire

power: Electirc

colourInerthane 990 Blue white

Rope: 100-1000mm

Rope diameter: 3-199mm

Weight: 1102kg

Tolerance General: NS-ISO 2768mK

Surface treatment: Hot spray zinc + primer + top coat



Our company mainly serves lifting machinery, marine machinery, petroleum machinery, water conservancy machinery, We can produce winches and all steel parts for winches.



Structural composition
Q/TY ITEM DESCRIPTION TECHNICAL DESCRIPTION MATERIAL MASS
1 1 Plate PL25 S355J2+N 17.23KG
2 2 Plate PL20 S355J2+N 319.22KG
1 3 Plate PL20 S355J2+N 29.83KG
2 4 Plate PL15 S355J2+N 87.67KG
4 5 Plate PL15 S355J2+N 1.21KG
1 6 Plate PL15 S355J2H+N 21.74KG
1 7 Tube circular Ø546×Ø506×L790 S355J2+N 205.22KG
1 8 Bar circular Ø16×L100 S355J2+N 0.13KG
1 9 Bar circular Ø120×L230 S355J2+N 20.16KG



Welding requirement

No parts shall be let un-welded unless clearly tsated on the drawing, for efiocient and easy access it is recommended that sharp edges (that are not to be welded) are rounded to minimum R2.5 before assembling parts.



Finishing requirement

To ensure sufficient adhession for surface treatment all sarp edges shall be rounded to minimum R2.5, welding spatter beadsd and slag shall be completely removed, damaging in surfaces shall be filed and grinded flush, negative thickness measurements are prohibited.



Techinical parameters

Test temperature and charpy V-notch impact energy shall be in accoradance with DNV lifting appliances No.2.22. values for plates in primary and essential welded steel structure is listed in table below:

Yield stress Re(MPa) Thichness(mm) temp(°C) Impact energy(J)
           355      6< t ≤ 25 0 34
25< t ≤ 50 -20 34
50< t ≤ 70-40 -40 41
70< t ≤ 150 -40 50
            690 6< t ≤ 25 0 46
6< t ≤ 25 -20 46
50< t ≤ 70 -40 46





Our company

Shijiazhuang Junzhong Machinery Manufacturing Co., Ltd. was established in 2010 with a registered capital of 18 million yuan.
The company is a long-term engaged in cable retracting system of scientific and technological production enterprises in the multi-layer winding of wire rope has a profound foundation and production experience.
the company obtained the utility model patent certificate suitable for multi-layer winding lebus groove in2010 and registered the LBS trademark in 2013.
Passed iso9001:2015 quality management system certification in 2017.
In 2018, it passed the GJB9001C-2017 weapon equipment quality management system certification.
In 2019, the company was identified as a science and technology smes in Hebei Province.
In recent years, the company with strong technical strength, advanced production equipment, strict quality control system, achieved rapid development.
