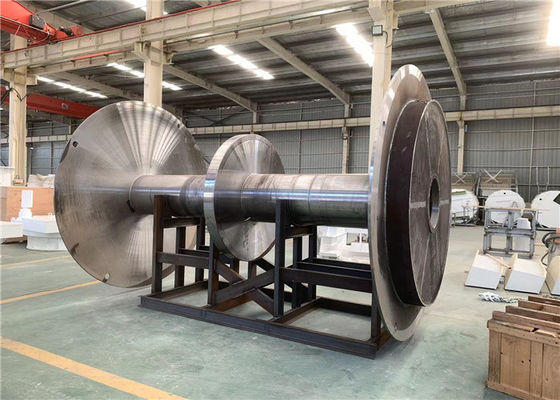

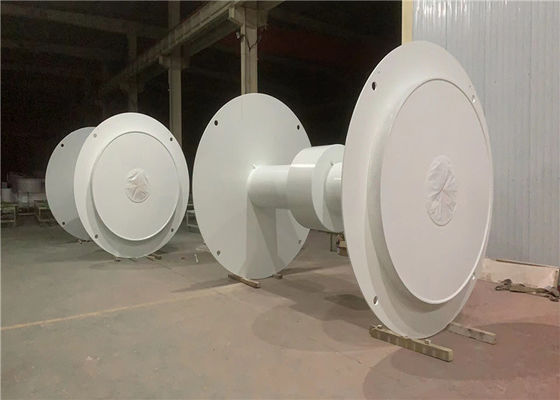

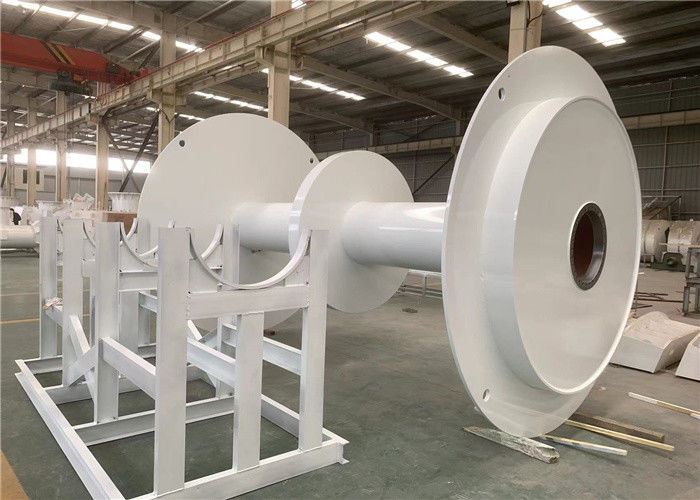

S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch

S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch
S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch

Large Image :  S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: Non-standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: S355J2+N Material Diameter 2960mm Rope Drum For Marine Large Equipment Standard: NS-ISO 2768mK
Corlor: Interthane 990 Blue White Application Range: Marine Winch
Diameter: 2960mm Material: S355J2+N
Packing: Steel Pallet Weight: 8649kg
Lenght: 4000mm Surface General: Ra6.3
High Light:

2960mm Rope Drum

,

2960mm winch drum

,

Marine Winch Rope Drum

S355J2+N Material Diameter 2960mm Rope Drum For Marine Large Equipment

Product feature:

Product name: S355J2+N Material Diameter 2960mm Rope Drum For Marine Large Equipment

Other name: Winch drum

Standard: NS-ISO 13768mK

Sling type: cable or wire

power: Electirc

colour: Blue white

Rope: 100-1000mm

Rope diameter: 3-199mm

Tolerance General: NS-ISO 13768mK



Our company mainly serves lifting machinery, marine machinery, petroleum machinery, water conservancy machinery, We can produce winches and all steel parts for winches.



Structural composition
Q/TY ITEM DESCRIPTION TECHNICAL DESCRIPTION MATERIAL MASS
1 1 Plate PL30 S355J2+N 12.11KG
1 2 Plate PL25 S355J2+N 1281.01KG
1 3 Plate PL25 S355J2+N 1278.71KG
1 4 Plate PL20 S355J2+N 519.77KG
1 5 Plate PL20 S355J2+N 483.92KG
1 6 Plate PL20 S355J2+N 322.17KG
2 7 Plate PL20 S355J2+N 216.29KG
1 8 Plate PL15 S355J2+N 10.46KG
1 9 Plate PL15 S355J2+N 23.96KG
1 10 Plate PL15 S355J2+N 16.1KG
6 11 Plate PL15 S355J2+N 7.53KG
1 12 Plate PL15 S355J2+N 237.56KG
11 13 Plate PL15 S355J2+N 14.68KG
1 14 Plate PL10 S355J2+N 51.41KG
1 15 Tube,Circular 660*520*4460 S355J2H+N 4548.39KG
2 16 Bar,Circular   S355J2+N 0.79KG





Advantage and main feature

1. Top quality with competitive price.

2. Widely used in factory, mining, shipyard or double beam cranes.

3. Compact structure and reasonable design.

4. Easy to install, operate and maintenance.

5. Low noise and good working condition.

6. Safe and reliable function.



Preparation and cutting of steel

Cutting and beveling of materials shall be carried out by thermal cutting or machining.
Thermally cut edges shall be ground to sound metal before welding.
All sharp edges, corners and Curing Zone must be rounded to R=2.5mm.
Stainless steel shall by ground, and then acid treated and cleaned before use.



Welding requirement

Welding spatter, beads and slag should be completely removed. Surface damage is filled and grinded flush.



Techinical parameters:

Test temperature and charpy V-notch impact energy shall be in accoradance with DNV lifting appliances No.2.22. values for plates in primary and essential welded steel structure is listed in table below:

Yield stress Re(MPa) Thichness(mm) temp(°C) Impact energy(J)
           355      6< t ≤ 25 0 34
25< t ≤ 50 -20 34
50< t ≤ 70-40 -40 41
70< t ≤ 150 -40 50
            690 6< t ≤ 25 0 46
6< t ≤ 25 -20 46
50< t ≤ 70 -40 46



S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch 0S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch 1S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch 2S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch 3





S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch 4



S355J2+N Material Diameter 2960mm Rope Drum For Marine Winch 5
