Product Name: | Material Q355B Distance Ring For Marine Winch Spooling Device Roller | Standard: | NS-ISO 2768mK |
---|---|---|---|
Surface General: | Ra3.2 | Application Range: | Marine Winch |
Power Source: | Electric | Material: | 1.4404 Stainless Steel |
Packing: | Fumigation-free Pallet | Weight: | 13.65kg |
Machining: | All Machining | ||
Highlight: | Marine Winch parts 1.4404,Marine Winch parts Protection Cover,Non Rusting Marine Winch Parts |

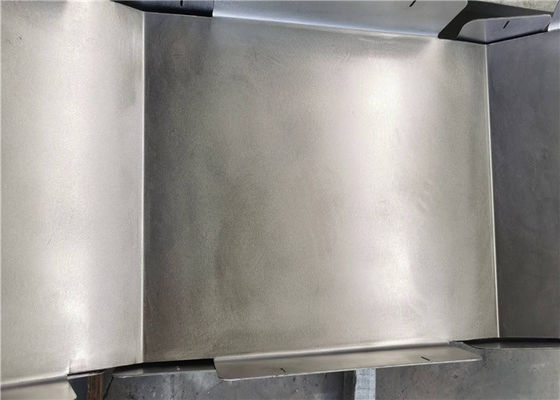

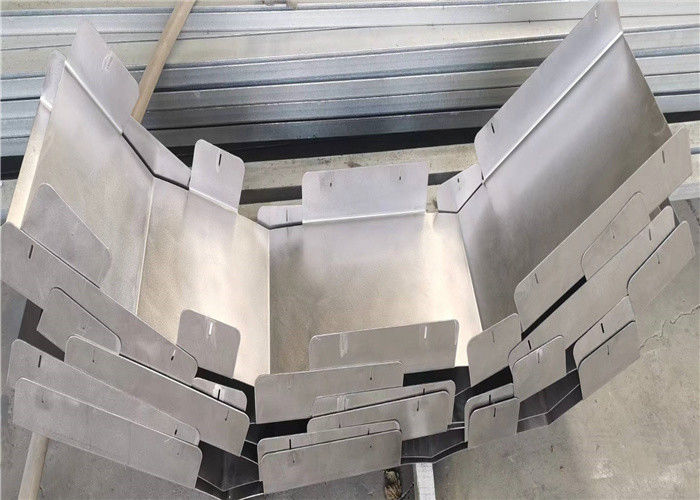

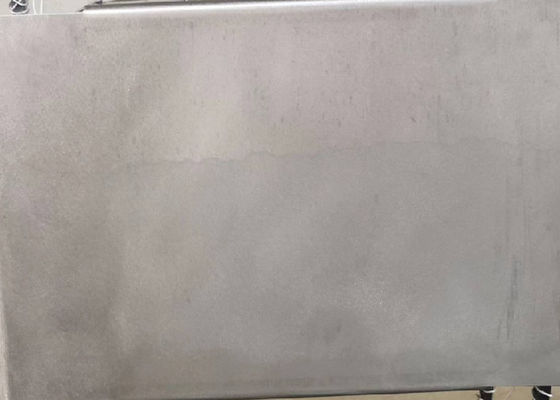

Product name: Material 1.4404 Protection Cover for Large Quipment Marine Winch Process of Passivation
Other name: Protection Cover
Standard: NS-ISO 2768mK
Sling type: cable or wire
power: Electirc
colour: Passivation
Rope: 100-1000mm
Rope diameter: 3-199mm
Tolerance General: Ns-iso 2768mK
Our company mainly serves lifting machinery, marine machinery, petroleum machinery, water conservancy machinery, We can produce winches and all steel parts for winches.
1. Top quality with competitive price.
2. Widely used in factory, mining, shipyard or double beam cranes.
3. Compact structure and reasonable design.
4. Easy to install, operate and maintenance.
5. Low noise and good working condition.
6. Safe and reliable function.
Cutting and beveling of materials shall be carried out by thermal cutting or machining.
Thermally cut edges shall be ground to sound metal before welding.
All sharp edges, corners and Curing Zone must be rounded to R=2.5mm.
Stainless steel shall by ground, and then acid treated and cleaned before use.
Test temperature and charpy V-notch impact energy shall be in accoradance with DNV lifting appliances No.2.22. Values for plates in primary and essential welded steel structure is listed in table below:
Yield stress Re(MPa) | Thichness(mm) | temp(°C) | Impact energy(J) |
355 | 6< t ≤ 25 | 0 | 34 |
25< t ≤ 50 | -20 | 34 | |
50< t ≤ 70-40 | -40 | 41 | |
70< t ≤ 150 | -40 | 50 | |
690 | 6< t ≤ 25 | 0 | 46 |
6< t ≤ 25 | -20 | 46 | |
50< t ≤ 70 | -40 | 46 |
