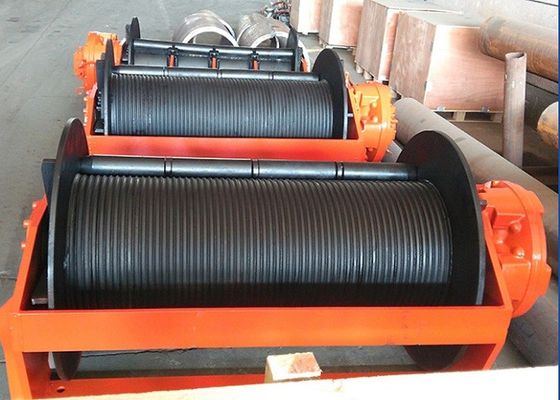

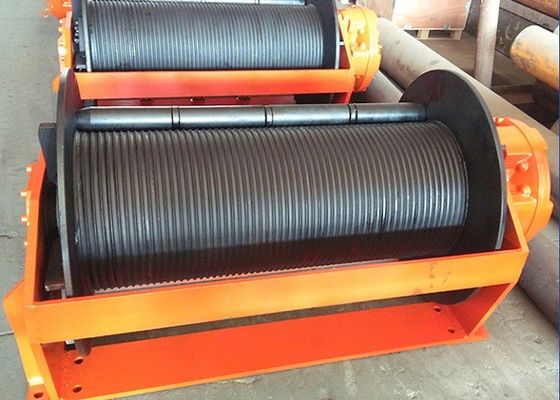

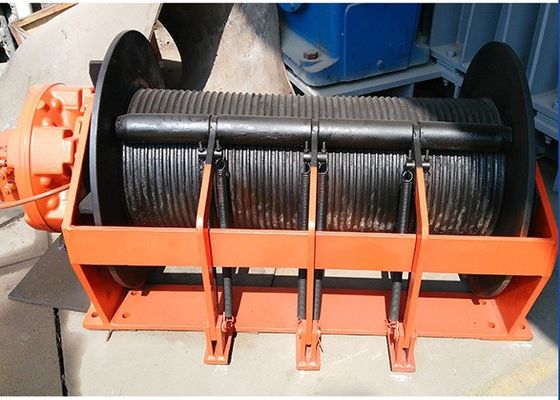

Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting

Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting
Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting

Large Image :  Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: Non-standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Electric Winch With LEBUS Groove For Marine Material: Q355B Q355D
Drum Quantity: 2 Or 4 Diameter Of Main Drum: 2200mm
Drum Design: Lebus Grooved Rope Capacity: 1100m
Lifting Capacity: 1050T Power Source: Electric
Rope Layers: 11 Motor Quantity: 6
High Light:

lebus grooves hydraulic winch

,

10 ton hydraulic winch

,

marine lifting hydraulic winch

Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting

Product feature

Product name: Costomized Lebus Grooves 10 Ton Ship Fishing Winch Hydraulic For Marine Lifting

other name: Electric Marine winch

Drum design: Lebus grooved

Sling type: Wire rope

power: Electirc

Rope capacity: 1000m

Rope diameter: 20mm

colour: customer



Product Structure

Groove Drum Composition: Drum core, Flanges, Shaft, Etc.
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Our Services

a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum).
b.One year of warranty.
c.The engineer can provide overseas service.
d.Quick and responsible after-sales service.
e.Very competitive price.
f.Before sending the goods, we will test and adjust, so you can use directly when you get it.
g.Operation video & instruction will be sent to clients, to help them use the sleeves better. Additionally, our company provides technical support and fittings for life.
h.Any problems occur while using, professional advice will be offered.
i.All kinds of frequently used parts are supplied all the year round.



Techinical parameters



Technical Parameters of LBS-J Slow Speed Electric Winch
Model Rated Rated Rope Rope Motor Motor Overall Overall
load speed capacity diameter type power Dimensions weight
  KN m/min m mm   KW mm KG
LBS-J1 10 15 100 9.3 Y112M-6 3 620x701x417 270
LBS-J1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
LBS-J2 20 16 150 13 Y160M-6 7.5 945x996x570 550
LBS-J3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
LBS-J3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
LBS-J5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
LBS-J5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
LBS-J5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
LBS-J5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
LBS-J5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
LBS-J6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
LBS-J8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
LBS-J8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
LBS-J10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
LBS-J10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
LBS-J12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
LBS-J13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
LBS-J16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
LBS-J20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
LBS-J25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
LBS-J32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000



Technical Parameters of LBS-Z High-Speed Electric Winch
Model Rated Rated Rope Rope Motor Motor Overall Overall
load speed capacity diameter type power Dimensions weight
  KN m/min m mm   KW mm KG
LBS-Z0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
LBS-Z1 10 22 100 9.3 Y112M-4 4 620x701x417 300
LBS-Z1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
LBS-Z2 20 24 150 13 Y132M-4 7.5 945x996x570 550
LBS-Z3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
LBS-Z3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
LBS-Z5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
LBS-Z5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
LBS-Z8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
LBS-Z10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100



Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting 0Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting 1Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting 2Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting 3Costomized Lebus Grooves Hydraulic Winch For 10 Ton Ship Fishing In Marine Lifting 4
