Product Details:
Payment & Shipping Terms:
|
| Product Name: | Multi-Motor Electric Marine Winch | Material: | Steel Q355B Q355D |
|---|---|---|---|
| Drum Quantity: | Multi | Diameter Of Main Drum: | 2m |
| Drum Design: | Lebus Grooved | Rope Capacity: | 1000m |
| Lifting Capacity: | 1000T | Power Source: | Electric Multi-Motor |
| Application Range: | Offshore | Packing: | Fumigation-free Pallet |
| Highlight: | multi motor electric marine winch,wind turbine platform electric marine winch,multi motor electric winch for boat |
||

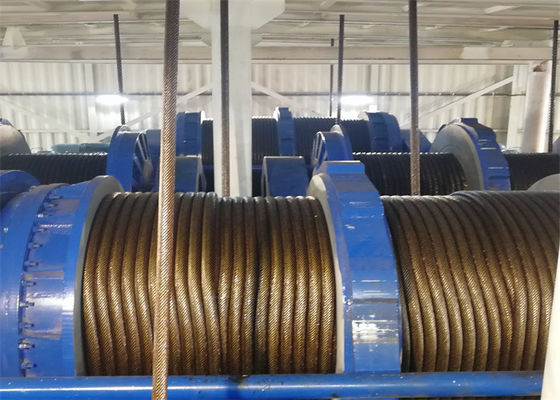

Product name:Multi-Motor Electric Marine Winch For Wind Turbine Installation Platform
other name:Electric Marine winch
Drum design:Lebus grooved
Sling type:Wire rope
power: Electirc
colour : Blue or customer
Rope capacity : 1000m
Rope diameter: 60mm
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
1. Rope can move at its design special groove track making the rope smoothly on-off the drum
2. will not exsit the lower layer rope being crushed or pinched by up layer problem
3. load even distribution
4. Prevent cross &mess in cable rolling working happening
5. Lower the cable damage, extend the cable life
| Technical Parameters of LBS-J Slow Speed Electric Winch | ||||||||
| Model | Rated | Rated | Rope | Rope | Motor | Motor | Overall | Overall |
| load | speed | capacity | diameter | type | power | Dimensions | weight | |
| KN | m/min | m | mm | KW | mm | KG | ||
| LBS-J1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| LBS-J1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| LBS-J2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| LBS-J3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| LBS-J3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| LBS-J5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| LBS-J5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| LBS-J5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| LBS-J5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| LBS-J5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| LBS-J6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| LBS-J8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| LBS-J8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| LBS-J10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| LBS-J10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| LBS-J12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| LBS-J13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| LBS-J16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| LBS-J20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| LBS-J25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| LBS-J32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameters of LBS-Z High-Speed Electric Winch | ||||||||
| Model | Rated | Rated | Rope | Rope | Motor | Motor | Overall | Overall |
| load | speed | capacity | diameter | type | power | Dimensions | weight | |
| KN | m/min | m | mm | KW | mm | KG | ||
| LBS-Z0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| LBS-Z1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| LBS-Z1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| LBS-Z2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| LBS-Z3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| LBS-Z3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| LBS-Z5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| LBS-Z5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| LBS-Z8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| LBS-Z10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
