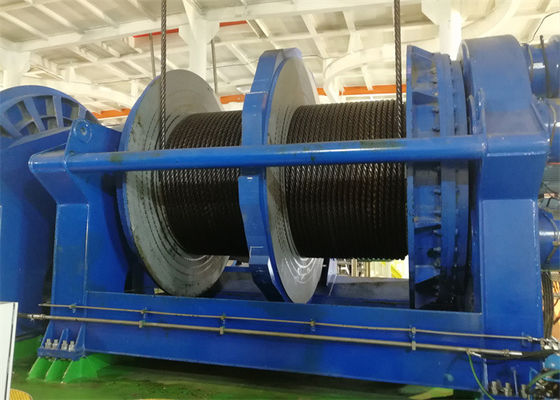

1000t Large Power Electric Marine Winch With Lebus Grooved Drum

1000t Large Power Electric Marine Winch With Lebus Grooved Drum
1000t Large Power Electric Marine Winch With Lebus Grooved Drum 1000t Large Power Electric Marine Winch With Lebus Grooved Drum

Large Image :  1000t Large Power Electric Marine Winch With Lebus Grooved Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: Non-standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: 1000T Large Power Electric Winch Drum Quantity: Multi
Drum Design: LBS Groove Material: Steel
Size: Customization Application Range: Shipyard Oil Mining
Power Source: Electric Capacity: 1000T
Packing: Fumigation-free Pallet Condition: New
High Light:

loading 1000t electric marine winch

,

lebus grooved drum electric marine winch

,

large power electric winch for boat

1000T Large Power Electric Winch With Lebus Drum For Marine

Product feature

Product name:Loading 1000T Large Power Electric Winch With Lebus Grooved Drum For Marine

other name:Electric Marine winch

Drum design:Lebus grooved

Sling type:cable or wire

power:  Electirc

colour : Blue or customer

Rope: 100-1000mm

Rope diameter: 3-199mm



Electric winch

Electric winch or windlass is a kind of widely used machine in lifting machinery field.

It's widely used in industrial and mining, metallurgy, hoist construction, chemical, road and bridge, dock, oil industry ect. It has been a necessary machine in construction site and port pier.

It not only can be used independently, but also can work with other large-scale and complex machine.

We can provide different kinds electric winches to meet your indeed needs:

JK Series electronic control high speed winch

JM Series electronic control slow speed winch

JM Series electronic control slow speed large tonnage winch

JKL Series hand control high speed free rolling winch

JKD Series new type winch etc.

Besides these, we can provide many other electric winches, such as ship use winch, metallurgy winch and so on.



Lebus drum advantage

1. Rope can move at its design special groove track making the rope smoothly on-off the drum

2. will not exsit the lower layer rope being crushed or pinched by up layer problem

3. load even distribution

4. Prevent cross &mess in cable rolling working happening

5. Lower the cable damage, extend the cable life





Techinical parameters



Technical Parameters of LBS-J Slow Speed Electric Winch
Model Rated Rated Rope Rope Motor Motor Overall Overall
load speed capacity diameter type power Dimensions weight
  KN m/min m mm   KW mm KG
LBS-J1 10 15 100 9.3 Y112M-6 3 620x701x417 270
LBS-J1.6 16 16 150 12.5 Y132M-6 5.5 945x996x570 500
LBS-J2 20 16 150 13 Y160M-6 7.5 945x996x570 550
LBS-J3.2 32 9.5 150 15.5 YZR160M-6 7.5 1430x1160x910 1100
LBS-J3.2B 32 12 195 15.5 YZR160M-6 7.5 1082x1014x610 536
LBS-J5 50 10 270 21.5 YZR160L-6 11 1235x1230x805 1560
LBS-J5B 50 9.5 200 21.5 YZR160L-6 11 1620x1260x945 1800
LBS-J5C 50 9.5 250 21.5 YZR160L-6 11 1235x1230x805 1800
LBS-J5D 50 15 250 21.5 YZR180L-6 15 1235x1230x805 1850
LBS-J5E 50 20 250 21.5 YZR200L-6 22 1235x1230x805 2000
LBS-J6 60 9.5 270 24 YZR180L-6 15 1235x1509x805 1800
LBS-J8 80 8 250 26 YZR180L-6 15 2090x1475x956 2900
LBS-J8B 80 9.5 350 26 YZR180L-6 15 1075x1598x985 2650
LBS-J10 100 8 170 30 YZR200L-6 22 2090x1475x956 3000
LBS-J10B 100 9.5 250 30 YZR200L-6 22 1705x2200x985 3500
LBS-J12.5 125 8 300 34 YZR225M-6 30 2880x2200x1550 5000
LBS-J13.5 135 0-5 290 28 YZR225S-8 22 2990x2363x1650 6500
LBS-J16 160 10 500 37 YZR250M2-8 37 3750x2400x1850 8800
LBS-J20 200 10 600 43 YZR280S-8 45 3950x2560x1950 9900
LBS-J25 225 9 700 48 YZR280M-8 55 4350x2800x2030 13500
LBS-J32 320 9 700 56 YZR135S-8 75 4500x2850x2100 14800
JM50 500 9 800 65 YZR315M-8 90 4930x3050x2250 19500
JM65 650 10.5 3600 64 LA8315-8AB 160 5900x4680x3200 46000



Technical Parameters of LBS-Z High-Speed Electric Winch
Model Rated Rated Rope Rope Motor Motor Overall Overall
load speed capacity diameter type power Dimensions weight
  KN m/min m mm   KW mm KG
LBS-Z0.5 5 22 190 7.7 Y100L-4 3 620x701x417 200
LBS-Z1 10 22 100 9.3 Y112M-4 4 620x701x417 300
LBS-Z1.6 16 24 150 12.5 Y132S-4 5.5 945x996x570 500
LBS-Z2 20 24 150 13 Y132M-4 7.5 945x996x570 550
LBS-Z3.2 32 25 290 15.5 YZR180L-6 15 1325x1335x840 1011
LBS-Z3.2B 32 30 250 15.5 YZR200L-6 22 1900x1738x985 1500
LBS-Z5 50 30 300 21.5 YZR225M-6 30 1900x1620x985 2050
LBS-Z5B 50 25 210 21.5 YZR225M-8 22 2250x2250x1300 2264
LBS-Z8 80 25 160 26 YZR280S-8 45 1533x1985x1045 3000
LBS-Z10 100 30 300 30 YZR315S-8 55 2250x2500x1300 5100





1000t Large Power Electric Marine Winch With Lebus Grooved Drum 01000t Large Power Electric Marine Winch With Lebus Grooved Drum 1

1000t Large Power Electric Marine Winch With Lebus Grooved Drum 2

1000t Large Power Electric Marine Winch With Lebus Grooved Drum 3
