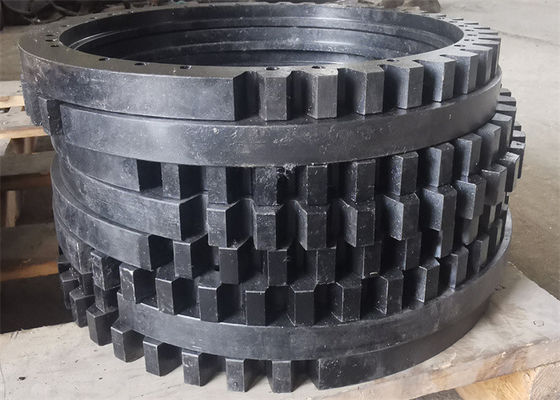

Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized

Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized
Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized

Large Image :  Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ccs
Model Number: CUSTOMIZABLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Spur Tooth Worm Gear, Anti-Static Nylon Material Material: Nylon Plastic
Model Number: Can Be Customized Warranty: 24 Months
Module: 5-20 Application:: Agricultural Machinery
High Light:

non standard toothed gear wheel

,

antistatic toothed gear wheel

,

nylon non standard teeth gear wheel

Non-Standard Spur Tooth Worm Gear, Anti-Static Nylon Material, Can Be Customized

Worm gear

Worm gear mechanisms are often used to transmit motion and power between two staggered shafts. The worm wheel and the worm are equivalent to the gear and the rack in their mid-plane, and the worm is similar in shape to the screw. If you want to get a larger gear reduction ratio, you need to use a worm gear. The gear reduction ratio of a worm gear is generally 20:1, sometimes as high as 300:1 or more.



Features of worm gears

1. The transmission efficiency is low and the wear is more serious. When the worm gear is engaged in the transmission, the relative sliding speed between the meshing gear teeth is large, so the friction loss is large and the efficiency is low. On the other hand, the relative sliding speed causes serious wear and heat generation on the tooth surface. In order to dissipate heat and reduce wear, more expensive materials with good anti-friction and anti-wear properties and good lubricating devices are often used, so the cost is high.

2. The axial force of the worm is large.



Overview
Model Spur worm gear
Type Half a circle worm gear
Tooth shape spur/bevel/curve/double gear
Production type

pouing

Wrapped wooden box

Application scope

Agricultural Machinery
Hardness hardening
MOQ

≥10 pieces



product introduce

Machining module 20
Materials:  imported nylon,

Surface treatment: blackening,

high frequency, carburizing and quenching, surface nitriding, etc

Processing equipment: CNC lathes, automatic lathes, general lathes, hobbing machine, gear shaper, gear milling machine, shaving machine, milling machine, grinding machine, wire cutting, etc
Processing technology  hobbing, gear, shaving, milling teeth





Our services

1. Engineers available to service machinery overseas.

2. Our products have one year warranty.

3. A range of accessories such as pressure rollers are available on request.

Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized 0

Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized 1Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized 2Non Standard Spur Toothed Worm Gear Wheel Anti Static Nylon Material Customized 3
