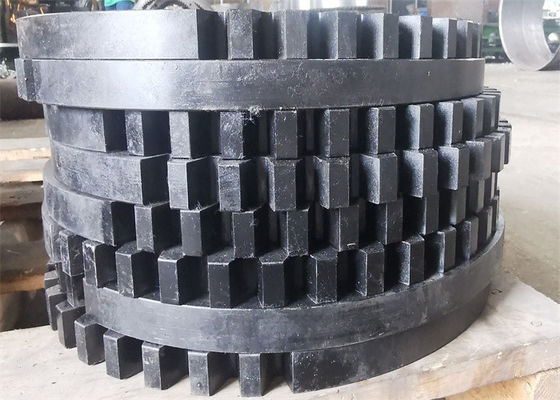

Large Diameter Nylon Plastic Injection Molded Spur Worm Gear

Large Diameter Nylon Plastic Injection Molded Spur Worm Gear
Large Diameter Nylon Plastic Injection Molded Spur Worm Gear Large Diameter Nylon Plastic Injection Molded Spur Worm Gear Large Diameter Nylon Plastic Injection Molded Spur Worm Gear

Large Image :  Large Diameter Nylon Plastic Injection Molded Spur Worm Gear

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ccs
Model Number: CUSTOMIZABLE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 15-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Nylon Plastic Spur Worm Gear Material: Nylon Plastic
Model Number: Non-standard Warranty: 24 Months
Supply Abilitty: 2000sets /per Month Module: Large
High Light:

injection molded spur worm gear

,

nylon spur worm gear

Large Diameter Nylon Plastic Injection Molded Spur Worm Gear

Worm gear

Worm gear mechanisms are often used to transmit motion and power between two staggered shafts. The worm wheel and the worm are equivalent to the gear and the rack in their mid-plane, and the worm is similar in shape to the screw. If you want to get a larger gear reduction ratio, you need to use a worm gear. The gear reduction ratio of a worm gear is generally 20:1, sometimes as high as 300:1 or more.



Features of worm gears

1. A large transmission ratio can be obtained, which is more compact than the staggered shaft helical gear mechanism.

2. There is a line contact between the meshing tooth surfaces of the two wheels, and its bearing capacity is much higher than that of the staggered shaft helical gear mechanism.

3. The worm drive is equivalent to a screw drive, which is a multi-tooth meshing drive, so the drive is stable and the noise is small.

4. It is self-locking. When the lead angle of the worm is less than the equivalent friction angle between the meshing gear teeth, the mechanism has self-locking properties and can achieve reverse self-locking, that is, only the worm can drive the worm, but not the worm. Such as the self-locking worm mechanism used in its heavy machinery, its reverse self-locking can play a role in safety protection.



Overview
Model Spur worm gear
Type Half a circle worm gear
Tooth shape spur / bevel / curve / double gear
Production type

pouring

Wrapped wooden box

Application scope

Agricultural Machinery
Hardness hardening
MOQ

≥10 pieces



product introduce

Machining module 20
Materials:  imported nylon, .

Surface treatment: blackening,

high frequency, carburizing and quenching, surface nitriding, etc

Processing equipment: CNC lathes, automatic lathes, general lathes, hobbing machine, gear shaper, gear milling machine, shaving machine, milling machine, grinding machine, wire cutting, etc
Processing technology  hobbing, gear, shaving, milling teeth



Why choose us

Professional engineer team and sales team

We have a professional team of engineers and sales teams, most of which have more than 10 jobs to experience.

Imported equipment

We have the world's advanced production equipment.

Fast lead time

Small and medium orders can be delivered within 20 days, large orders 30-35 days.

One-stop service

We provide production operations and assembly services.

High quality and factory price

We have ISO9001 international quality management system, as well as China production cost control experience, we can help you save 20%~30% of the production cost.

Good after-sales service

Our after-sales service can be up to three years, customers have more than 15 years of cooperation with us, and received consistent praise.

Large Diameter Nylon Plastic Injection Molded Spur Worm Gear 0



Large Diameter Nylon Plastic Injection Molded Spur Worm Gear 1Large Diameter Nylon Plastic Injection Molded Spur Worm Gear 2Large Diameter Nylon Plastic Injection Molded Spur Worm Gear 3
