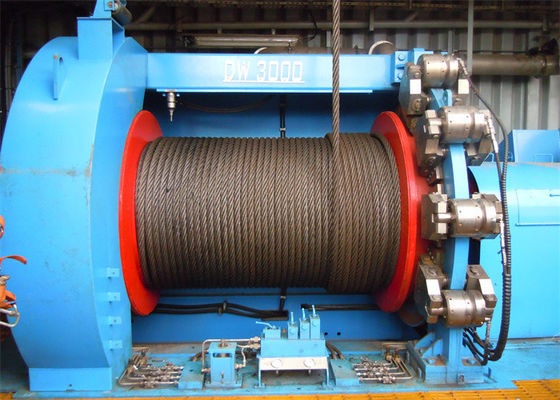

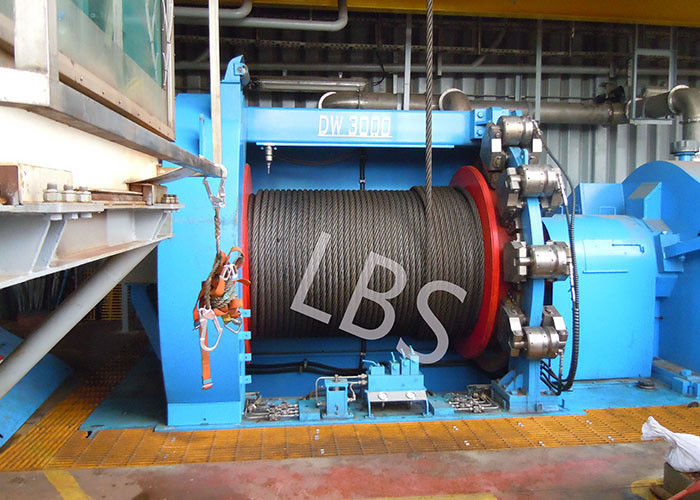

50kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks

50kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks
50kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks 50kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks

Large Image :  50kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 500 Pieces/Sets Per Month
Detailed Product Description
Product Name: Electric Power Winch With Grooves Material: Steel
MOQ: 1 Set Produce Equipment: CNC Center
Material Standard: GB, AISI, ASME Application Range: Shipyard Oil Mining
Hoist Speed: 0.95-1.27m/s Rotate Speed: 720-960 R/min
Rope Diameter: 3-30mm Direction Rotation: Left Or Right
Highlight:

50kn lebus grooved drum

,

rig drawworks lebus grooved drum

,

rig drawworks lebus drum

50KN Electric Rope Winch Lebus Grooved Drum For Rig Drawworks

Product introduce

power

eletric

Rotate speed

720-960 r/min

Rope diameter

3-60mm

Sling type

wire rope

Direction rotation

left or right

Application

Rig Drawworks

Parameter

can be designed

Application

oil drilling,ship.

Drum diameter

80-900mm

Drum width

600-2000mm



Usage: Oil Well
Applicable Industries: Energy & Mining
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product
Warranty of core components: 1 Year
Core Components: Engine, Motor
Condition: New
Type: Rotary Drilling Rig
Power Type: Electric
Place of Origin: China
Brand Name: LBS
Voltage: 380V or 400V
Warranty: 1 Year
Product name: Drilling Rig
Application: Oil Drilling Rig
Carrying Capaty: 1000-9000 meters
KEy words: Drilling Rig/Workover
Product Category: as per customer's requirement
Engine: Electric Or Hydraulic
Meterial: Steel
After-sales Service Provided: Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service
Certification: CCS

Structure form

The winch converts the electric energy into mechanical energy through the motor, that is, the rotor of the motor rotates the output, through the triangle belt, shaft, gear, and then drives the drum to rotate after deceleration. The reel winds the wire rope 7 and passes through the pulley block to make the crane hook lift or drop the load Q, change the mechanical energy into mechanical work, and complete the vertical transport loading and unloading work of the load.

Installation of electric winch

The most important note here is the state of the rope drum, which must be used to ensure that the lasso is evenly wound before the process begins. The installation process is as follows:

1. Plug in the remote control. Connect the distal end of the first plug-in winch.

2. Do not let the remote connection hang. If you are a driver, operate the remote control from the driver's seat and then make additional connections around the side mirrors of the car to make co-working easier.

3. Open the noose, use the remote control to open the noose a bit, and install it on the side of the electric winch.

Turn on the clutch. Please note that we have to open the hook later to open the clutch.

5. Hold the rope hook hand. Grabbing the hook with one hand pulls the rope out of the roller, so no matter how long the rope has been twisted, it doesn't reach the hook.

6. Pull the rope on the pivot and lock the clutch.

So the electric winch is installed.

Precautions for controlling electric winch

In practice, auxiliary tools such as gloves to keep hands safe are essential for safety and stability when using electric winches. Also, if you want to attach the electric winch to a tree and to a rope, hang the U-ear and tight wire pulley. Tape is used to hold the pivot. The ideal length is 1.5-2m. U-lug and belt and electric winch hook can be connected. It is therefore best to prepare lugs of several sizes. With two or three rows, drag to change direction, you need a tight pulley.

Application

a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b,The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc



Working Principle

The motor transmits power to the winding drum wrapped by wire rope through the reducer to lift and lower the container, reduce the speed through electric drive. Disk break is controlled by hydraulic pressure and electric; Position indicator system shows the depth of the container; the control system integrating the motor, electric and hydraulic pressure supervises and protects the whole equipment through a variety of sensors and control elements; Internal and external information transmission is carried out by the computer and the internet technology.



50kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks 050kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks 150kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks 250kn Electric Rope Winch Lebus Grooved Drum For Rig Drawworks 3
