Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Marine Winch | Drum Quantity: | Single Or Mlti |
|---|---|---|---|
| Drum Design: | LBS Groove Or Spiral Groove | Material: | Steel |
| Size: | Customization | Application Range: | Shipyard Oil Mining |
| Power Source: | Hydraulic Or Electric | Capacity: | 500kn |
| Packing: | Fumigation-free Pallet | Condition: | New |
| Highlight: | LBS anchor mooring winch,50KN Anchor Mooring Winch,50KN electric pulling winch |
||

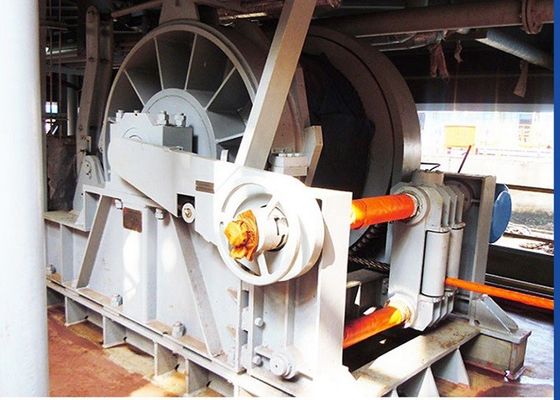

Product name:LBS Groove Electric Marine Winch For Marine Oil Platform Using
other name:Marine Oil Platform winch
Drum design:grooved
Sling type:cable or wire
power: electirc
colour :yellow or customer
Rope: 100-1000mm
Rope diameter:3-199mm
Marine Slipway Winch description:
Slipway winch is designed to move boats to and from the water by the slipway. It is widely used when the boats or vessels need to be carried out for repair or maintenance.
This type of winch is also ideal for launching and retrieving ships and boats.
Our winch for slipway comes in a variety of options: electric and hydraulic slipway winch, single drum and friction type winch.
We also provide the necessary accessories to pull the boat through the slipway: airbags, moving and fixed pulleys, guide wheels, etc.
1. Rope can move at its design special groove track making the rope smoothly on-off the drum
2. will not exsit the lower layer rope being crushed or pinched by up layer problem
3. load even distribution
4. Prevent cross &mess in cable rolling working happening
5. Lower the cable damage, extend the cable life
1. Hydraulic Winch is made up of hydraulic motor, multi-disc friction brake,planet gearbox decelerator,spool and bracker as a whole.
2.There are shuttle valve and balance valve in the lifting weight from dropping, also it can keep the loading and unloading stable.
3. Stepless speed, high starting efficiency, reliable, easy to install and control.
4. It's widely applied in all kinds of crane for railway transport, shipping, mining, port, ect.
| Technical Parameters of LBS-J Slow Speed Electric Winch | ||||||||
| Model | Rated | Rated | Rope | Rope | Motor | Motor | Overall | Overall |
| load | speed | capacity | diameter | type | power | Dimensions | weight | |
| KN | m/min | m | mm | KW | mm | KG | ||
| LBS-J1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| LBS-J1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| LBS-J2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| LBS-J3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| LBS-J3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| LBS-J5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| LBS-J5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| LBS-J5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| LBS-J5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| LBS-J5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| LBS-J6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| LBS-J8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| LBS-J8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| LBS-J10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| LBS-J10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| LBS-J12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| LBS-J13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| LBS-J16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| LBS-J20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| LBS-J25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| LBS-J32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameters of LBS-Z High-Speed Electric Winch | ||||||||
| Model | Rated | Rated | Rope | Rope | Motor | Motor | Overall | Overall |
| load | speed | capacity | diameter | type | power | Dimensions | weight | |
| KN | m/min | m | mm | KW | mm | KG | ||
| LBS-Z0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| LBS-Z1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| LBS-Z1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| LBS-Z2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| LBS-Z3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| LBS-Z3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| LBS-Z5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| LBS-Z5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| LBS-Z8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| LBS-Z10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
